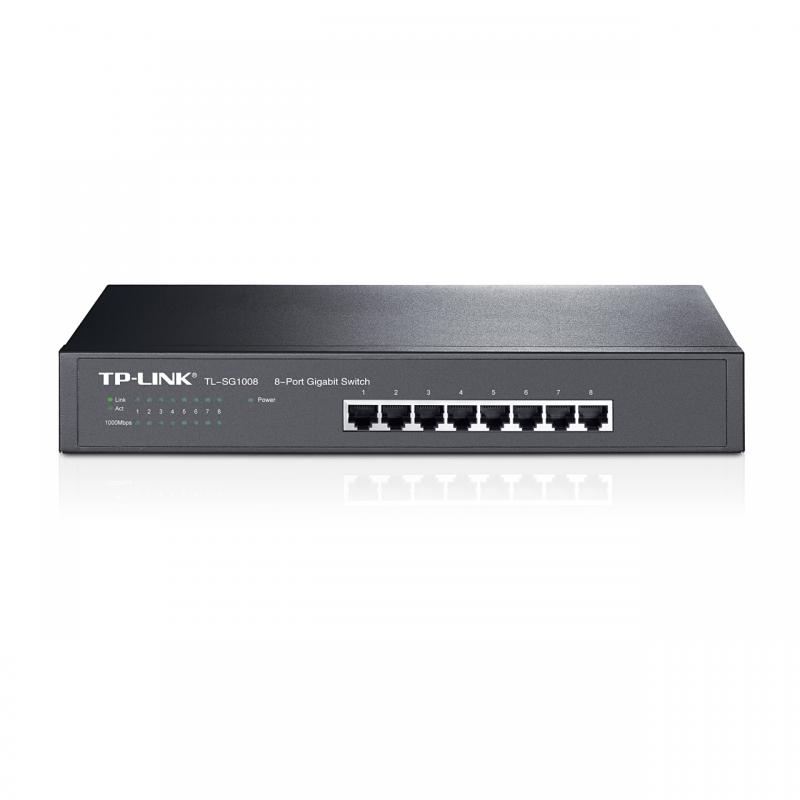

TPL SW 8P-GB UNMNGD DESK/RM

Certification: FCC, CE, RoHS

Maximum data transfer rate: 1 Gbit/s

Jumbo frames support: Yes

Jumbo frames: 16000

Supported data transfer rates: 10/100/1000 Mbps

Store-and-forward: Yes

Switching capacity: 16 Gbit/s

MAC address table: 4000 entries

Rack mounting: Yes

Form factor: 1U

LED indicators: Yes

Input frequency: 50 - 60 Hz

Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x

Flow control support: Yes

Harmonized System (HS) code: 85176990

Switch type: Unmanaged

Auto-negotiation: Yes

Copper ethernet cabling technology: 1000BASE-T, 100BASE-TX, 10BASE-T

10G support: No

Full duplex: Yes

Power over Ethernet (PoE): No

Auto MDI/MDI-X: Yes

Storage relative humidity (H-H): 5 - 90%

Heat dissipation: 14.67 BTU/h

Operating relative humidity (H-H): 10 - 90%

Storage temperature (T-T): -40 - 70 °C

Operating temperature (T-T): 32 - 104 °F

Dimensions (WxDxH): 294 x 180 x 44 mm

Bandwidth: 16 Gbit/s

Networking features: Gigabit Ethernet

Connectivity LEDs: Y

Dimensions (W x D x H) (imperial): 248.9 x 157.5 x 43.2 mm (9.8 x 6.2 x 1.7)

Connectivity technology: Wired

Quick start guide: Yes

Cables included: AC

Package type: Box

Package weight: 1.7 kg

Package depth: 250 mm

Package height: 80 mm

Package width: 400 mm

Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

Installed SFP modules quantity:

Installed SFP+ modules quantity:

Basic switching RJ-45 Ethernet ports quantity: 8

Power supply included: Yes

Power source: AC

AC input voltage: 100 - 240 V

AC input frequency: 50 - 60 Hz

Power consumption (typical): 4.3 W

Supported network protocols: CSMA/CD, TCP/IP

Width: 294 mm

Depth: 180 mm

LAN port type: Gigabit

Garantia Produsului: 60 luni
