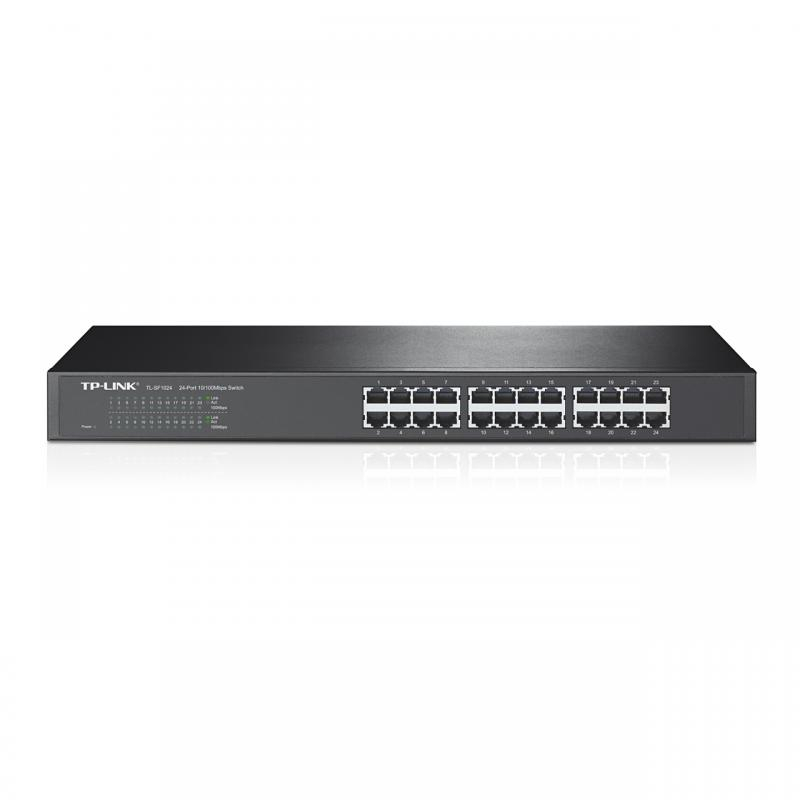

TPL SW 24P-FE UNMNGD RM

Compliance certificates: CE, Federal Communications Commission (FCC), RoHS

Switching capacity: 4.8 Gbit/s

Forwarding rate: 3.57 Mpps

MAC address table: 8000 entries

Packet buffer memory: 2 MB

Store-and-forward: Yes

Stackable: No

Rack mounting: Yes

Form factor: 1U

Housing material: Metal

Ethernet LAN data rates: 10,100 Mbit/s

Flow control support: Yes

Networking standards: IEEE 802.3i, IEEE 802.3u, IEEE 802.3x

Harmonized System (HS) code: 85176990

Switch type: Unmanaged

Cable types supported: Cat3, Cat4, Cat5, Cat5e

10G support: No

Half duplex: Yes

Auto-negotiation: Yes

Power over Ethernet (PoE): No

Auto MDI/MDI-X: Yes

Full duplex: Yes

Copper ethernet cabling technology: 10BASE-T, 100BASE-TX

Operating temperature (T-T): 0 - 40 °C

Heat dissipation: 10.88 BTU/h

Storage temperature (T-T): -40 - 70 °C

Operating relative humidity (H-H): 10 - 90%

Storage relative humidity (H-H): 5 - 90%

Rack mount kit: Yes

Cables included: AC

Package type: Box

Package width: 250 mm

Package depth: 528 mm

Package weight: 2.34 kg

Compatible operating systems: Microsoft Windows 8, 7,Vista, XP, MAC OS, NetWare, UNIX, Linux

Fanless: Yes

Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)

Basic switching RJ-45 Ethernet ports quantity: 24

Power connector: AC-in jack

Installed SFP+ modules quantity:

Installed SFP modules quantity:

Fast Ethernet (copper) ports quantity: 24

Power source: AC

AC input voltage: 100 - 240 V

Power consumption (max): 3.53 W

Power supply included: Yes

Supported network protocols: CSMA/CD, TCP/IP

Sustainability compliance: Yes

Depth: 180 mm

LAN port type: FastEthernet

Garantia Produsului: 36 luni
