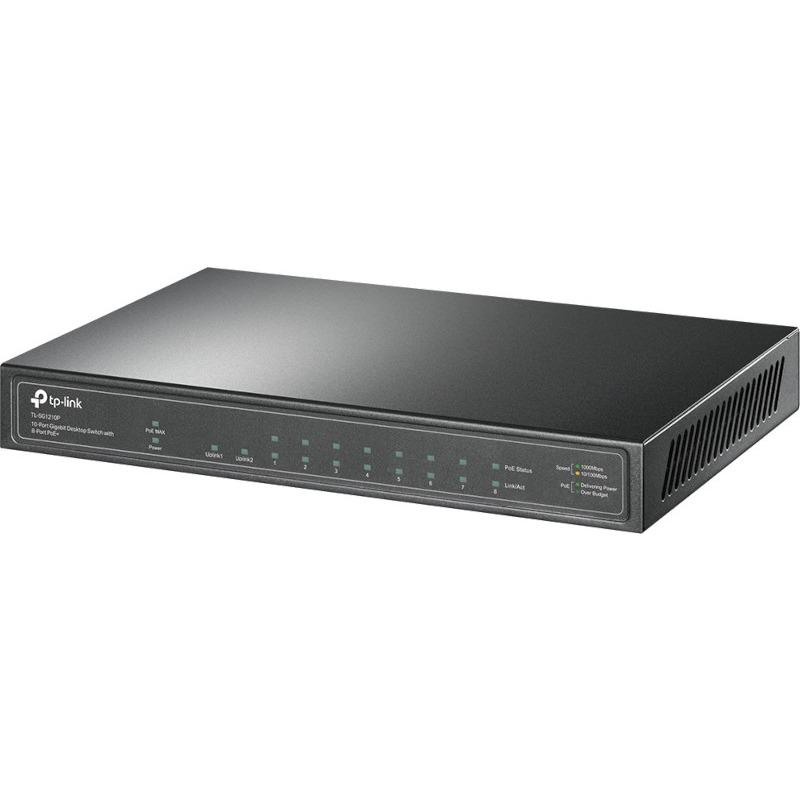

TPL SW 10P-GB 8 POE UNMANAGED SWITCH

Certification: CE, FCC, RoHS

Switching capacity: 20 Gbit/s

Store-and-forward: Yes

MAC address table: 4000 entries

Packet buffer memory: 14.88 MB

Housing material: Metal

LED indicators: Yes

Networking standards: IEEE 802.1p, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x

Quality of Service (QoS) support: Yes

Harmonized System (HS) code: 85176990

Switch type: Unmanaged

Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T

Auto-negotiation: Yes

10G support: No

Auto MDI/MDI-X: Yes

Power over Ethernet (PoE): Yes

MAC address auto-learning supported: Yes

MAC address auto-aging supported: Yes

Heat dissipation: 266.42 BTU/h

Storage relative humidity (H-H): 5 - 90%

Operating relative humidity (H-H): 10 - 90%

Operating temperature (T-T): 0 - 50 °C

Storage temperature (T-T): -40 - 70 °C

Fiber type: Single-mode

Fiber ethernet cabling technology: 1000BASE-X

Quick start guide: Yes

Package weight: 1.24 kg

Package height: 70 mm

Package width: 240 mm

Package depth: 315 mm

Fanless: Yes

SFP module slots quantity: 1

Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

Gigabit Ethernet (copper) ports quantity: 9

Basic switching RJ-45 Ethernet ports quantity: 9

SFP+ module slots quantity: 1

Power source: DC

Power consumption (max): 78.13 W

DC input voltage: 53.5 V

Input current: 1.31 A

Power supply included: Yes

Power over Ethernet plus (PoE+) ports quantity: 8

Total Power over Ethernet (PoE) budget: 63 W

IGMP snooping: Yes

Width: 209 mm

Height: 26 mm

Depth: 126 mm

LAN port type: Gigabit

Garantia Produsului: 60 luni
