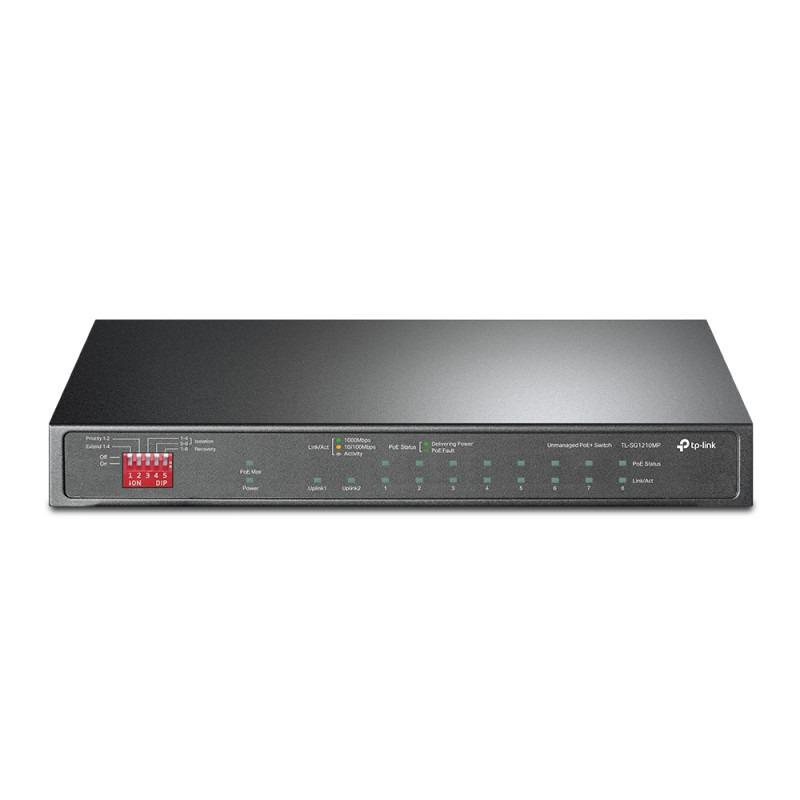

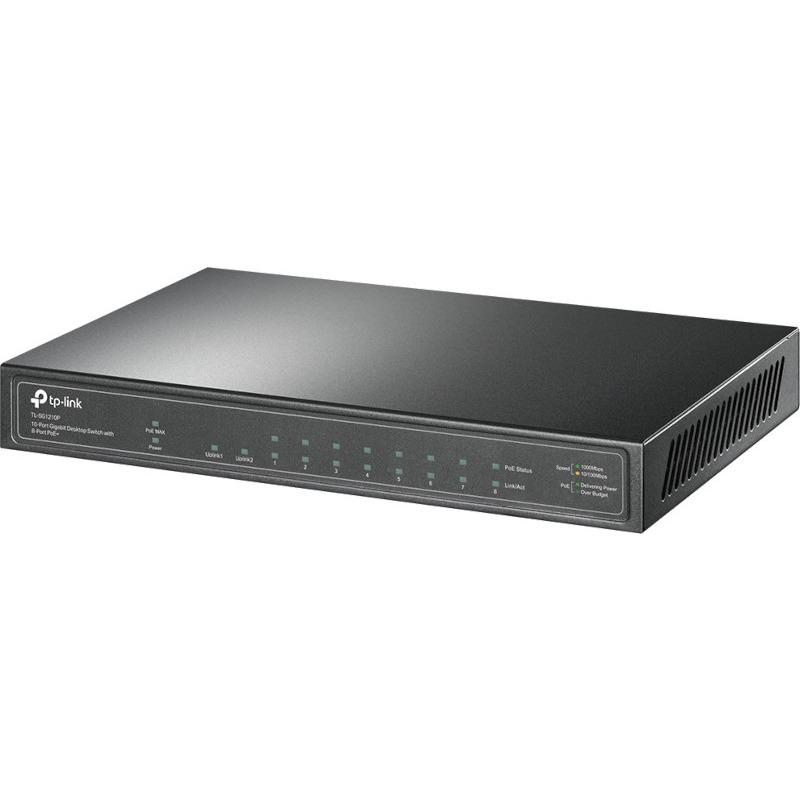

TPL SW 10P-GB 8 POE UNMANAGED SWITCH

Certification: CE, FCC

Switching capacity: 20 Gbit/s

Store-and-forward: Yes

MAC address table: 4000 entries

Packet buffer memory: 14.88 MB

Rack mounting: No

LED indicators: Yes

Flow control support: Yes

Networking standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

Harmonized System (HS) code: 85176990

Switch type: Unmanaged

10G support: No

Auto-negotiation: Yes

Auto MDI/MDI-X: Yes

Power over Ethernet (PoE): Yes

MAC address auto-learning supported: Yes

Copper ethernet cabling technology: 10BASE-T, 100BASE-TX

Cable types supported: Cat3, Cat4, Cat5, Cat5e

MAC address auto-aging supported: Yes

Heat dissipation: 482.17 BTU/h

Operating temperature (T-T): 0 - 40 °C

Storage relative humidity (H-H): 5 - 90%

Storage temperature (T-T): -40 - 70 °C

Operating relative humidity (H-H): 10 - 90%

Quick start guide: Yes

Package weight: 1.41 kg

Package height: 70 mm

Package width: 240 mm

Package depth: 315 mm

Fanless: Yes

Installed SFP modules quantity:

Installed SFP+ modules quantity:

Basic switching RJ-45 Ethernet ports quantity: 9

Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

Combo SFP ports quantity: 1

Input current: 2.43 A

Input voltage: 53.5 V

Power consumption (max): 141.4 W

Power source: DC

Total Power over Ethernet (PoE) budget: 123 W

Power over Ethernet plus (PoE+) ports quantity: 8

Power over Ethernet (PoE) power per port: 30 W

Height: 26 mm

Width: 209 mm

Depth: 126 mm

LAN port type: Gigabit

Garantia Produsului: 60 luni
