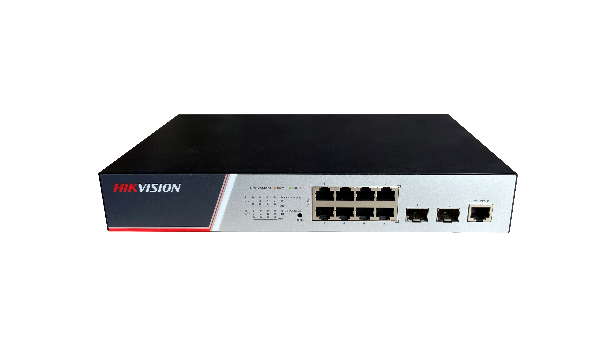

SWITCH DS-3E2510P(B) 336 Gbps

Switch Hikvision DS-3E2510P(B), Switching Capacity 336 Gbps, 8 Gigabit Poe electrical ports and 2 Gigabit / 100M SFP optical ports, Address Table 8 K, Support binding of IP, MAC, port and VLAN, dimensiuni: 280 mm × 44 mm × 180 mm, temperatura de functionare: -10°C to 50°C, greutate:1.2Kg
Garantie: 36 luni


Specificatii tehnice

Montare in rack: Nu
Console port: RJ-45
Management: Da
PoE: Da
Forwarding rate: 28 Mpps
Switching capacity: 33.6 Gbit/s
MAC address table: 8000 entries
Rack mounting: Yes
Housing material: Iron
Networking standards: IEEE 802.1D, IEEE 802.1Qbb, IEEE 802.1af, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w
VLAN support: Yes
Quality of Service (QoS) support: Yes
Flow control support: Yes
Rate limiting: Yes
Web-based management: Yes
Switch type: Managed
Switch layer: L7
MIB support: RMON
Multicast support: Yes
Virtual LAN features: Private VLAN
Security algorithms: 802.1x RADIUS
Link aggregation: Yes
Power over Ethernet (PoE): Yes
Number of VLANs: 4000
10G support: No
Storage relative humidity (H-H): 5 - 95%
Operating temperature (T-T): -10 - 50 °C
Operating relative humidity (H-H): 5 - 95%
Storage temperature (T-T): -40 - 75 °C
Fast Ethernet (copper) ports quantity: 8
SFP+ module slots quantity: 2
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 1
Basic switching RJ-45 Ethernet ports quantity: 8
SFP module slots quantity: 2
Power supply included: Yes
Power source: AC
AC input frequency: 50 Hz
Power consumption (max): 140 W
Total Power over Ethernet (PoE) budget: 130 W
Management protocols: Console, Telnet, SSH2.0, Web SNMP v1/v2/v3 TFTP RMON
GARP VLAN Registration Protocol (GVRP): Yes
IP-MAC-Port binding: Yes
Access Control List (ACL): Yes
Loop protection: Yes
IGMP snooping: Yes
Viteza Transfer: Gigabit
Porturi RJ 45: 8 Gigabit Poe electrical ports
Porturi SFP: 2 Gigabit / 100M SFP optical ports
Depth: 180 mm
Width: 280 mm
Weight: 1.2 kg
