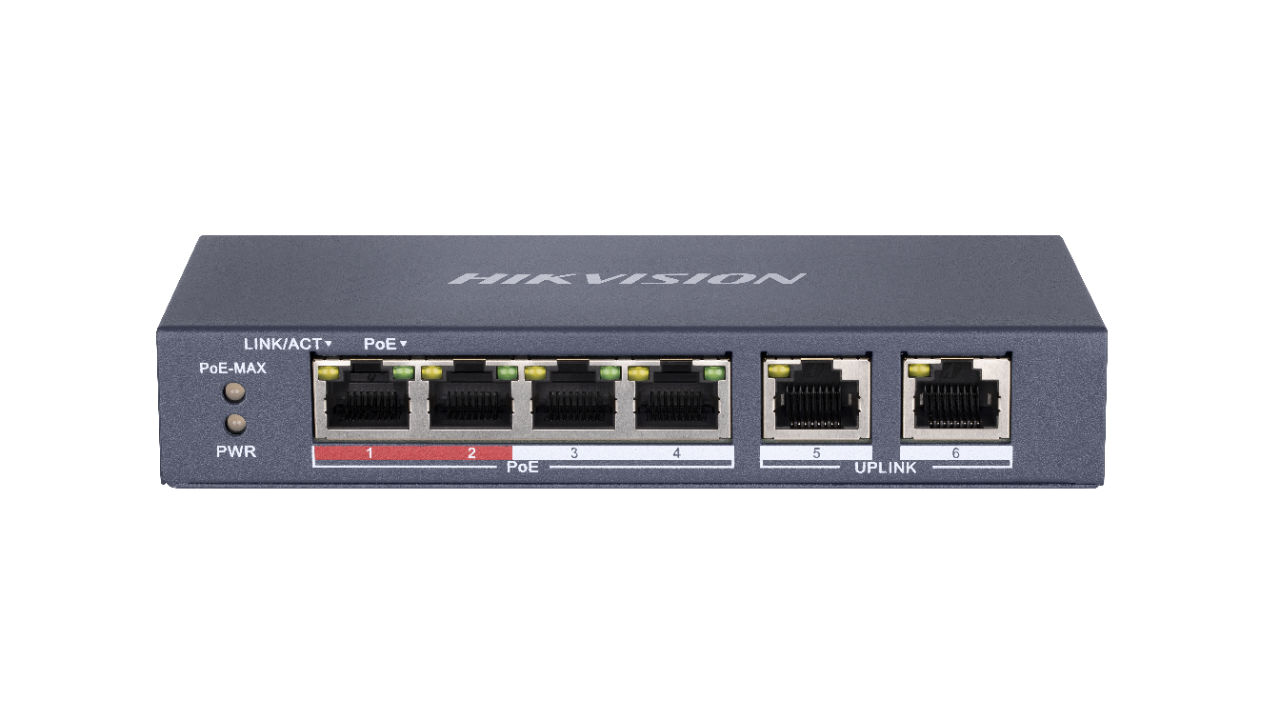

SWITCH DS-3E0106P-E-M

MAC address table: 2000 entries

Store-and-forward: Yes

Switching capacity: 48 Gbit/s

Forwarding rate: 35.712 Mpps

Housing material: Metal

LED indicators: PoE, Power, Link

Networking standards: IEEE 802.3ab, IEEE 802.3bt, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x, IEEE 802.3at, IEEE 802.3z

Harmonized System (HS) code: 85176990

Switch type: Unmanaged

Switch layer: L2

Auto MDI/MDI-X: Yes

10G support: No

Power over Ethernet (PoE): Yes

Full duplex: Yes

Storage temperature (T-T): -40 - 85 °C

Operating temperature (T-T): -30 - 65 °C

Storage relative humidity (H-H): 5 - 95%

Switching optical modules type: Gigabit Ethernet

Package weight: 915 g

Fanless: Yes

Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)

Power over Ethernet (PoE) ports quantity: 4

Gigabit Ethernet (copper) ports quantity: 1

SFP module slots quantity: 1

Installed SFP+ modules quantity:

Installed SFP modules quantity:

Basic switching RJ-45 Ethernet ports quantity: 3

SFP+ module slots quantity: 1

Input current: 1.35 A

Power consumption (max): 65 W

DC input voltage: 48 - 57 V

Power over Ethernet (PoE) power per port: 60 W

Total Power over Ethernet (PoE) budget: 60 W

PoE: Da

Porturi RJ 45: 2

Management: Nu

Porturi SFP: None

Viteza Transfer: Fast Ethernet

Montare in rack: Nu

Height: 101.2 mm

Width: 158 mm

Weight: 350 g

Depth: 31.6 mm

Garantia Produsului: 36 luni
