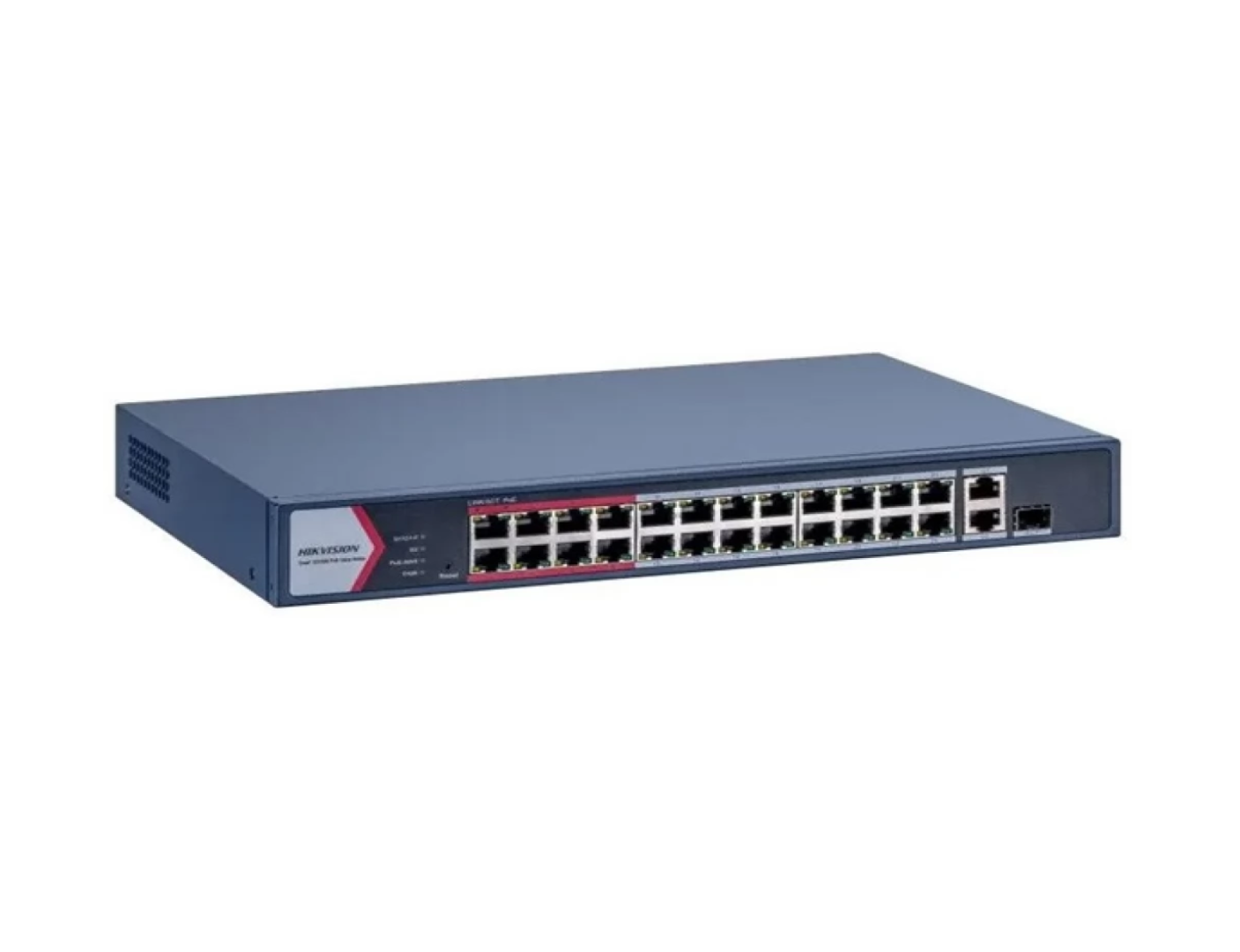

POE SWITCH HK 24X POE PORTS

Switch PoE Hikvision DS-3E1326P-EI/M: 24 × 10/100 Mbps PoE port,1 × Gigabit combo,1 × Gigabit RJ45 port, 24 porturi PoE maxim 30W, buget PoE 230W, tensiune alimentara: 100-240 VAC, 50/60 Hz, Max. 4 A, dimensiuni: 335.00 mm × 44.50 mm × 226.00 mm, greutate: 2.13kg.
Garantie: 36 luni


Specificatii tehnice

Montare in rack: Nu
Management: Da
PoE: Da
Forwarding rate: 11.01 Mpps
Compliance certificates: CB, Electromagnetic Compatibility (EMC), Low Voltage Directive (LVD), REACH, RoHS, UL, WEEE
Switching capacity: 14.8 Gbit/s
Packet buffer memory: 4 MB
MAC address table: 16000 entries
Rack mounting: Yes
Housing material: Metal
Power protection features: Surge protection
Surge protection: Yes
Networking standards: IEEE 802.3af, IEEE 802.3at
System event log: Yes
Switch type: Managed
Link aggregation: Yes
Power over Ethernet (PoE): Yes
10G support: No
Storage relative humidity (H-H): 5 - 95%
Storage temperature (T-T): -40 - 85 °C
Cables included: AC
Quick start guide: Yes
Package weight: 31 kg
Fast Ethernet (copper) ports quantity: 24
Basic switching RJ-45 Ethernet ports quantity: 24
Installed SFP+ modules quantity: 0
Gigabit Ethernet (copper) ports quantity: 1
Combo SFP ports quantity: 2
Installed SFP modules quantity: 0
Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)
Power over Ethernet (PoE) ports quantity: 24
Surge protection voltage: 6 kV
Input current: 6.5 A
Power source: AC/PoE
AC input frequency: 50/60 Hz
Power consumption (typical): 250 W
Total Power over Ethernet (PoE) budget: 230 W
Power over Ethernet (PoE) power per port: 30 W
Sustainability compliance: Yes
Porturi SFP: None
Viteza Transfer: Fast Ethernet
Porturi RJ 45: 1
Height: 44.5 mm
Depth: 226 mm
Weight: 21.3 kg
Width: 335 mm
