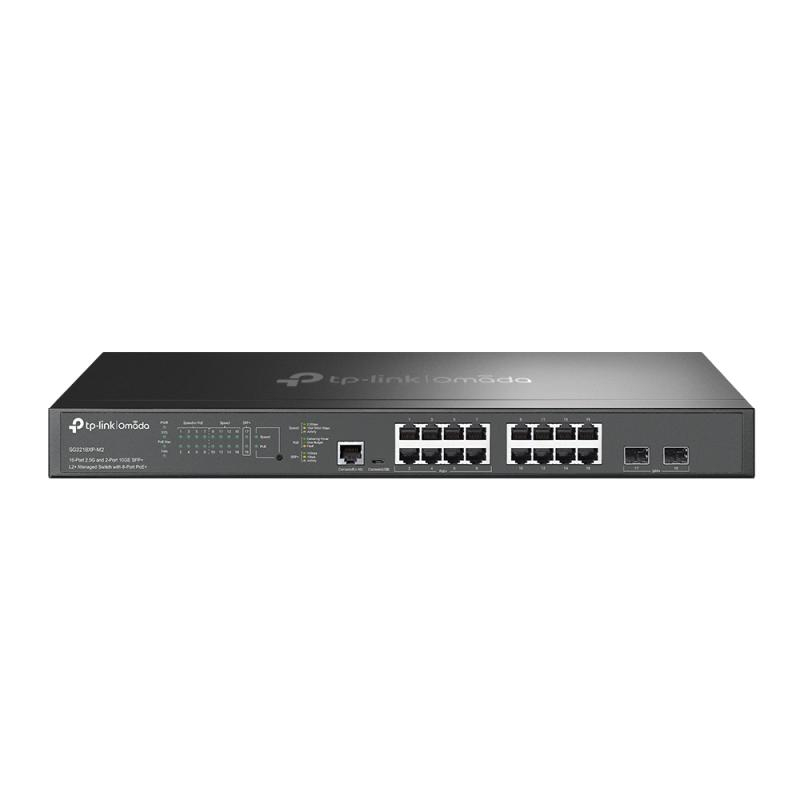

Omada 16-Port 2.5GBASE-T si 2-Port 10GE

Omada 16-Port 2.5GBASE-T and 2-Port 10GE SFP+ L2+ Managed Switch with 8- Port PoE+ PORT: 8× 2.5G PoE+ Ports, 8× 2.5G Non-PoE Ports, 2× 10G SFP+ Slots, RJ45/Micro-USB Console Port SPEC: 802.3at/af, 240 W PoE Power, 1U 19-inch Rack-mountable Steel Case FEATURE: Integration with Omada SDN Controller,Static Routing, OAM, DDM, 802.1Q VLAN, QinQ, STP/RSTP/MSTP, IGMP Snooping, 802.1p/DSCP QoS, ACL, 802.1x, Radius/Tacacs+ Authentication, LACP, CLI, SNMP, Dual Image/Configuration, IPv6
Garantie: 36 luni


Specificatii tehnice

Forwarding rate: 89.28 Mpps
Console port: RJ-45/micro-USB
LED indicators: Yes
Compliance certificates: Federal Communications Commission (FCC), RoHS
Certification: CE, FCC, RoHS
Number of IP interfaces: 32
Jumbo frames support: Yes
Static route: Yes
Switching capacity: 120 Gbit/s
MAC address table: 16000 entries
Jumbo frames: 9000
Packet buffer memory: 12 MB
Number of static routes: 48
Form factor: 1U
Number of fans: 2 fan(s)
Rack mounting: Yes
Ethernet LAN data rates: 100,1000,2500 Mbit/s
Flow control support: Yes
VLAN support: Yes
Quality of Service (QoS) support: Yes
Networking standards: IEEE 802.1D, IEEE 802.1s, IEEE 802.1w
Rate limiting: Yes
Cloud-managed: Yes
Configuring Location Settings (CLI): Yes
Switch layer: L2+
ARP inspection: Yes
Web-based management: Yes
System event log: Yes
Switch type: Managed
Multicast support: Yes
Multicast Listener Discovery (MLD) snooping: Y
Security algorithms: HTTPS, SSH, SSH-2, SSL/TLS
Broadcast storm control: Yes
Spanning tree protocol: Yes
IP routing: Yes
Virtual LAN features: MAC address-based VLAN, Port-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
Head-of-line (HOL) blocking: Yes
10G support: Yes
Port mirroring: Yes
Link aggregation: Yes
Power over Ethernet (PoE): Yes
Storage relative humidity (H-H): 5 - 90%
Heat dissipation: 1021.64 BTU/h
Operating relative humidity (H-H): 10 - 90%
Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -40 - 70 °C
Quick start guide: Yes
Cables included: AC
Package type: Box
SFP+ module slots quantity: 2
SFP module slots quantity: 2
Power connector: AC-in jack
Installed SFP modules quantity: 0
Basic switching RJ-45 Ethernet ports quantity: 16
Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500)
Installed SFP+ modules quantity: 0
Power supply included: Yes
Power source: AC
AC input voltage: 100 - 240 V
Power consumption (max): 299.4 W
Total Power over Ethernet (PoE) budget: 240 W
Power over Ethernet plus (PoE+) ports quantity: 8
Power over Ethernet (PoE) power per port: 30 W
GARP VLAN Registration Protocol (GVRP): Yes
Management protocols: SNMP v1/v2c/v3, SNTP
IP-MAC-Port binding: Yes
Authentication: MAC-based authentication, Port-based authentication
Authentication type: AAA, TACACS+
Queue scheduling algorithms: SP, WRR+SP, Weighted Round Robin (WRR)
BPDU filtering/protection: Yes
Static port security: Yes
DHCP features: DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
SSH/SSL support: Yes
Loop protection: Yes
IGMP snooping: Yes
Password protection: Yes
MAC address filtering: Yes
Access Control List (ACL): Yes
Sustainability compliance: Yes
Depth: 180 mm
LAN-Port-Type: FastEthernet
