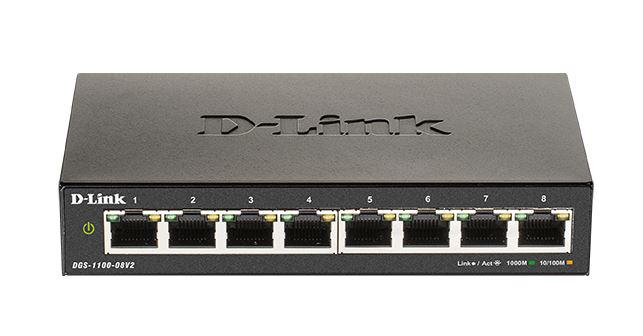

DLINK SW 8P-GB POE EASY-SMART DESK V2

Compliance certificates: CE, RoHS

Certification: FCC Class B, CE Class B, VCCI Class B, BSMIncUL, CE LVD, CB, BSMI

Jumbo frames: 9216

Number of queues: 4

MAC address table: 4096 entries

Switching capacity: 16 Gbit/s

Forwarding rate: 11.9 Mpps

Jumbo frames support: Yes

Rack mounting: No

LED indicators: Yes

Ethernet LAN data rates: 10,100,1000 Mbit/s

VLAN support: Yes

Quality of Service (QoS) support: Yes

Flow control support: Yes

Flash memory: 2 MB

Mean time between failures (MTBF): 786841 h

Switch layer: L2+/L3

Web-based management: Yes

Switch type: Managed

Multicast support: Yes

Number of VLANs: 4094

Virtual LAN features: Port-based VLAN, Tagged VLAN, Voice VLAN

Port mirroring: Yes

Power over Ethernet (PoE): Yes

Full duplex: Yes

Link aggregation: Yes

10G support: No

Half duplex: Yes

Broadcast storm control: Yes

Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T

Auto MDI/MDI-X: Yes

Storage relative humidity (H-H): 0 - 95%

Operating relative humidity (H-H): 0 - 90%

Heat dissipation: 265.85 BTU/h

Operating temperature (T-T): 0 - 40 °C

Storage temperature (T-T): -40 - 70 °C

Fanless: Yes

Installed SFP modules quantity:

Gigabit Ethernet (copper) ports quantity: 8

Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

Basic switching RJ-45 Ethernet ports quantity: 8

Installed SFP+ modules quantity:

Power supply included: Yes

AC input voltage: 100 - 240 V

Power consumption (max): 77.9 W

Power over Ethernet (PoE) power per port: 30 W

Total Power over Ethernet (PoE) budget: 64 W

Power over Ethernet plus (PoE+) ports quantity: 8

IGMP snooping: Yes

Loop protection: Yes

Queue scheduling algorithms: SP, Weighted Round Robin (WRR)

Sustainability compliance: Yes

Width: 171 mm

Height: 28.6 mm

Depth: 97.8 mm

Weight: 430 g

LAN port type: Gigabit

Garantia Produsului: 60 luni
