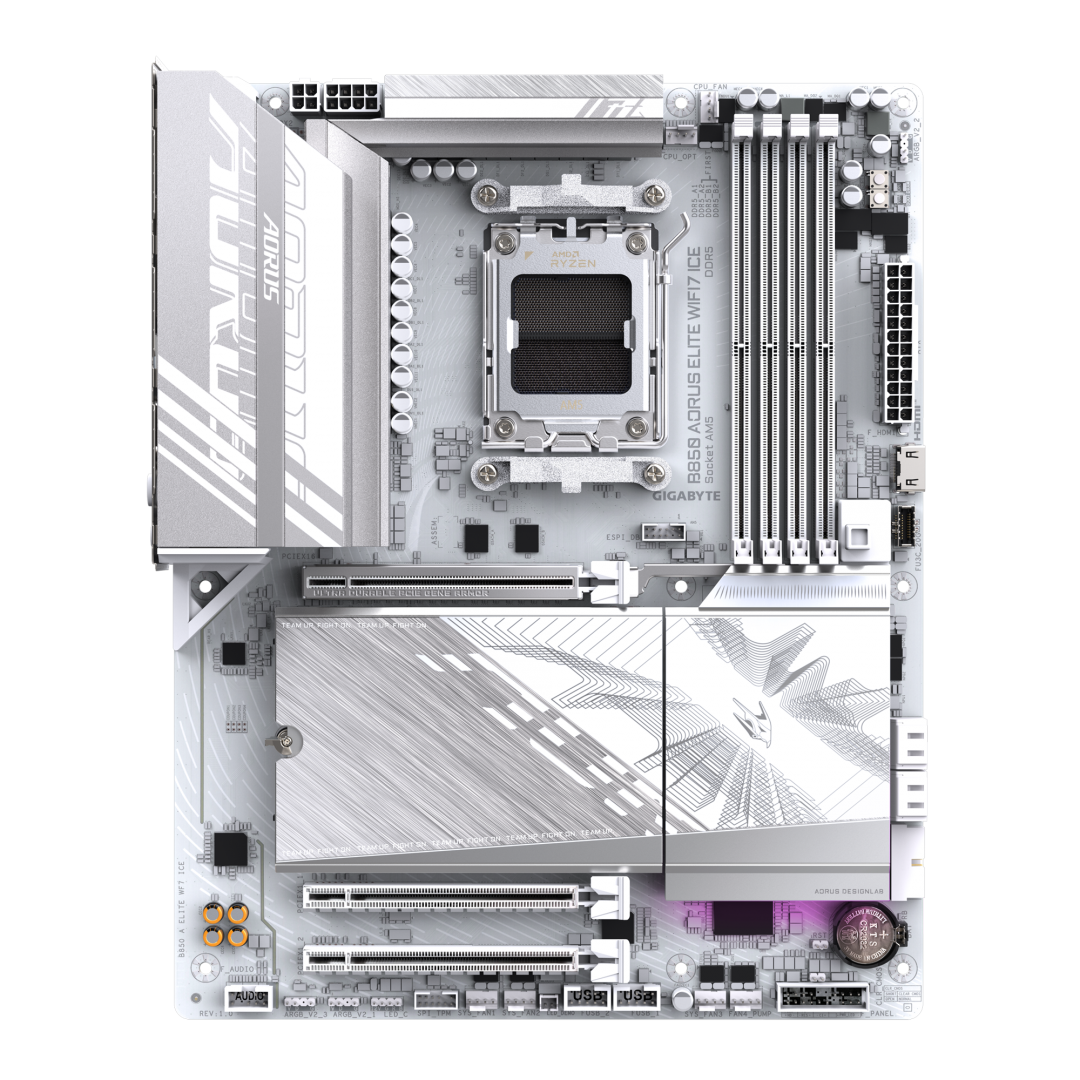

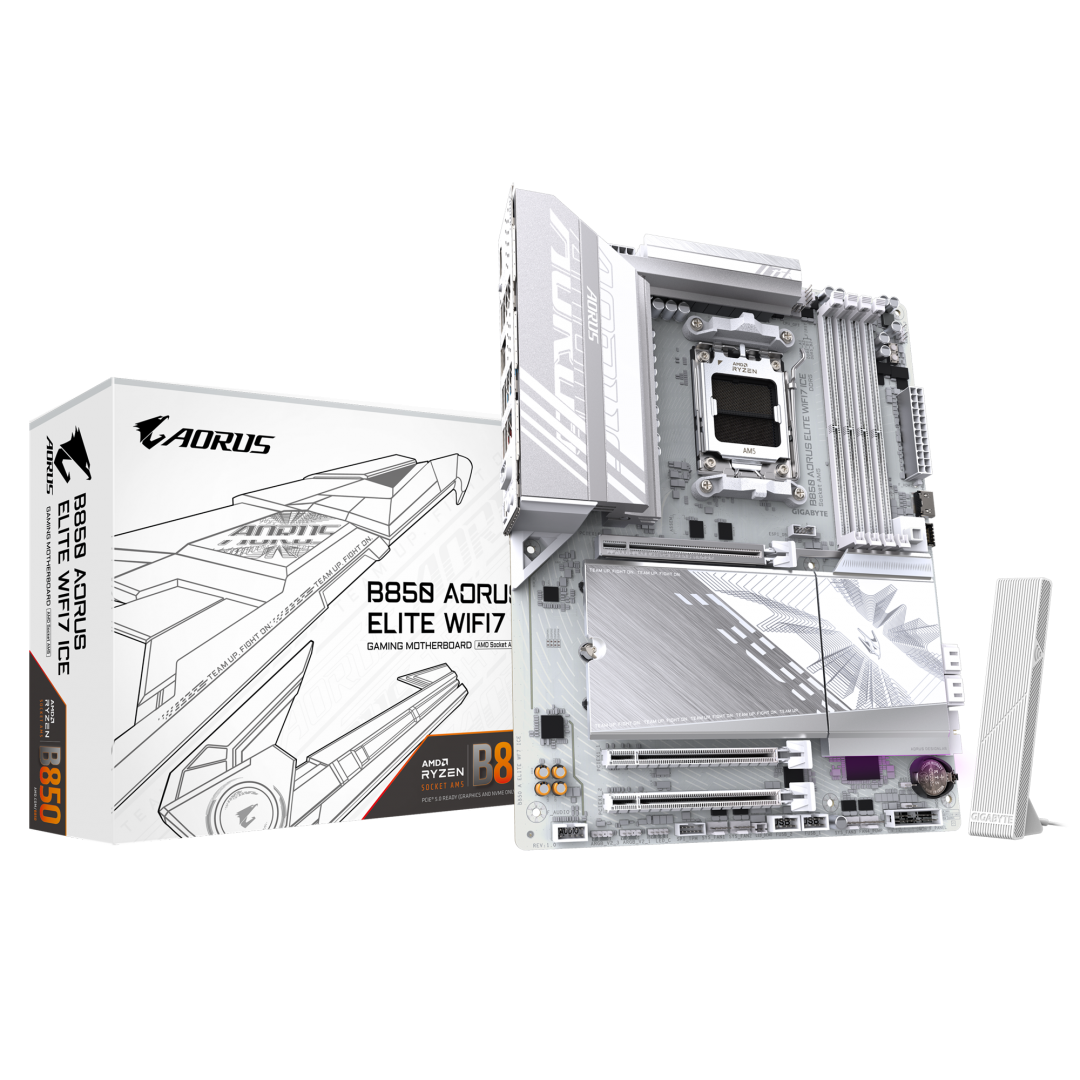

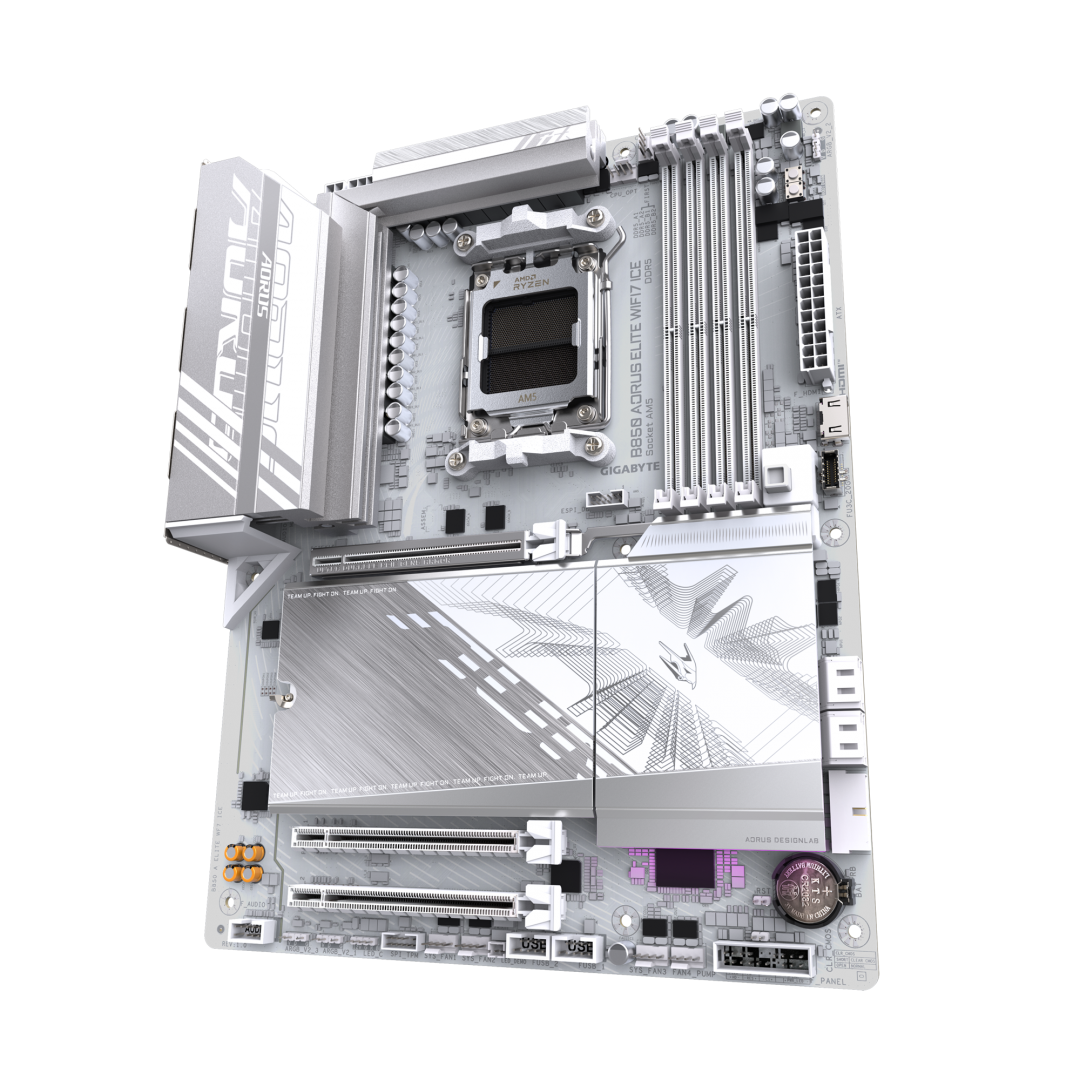

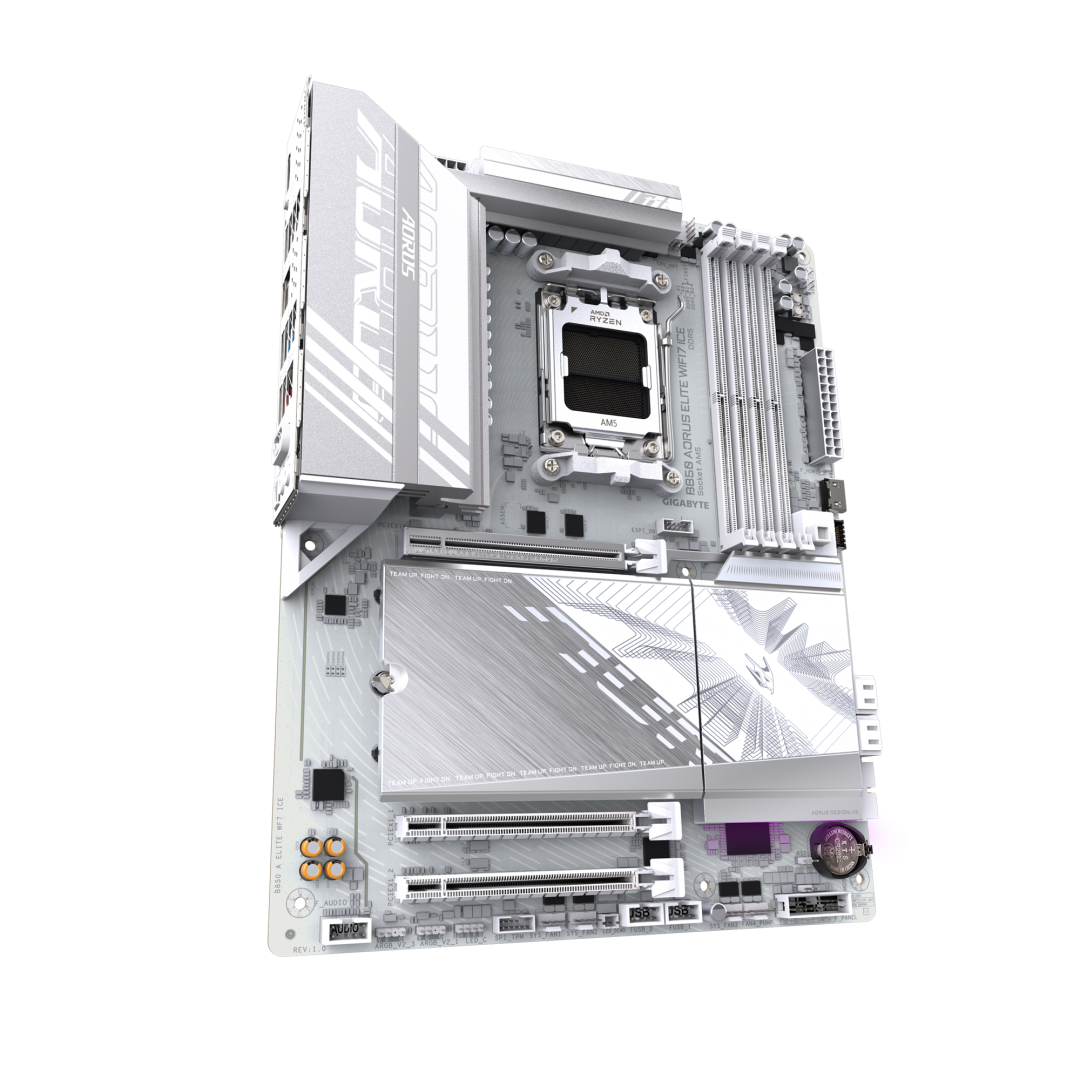

MB Gigabyte B850 AORUS ELITE WIFI7 ICE

Placa de Baza GIGABYTE B850 AORUS ELITE WIFI7 ICE AM5, 4x DDR5, 1x DP 1x HDMI, 3x PCIE x16, 3x M.2, 4x SATA 6GB/s, ATX
Garantie: 36 luni


Specificatii tehnice

Lithium weight per battery: 0.07 g
Battery weight: 3 g
Number of battery cells: 1
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Battery type: CR2032
Clear CMOS button: Yes
ACPI version: 5.0
Desktop Management Interface (DMI) version: 2.7
System Management BIOS (SMBIOS) version: 2.7
BIOS type: UEFI AMI
BIOS memory size: 256 Mbit
Clear CMOS jumper: Yes
Number of M.2 (M) slots: 3
1st M.2 largest key size: 25110
1st M.2 highest PCI Express generation: 5.0
2nd M.2 largest key size: 22110
2nd M.2 highest PCI Express generation: 4.0
3rd M.2 largest key size: 22110
3rd M.2 highest PCI Express generation: 4.0
PCI Express x16 (Gen 4.x) slots: 2
Windows operating systems supported: Windows 10 x64, Windows 11 x64
Component for: PC
Audio output channels: 7.1 channels
Audio Chip: Realtek ALC897
Motherboard form factor: ATX
PC health monitoring: Fan, Temperature, Voltage, Water cooling
Motherboard chipset family: AMD
Motherboard chipset: AMD B850
Power source type: ATX
Product colour: Brown, White
DirectX version: 12.0
Maximum resolution: 4096 x 2160 pixels
HDCP: Yes
Parallel processing technology support: Not supported
USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Number of SATA III connectors: 4
Front panel audio connector: Yes
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
EPS power connector (8-pin): Yes
USB 3.2 Gen 2x2 connectors: 1
12V power connector: Yes
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
Front panel connector: Yes
Number of CPU fan connectors: 2
TPM connector: Yes
Number of water pump connectors: 2
RGB LED pin header: Yes
Number of RGB LED pin headers: 4
Number of chassis fan connectors: 3
Number of EPS power connectors (8-pin): 1
Serial port headers: 1
Peripheral (Molex) power connectors (4-pin): 1
Country of origin: China
ECC сompatibility: Non-ECC
Supported memory clock speeds: 4400,4800,5200,8200 MHz
Supported memory clock speed (max): 8200 MHz
Supported memory types: DDR5-SDRAM
Maximum internal memory: 256 GB
Maximum internal memory per slot: 64 GB
Number of memory slots: 4
Memory slots type: DIMM
Unbuffered memory: Yes
Memory channels: Dual-channel
Ethernet LAN: Yes
Wi-FI: Yes
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Ethernet interface type: 2.5 Gigabit Ethernet
WLAN controller model: Realtek RTL8922AE
Bluetooth version: 5.4
Weight: 2.16 kg
Bundled software: Norton® Internet Security (OEM version)rnLAN bandwidth management software
Antenna included: Yes
Screws included: Yes
Package weight: 2.46 kg
Package width: 335 mm
Package depth: 270 mm
Package height: 80 mm
Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Processor socket: Socket AM5
Supported processor sockets: Socket AM5
Processor manufacturer: AMD

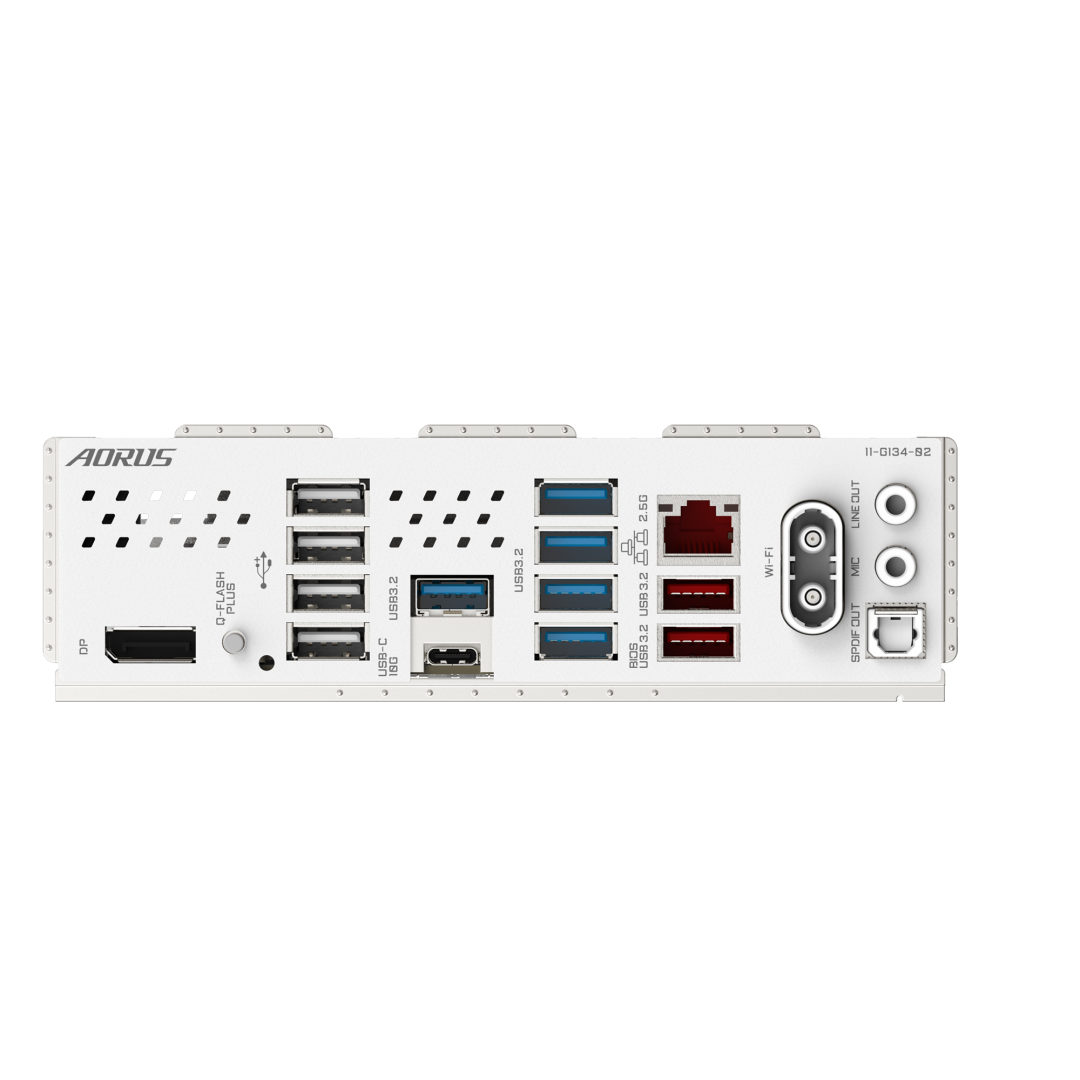

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 0
USB 2.0 ports quantity: 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
HDMI ports quantity: 1
DisplayPorts quantity: 1
VGA (D-Sub) ports quantity: 0
DVI-D ports quantity: 0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 5
WiFi-AP antenna jack: 2
Microphone in: Yes
Headphone outputs: 1
RAID levels: 0, 1, 10
Number of HDDs supported: 4
Number of storage drives supported: 7
RAID support: Yes
Supported storage drive interfaces: M.2, SATA III
Supported storage drive types: HDD & SSD
Height: 35 mm
Depth: 24.4 mm
Width: 30.5 mm
Onboard-CPU: No
PCI: 0
Serial-or-Paralel: No/No
