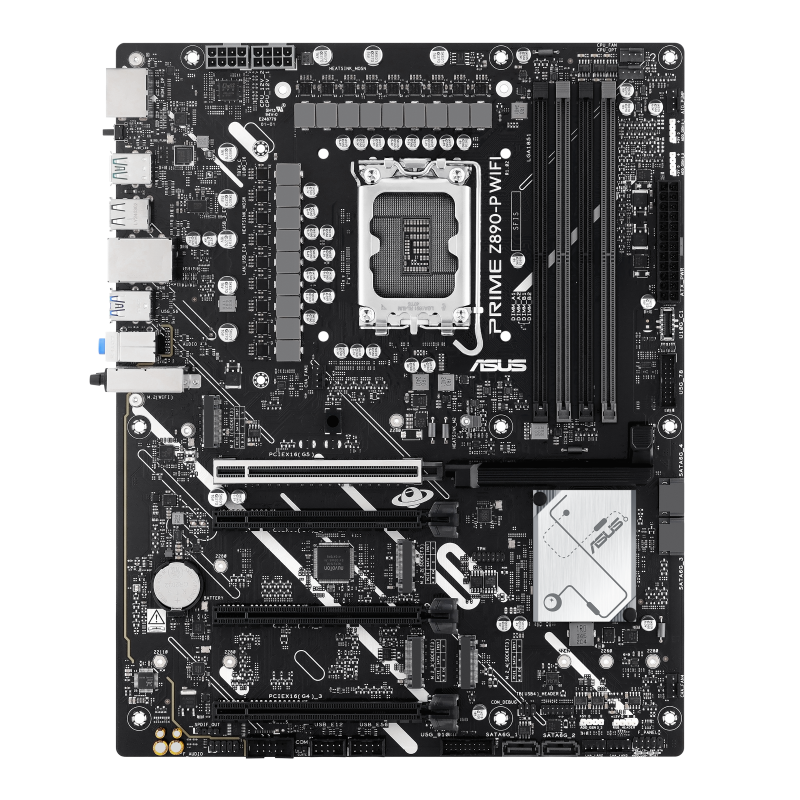

MB Asus PRIME Z890-P WIFI

Placa de Baza ASUS PRIME Z890-P WIFI LGA1851, 4x DDR5, 1x DP 1x HDMI 1x Intel Thunderbolt, 1x PCIE 5.0 x16 2x PCIE 4.0 x16 1x PCIE 4.0 x16, 4x M.2 4x SATA 6GB/s, ATX
Garantie: 36 luni


Specificatii tehnice

BIOS type: UEFI AMI
BIOS memory size: 256 Mbit
PCI Express x16 (Gen 4.x) slots: 3
Number of M.2 (M) slots: 4
PCI Express x16 (Gen 5.x) slots: 1
Audio output channels: 7.1 channels
Cooling type: Passive
Component for: PC
Windows operating systems supported: Windows 10, Windows 11
Motherboard chipset: Intel Z890
Motherboard form factor: ATX
Motherboard chipset family: Intel
Power source type: ATX
On-board graphics card: No
Parallel processing technology support: Not supported
12V power connector: Yes
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
Number of chassis fan connectors: 4
TPM connector: Yes
RGB LED pin header: Yes
USB 2.0 connectors: 2
Number of SATA III connectors: 4
Front panel audio connector: Yes
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
EPS power connector (8-pin): Yes
S/PDIF out connector: Yes
Number of COM connectors: 1
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
Thunderbolt headers: 1
Supported memory clock speed (max): 7600 MHz
Supported memory types: DDR5-SDRAM
ECC сompatibility: Non-ECC
Number of memory slots: 4
Memory slots type: DIMM
Unbuffered memory: Yes
Maximum internal memory: 192 GB
Memory channels: Dual-channel
Wi-FI: Yes
Ethernet LAN: Yes
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Ethernet interface type: 2.5 Gigabit Ethernet
Bluetooth version: 5.4
Back-to-BIOS button: Yes
Quick installation guide: Yes
Cables included: SATA
Package height: 68 mm
Package weight: 1.89 kg
Package depth: 273 mm
Package width: 353 mm
Compatible processor series: Intel Core Ultra (Series 2)
Processor socket: LGA 1851 (Socket V1)
Processor manufacturer: Intel
Line-in: Yes
DisplayPorts quantity: 1
VGA (D-Sub) ports quantity: 0
DVI-D ports quantity: 0
DisplayPort version: 1.4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 0
USB 2.0 ports quantity: 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
HDMI ports quantity: 1
HDMI version: 2.1
Headphone outputs: 1
Number of storage drives supported: 8
RAID support: Yes
Number of HDDs supported: 4
RAID levels: 0, 1, 5, 10
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III
Width: 30.5 mm
Depth: 24.4 mm
USB3: 4-8
Onboard-CPU: No
PCI: 0
Serial-or-Paralel: No/No
MB-Format: ATX
PCI-Ex1: 0
RAM-Slots: 4
PCI-Ex16: 4
MB-Socket: LGA1851
