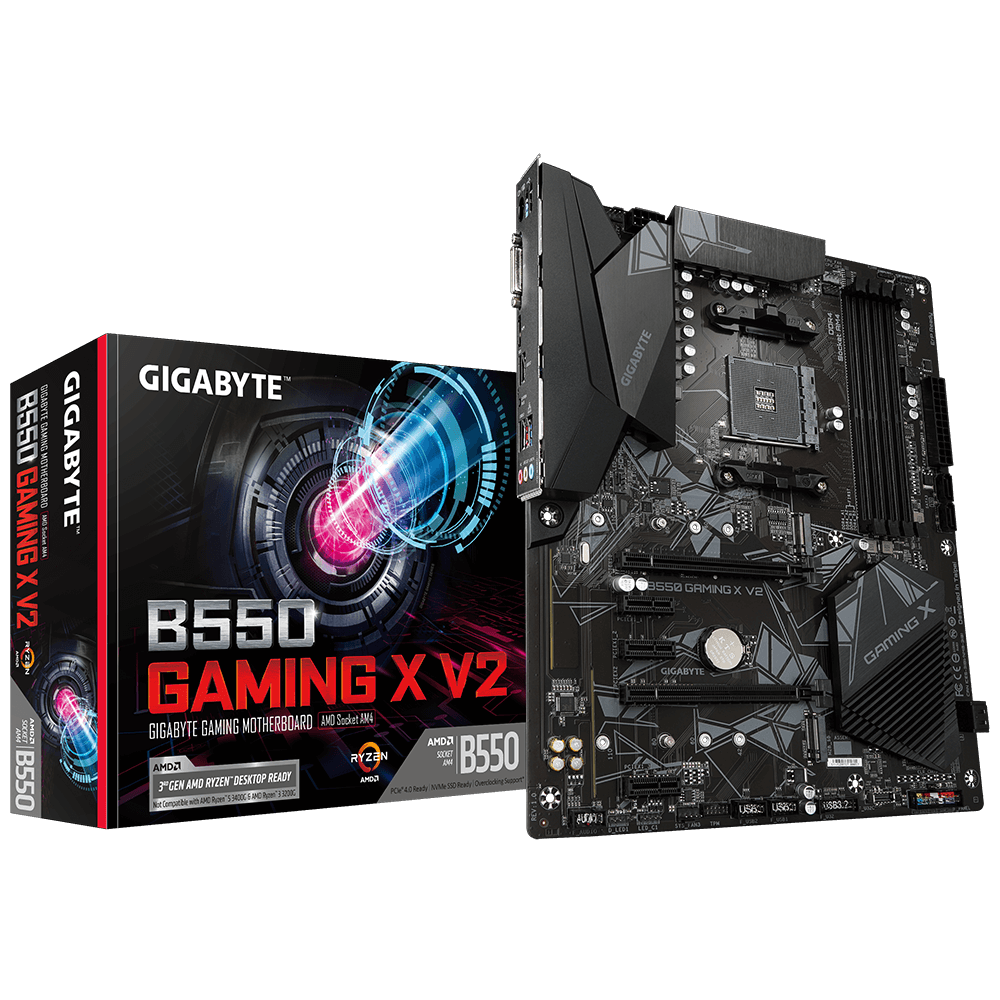

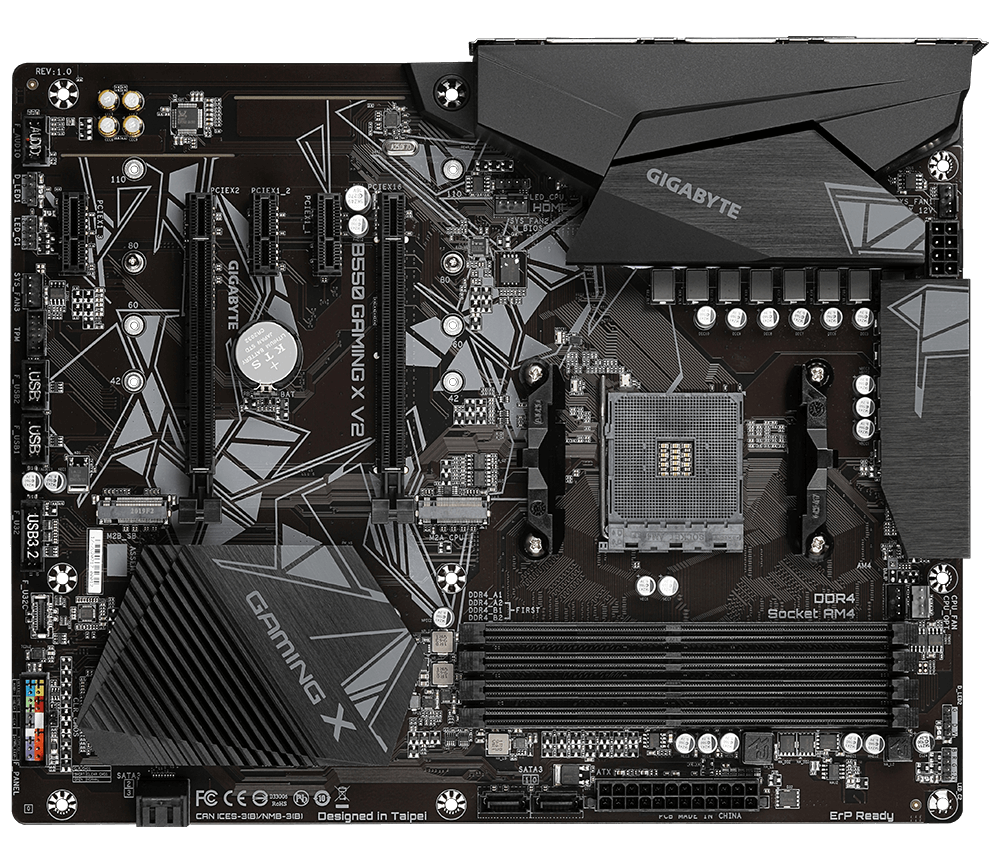

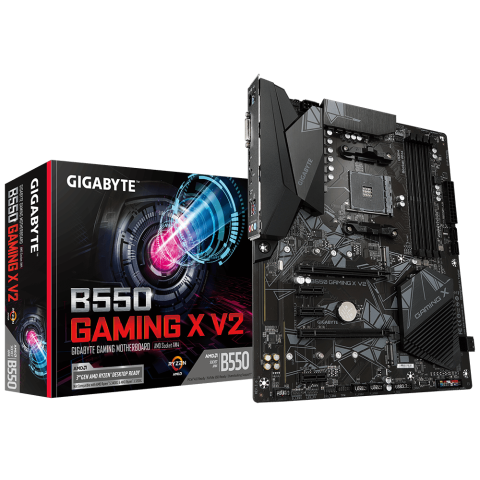

MB Gigabyte B550 GAMING X V2 AM4

Lithium weight per battery: 0.07 g

Battery weight: 3 g

Number of battery cells: 1

Battery technology: Lithium-Manganese Dioxide (LiMnO2)

Battery type: CR2032

ACPI version: 5.0

Desktop Management Interface (DMI) version: 2.7

System Management BIOS (SMBIOS) version: 2.7

BIOS memory size: 128 Mbit

BIOS type: UEFI AMI

Clear CMOS jumper: Yes

Cooling type: Passive

Product colour: Brown

1st M.2 highest PCI Express generation: 4.0

PCI Express x1 (Gen 3.x) slots: 3

PCI Express x16 slots: 2

2nd M.2 largest key size: 22110

PCI Express x16 (Gen 3.x) slots: 2

1st M.2 largest key size: 22110

PCI Express x1 slots: 3

2nd M.2 highest PCI Express generation: 3.0

PCI Express x16 (Gen 4.x) slots: 1

Number of M.2 (M) slots: 2

Audio Chip: Realtek ALC897

Audio output channels: 7.1 channels

Component for: PC

Motherboard chipset: AMD B550

Windows operating systems supported: Windows 10 x64, Windows 11 x64

Motherboard form factor: ATX

PC health monitoring: Fan, Temperature, Voltage, Water cooling

Motherboard chipset family: AMD

Supported processor sockets (cooler): Socket AM4

Power source type: ATX

Maximum graphics card memory: 16 MB

Parallel processing technology support: Not supported

DirectX version: 12.0

HDCP: Yes

Graphics card family: AMD

On-board graphics card: No

Front panel connector: Yes

TPM connector: Yes

RGB LED pin header: Yes

USB 2.0 connectors: 2

USB 3.2 Gen 2 (3.1 Gen 2) connectors:

Number of SATA III connectors: 4

Number of SATA II connectors:

Number of SATA connectors:

Number of Parallel ATA connectors:

Front panel audio connector: Yes

ATX Power connector (24-pin): Yes

CPU fan connector: Yes

EPS power connector (8-pin): Yes

S/PDIF out connector: No

Number of RGB LED pin headers: 5

Number of CPU fan connectors: 1

Number of chassis fan connectors: 3

Total number of SATA connectors: 4

12V power connector: Yes

Number of EPS power connectors (8-pin): 1

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2

Number of water pump connectors: 4

Power fan connector: Yes

Harmonized System (HS) code: 84733020

Products per shipping (inner) case: 1 pc(s)

Country of origin: China

Supported memory clock speed (max): 4733 MHz

Maximum internal memory per slot: 32 GB

Supported memory module capacities: 1GB, 2GB, 4GB, 8GB, 16GB, 32GB

Supported memory clock speeds: 4733,4600,4400,4266,4133,4000,3866,3733,3600,3466,3400,3200,2933,2667,2400,2133 MHz

ECC сompatibility: ECC & Non-ECC

Number of memory slots: 4

Memory slots type: DIMM

Unbuffered memory: Yes

Supported memory types: DDR4-SDRAM

Memory channels: Dual-channel

Maximum internal memory: 128 GB

Ethernet LAN: Yes

Ethernet interface type: Gigabit Ethernet

Wi-FI: No

LAN controller: Realtek RTL8111H

DVI port: Yes

mSATA ports quantity:

Supported DIMM module capacities: 32GB

Weight: 11.2 kg

Batteries included: Yes

Bundled software: Norton® Internet Security (OEM version)nLAN bandwidth management software

Screws included: Yes

Package weight: 17.1 kg

Package width: 335 mm

Package depth: 270 mm

Package height: 80 mm

Warranty period: 3 year(s)

DVI-D ports quantity: 1

HDMI version: 2.1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity:

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3

USB 2.0 ports quantity: 2

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1

HDMI ports quantity: 1

Processor manufacturer: AMD

Processor socket: Socket AM4

Compatible processor series: AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series

Supported processor sockets: Socket AM4

Maximum internal memory supported by processor: 128 GB

Maximum number of SMP processors: 1

eSATA ports quantity:

Firewire (IEEE 1394) ports:

Microphone in: Yes

Headphone outputs: 1

Ethernet LAN (RJ-45) ports: 1

VGA (D-Sub) ports quantity: 0

PS/2 ports quantity: 1

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity:

Line-in: Yes

USB connector type: USB Type-A

RAID support: Yes

Supported storage drive types: HDD & SSD

Number of HDDs supported: 4

Supported storage drive interfaces: M.2, SATA III

RAID levels: 0, 1, 10

Number of storage drives supported: 6

Height: 35 mm

Width: 30.5 mm

Depth: 24.4 mm

CPU încorporat: No

PCI: 0

Garantia Produsului: 36 luni
