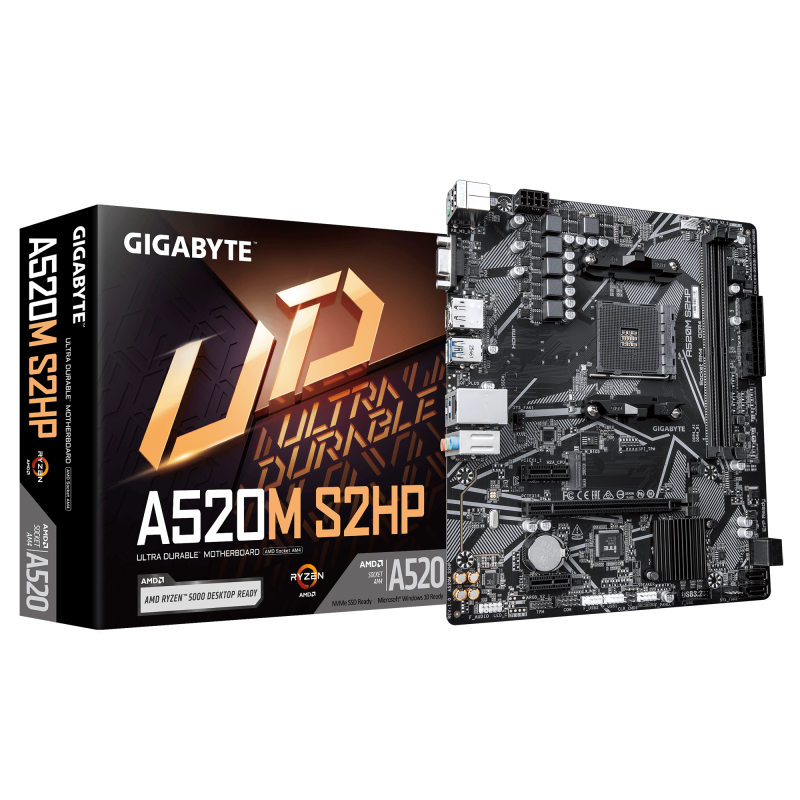

MB Gigabyte A520M S2HP

Placa de baza Gigabyte A520M S2HP


Specificatii tehnice

Lithium weight per battery: 0.07 g
Battery capacity: 220 mAh
Battery weight: 3 g
Number of battery cells: 1
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Battery type: CR2032
Clear CMOS button: Yes
BIOS memory size: 128 Mbit
ACPI version: 5.0
Desktop Management Interface (DMI) version: 2.7
System Management BIOS (SMBIOS) version: 2.7
BIOS type: UEFI AMI
Clear CMOS jumper: Yes
PCI Express x1 (Gen 3.x) slots: 2
PCI Express x16 (Gen 3.x) slots: 1
Number of M.2 (M) slots: 1
Motherboard form factor: micro ATX
Motherboard chipset family: AMD
Audio output channels: 7.1 channels
Component for: PC
Motherboard chipset: AMD A520
Product colour: Black
On-board graphics card: No
HDCP: Yes
USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 0
Number of SATA III connectors: 4
Number of SATA II connectors: 0
Number of SATA connectors: 0
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
Number of chassis fan connectors: 2
RGB LED pin header: Yes
Number of RGB LED pin headers: 4
Power fan connector: Yes
Country of origin: China
Products per shipping (inner) case: 1 pc(s)
Supported memory clock speeds: 2133,2400,2667,2933,3200,3333,3600,4866 MHz
Supported memory clock speed (max): 3200 MHz
ECC сompatibility: ECC & Non-ECC
Memory slots type: DIMM
Number of memory slots: 2
Supported memory types: DDR4-SDRAM
Memory channels: Dual-channel
Maximum internal memory: 64 GB
Ethernet LAN: Yes
Ethernet interface type: Gigabit Ethernet
Wi-FI: No
Batteries included: Yes
Package width: 265 mm
Package depth: 235 mm
Package height: 52 mm
Package weight: 772 g
Supported processor sockets: Socket AM4
Maximum number of SMP processors: 1
Processor socket: Socket AM4
Processor manufacturer: AMD
Compatible processor series: AMD Ryzen 3000 Series
VGA (D-Sub) ports quantity: 0
DVI-D ports quantity: 0
PS/2 ports quantity: 1
USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
HDMI ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
RAID levels: 0, 1, 10
Supported storage drive interfaces: M.2, PCI Express 3.0, SATA
RAID support: Yes
Warranty period: 3 year(s)
Height: 35 mm
Width: 244 mm
Depth: 205 mm
