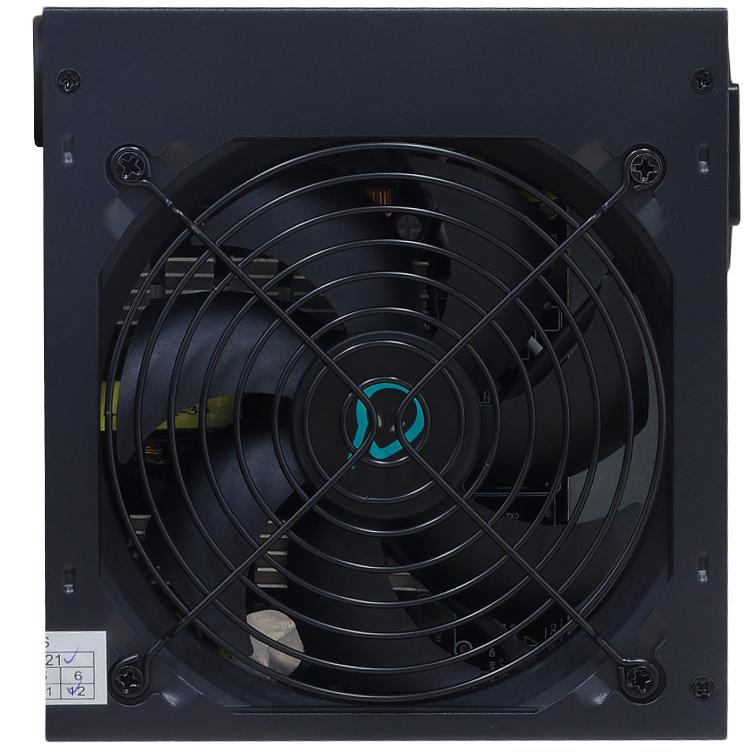

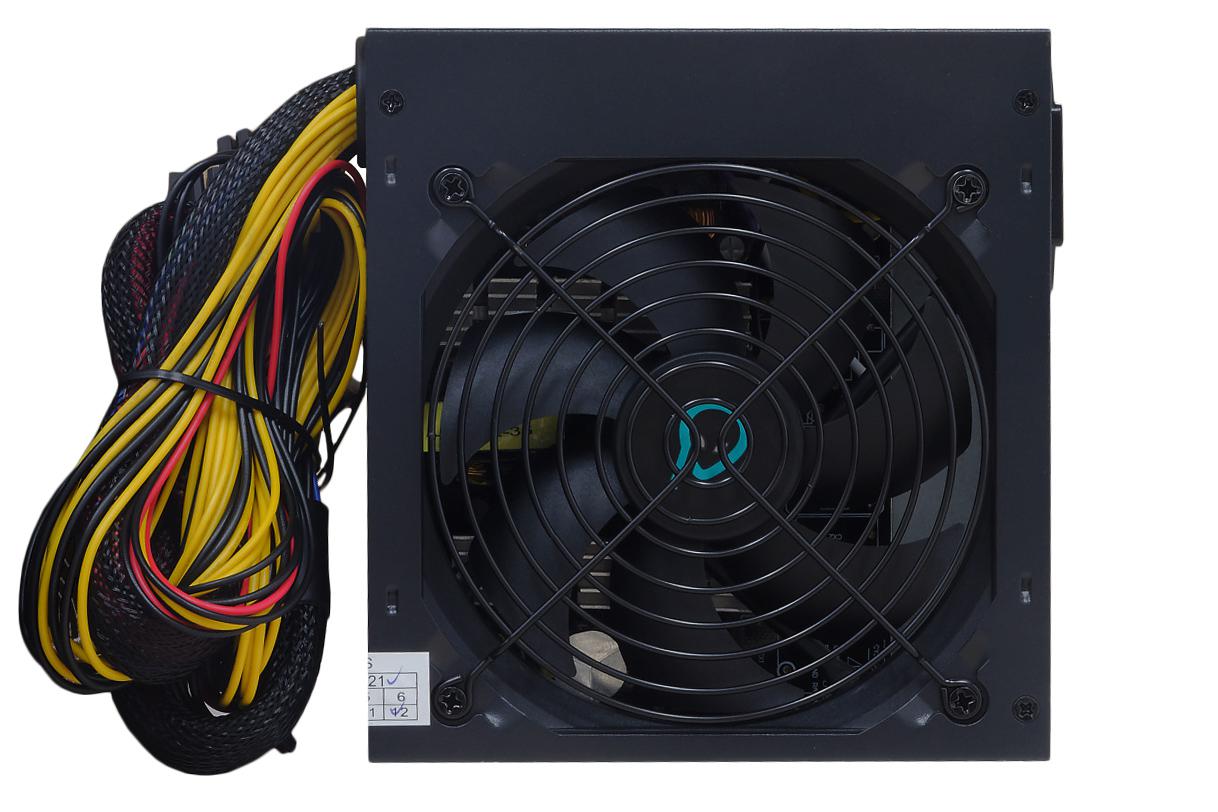

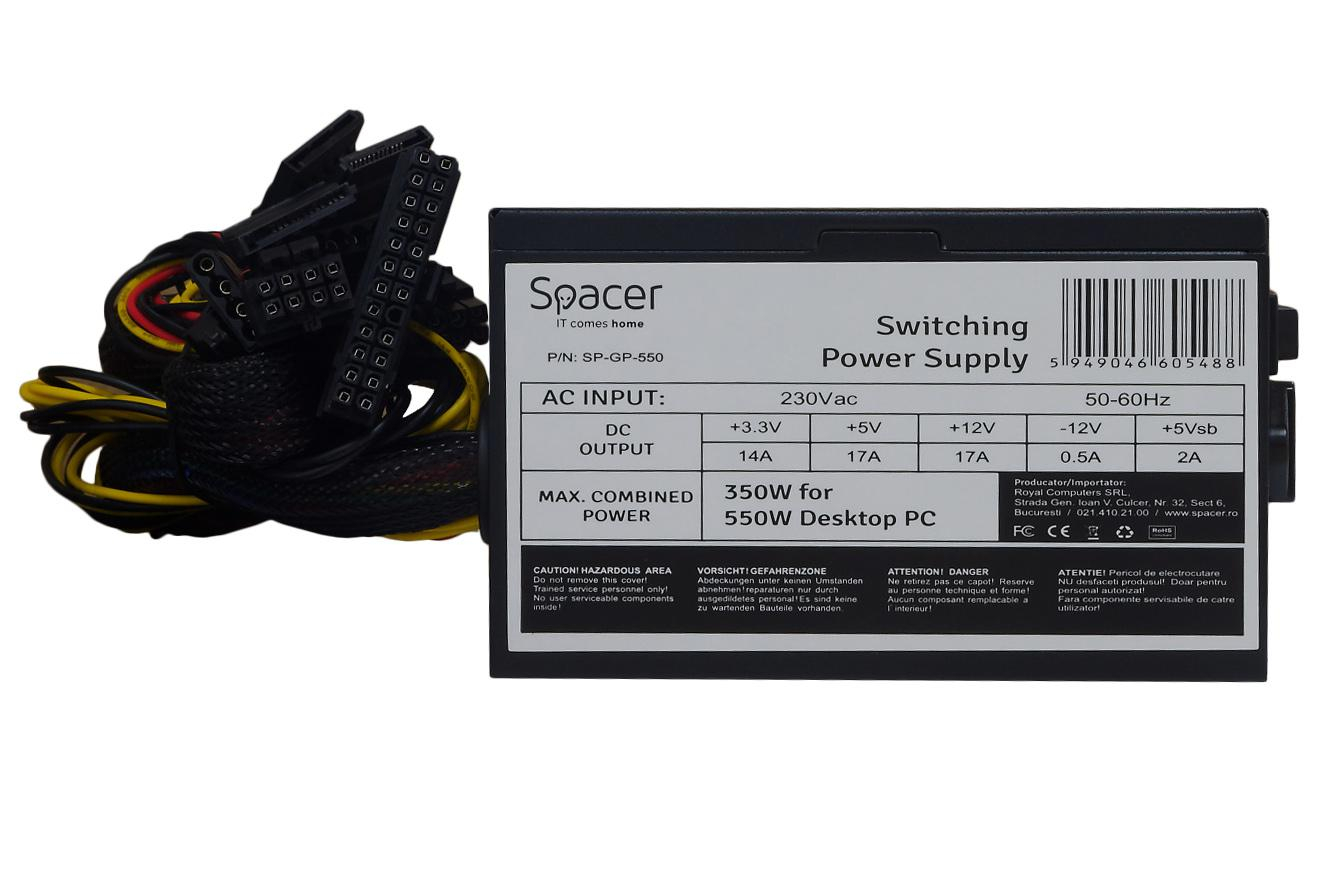

Sursa Spacer ATX 550, 350W

Sursa Spacer ATX 550, 350W for 550 Desktop PC, PFC pasiv, fan 120mm, 1x PCI-E (6), 4x S-ATA, 1x P8 (4+4), retail box, „SP-GP-550”
Garantie: 24 luni


Specificatii tehnice

20+4 Pin ATX: 1
4+4 Pin ATX/EPS: 1
SATA: 4
6 Pin PCI-E: 1
Fan diameter: 12 cm
Tip sursa: ATX 12V V1.3
Numar de ventilatoare: 1x 120 mm
Putere Sursa: 550 W
ATX version: 1.3
Purpose: PC
Power supply unit (PSU) form factor: ATX
Number of SATA power connectors: 5
PCI Express power connectors (6+2 pin): 2
Motherboard power connector: 20+4 pin ATX
CPU power connector (4+4 pin): Yes
ATX power connector (20+4 pin): Yes
PCI Express connector: Yes
Combined power (+3.3V): 100 W
Combined power (+5V): 100 W
Combined power (+5Vsb): 12.5 W
Max output current (+5Vsb): 2.5 A
Max output current (+3.3V): 18 A
Max output current (-12V): 0.5 A
Combined power (-12V): 6 W
Max output current (+12V1): 29 A
Max output current (+12V2): 29 A
Max output current (+5V): 19 A
Total power: 350 W
AC input voltage: 230 V
Rail +12V: 1
+12V 1: 17 A
-12V: 0.5 A
+5Vsb: 2 A
+3.3V: 14 A
+5V: 17 A
Warranty period: 2 year(s)
