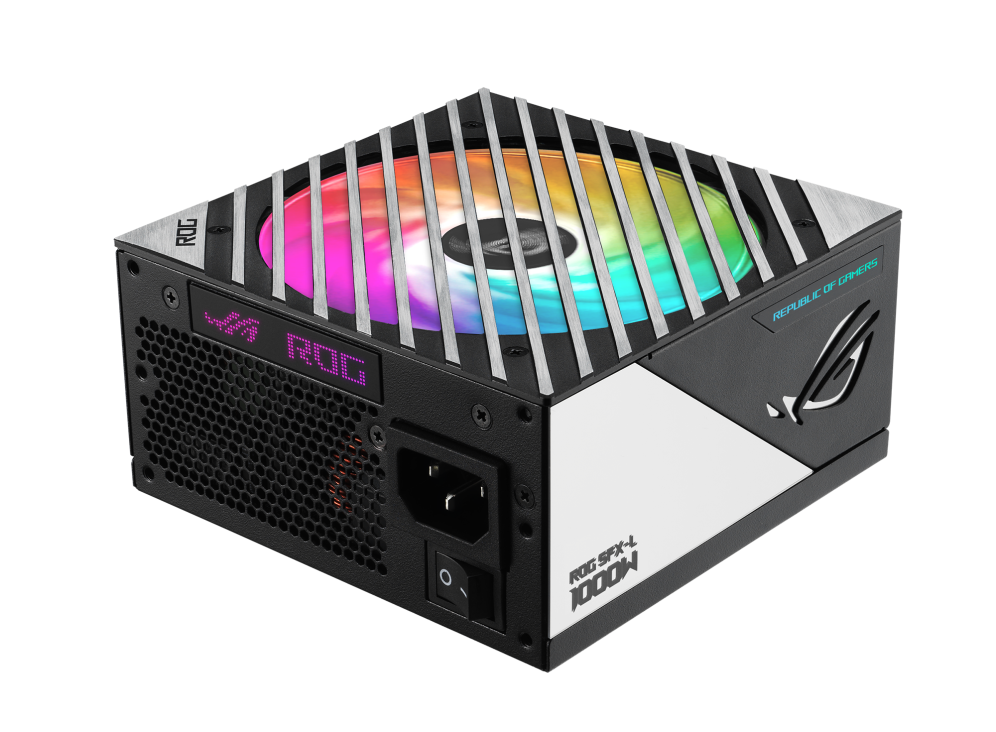

SURSA ASUS ROG LOKI 1000W 80+Platinum

Sursa ASUS ROG LOKI 1000W 80+Platinum Intel Form Factor SFX-L ATX 3.0 Yes Dimensions 125 x 125 x 63.5 mm Efficiency 80Plus Platinum Protection Features OPP/OVP/UVP/SCP/OCP/OTP Hazardous Materials ROHS AC Input Range 100-240Vac DC Output Voltage +3.3V +5V +12V -12V +5Vsb Maximum Load 20A 20A 83.3A 0.8A 2.5A Combined Load 110W 110W 1000W 9.6W 12.5W Total Output 1000W Connectors MB 24/20-pin x 1 CPU 4+4-pin x 2 PCI-E 16-pin x 1 PCI-E 8-pin x 3 SATA x 6 PERIPHERAL x 4
Garantie: 120 luni


Specificatii tehnice

Compliance certificates: RoHS
Certification: OPP/OVP/UVP/SCP/OCP/OTP
Product colour: Black, Silver
Number of fans: 1 fan(s)
Illumination: Yes
Fan diameter: 12 cm
Package depth: 190 mm
Package width: 285 mm
Package type: Box
Package height: 100 mm
Package weight: 2.52 kg
Silent mode: Yes
Power supply unit (PSU) form factor: SFX-L
Supported motherboard form factors: ATX
80 PLUS certification: 80 PLUS Platinum
Purpose: PC
Peripheral (Molex) power connectors (4-pin): 4
CPU power connector (4+4 pin): Yes
Number of SATA power connectors: 6
Cabling type: Fully-Modular
PCI Express power connectors (8-pin): 3
Motherboard power connector: 24-pin ATX
PCI Express power connectors (16-pin): 1
Combined power (+5V): 110 W
Max output current (+5V): 20 A
Total power: 1000 W
AC input voltage: 100 - 240 V
Combined power (+3.3V): 110 W
Max output current (+3.3V): 20 A
Max output current (-12V): 0.8 A
Combined power (-12V): 9.6 W
Combined power (+5Vsb): 12.5 W
Max output current (+5Vsb): 2.5 A
Efficiency: 80Plus-Platinum
Height: 63.5 mm
Width: 125 mm
Weight: 1.83 kg
Depth: 125 mm
Modular: Yes
