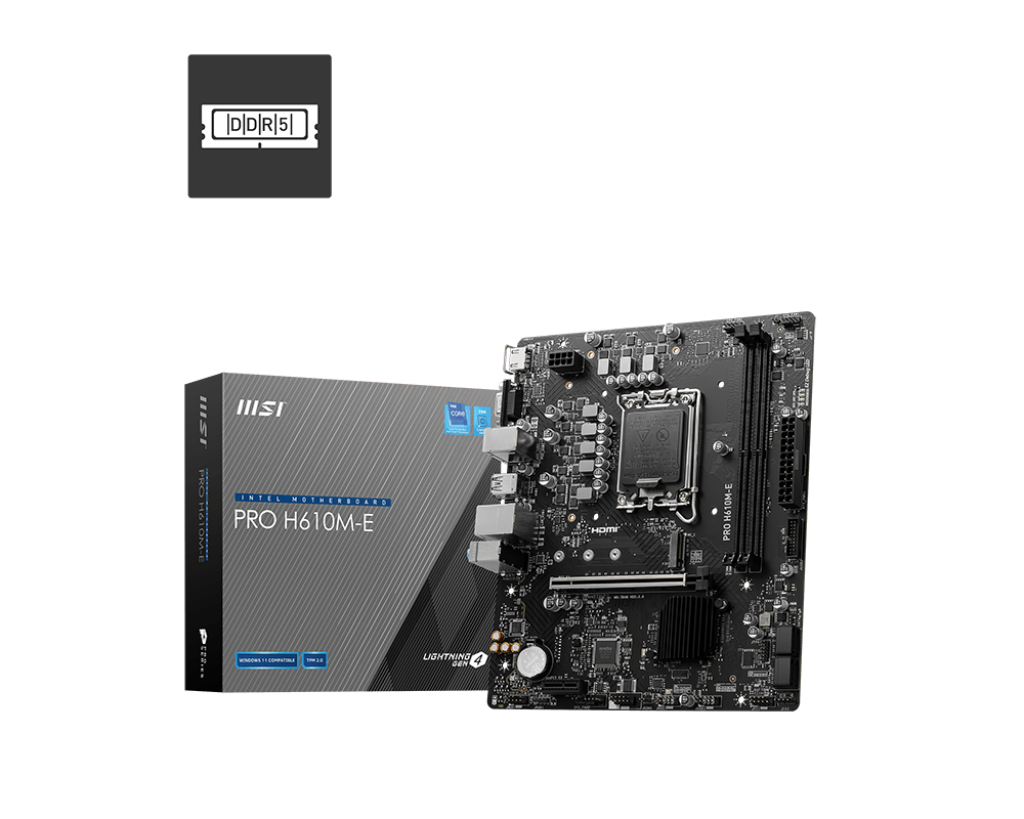

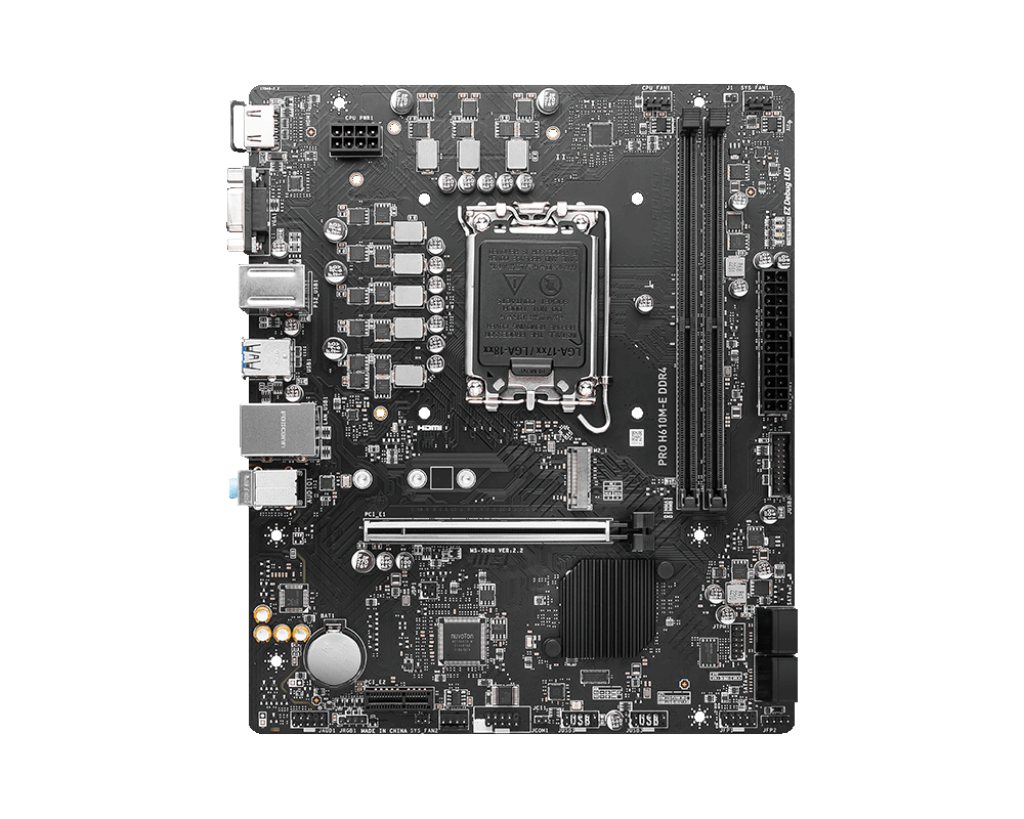

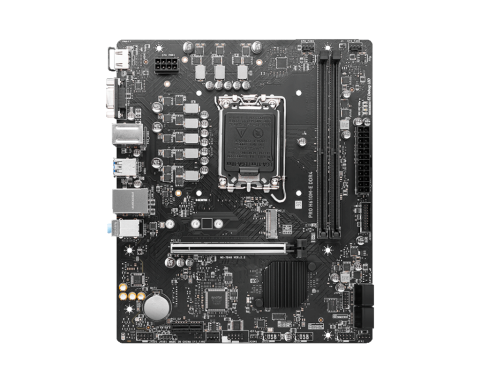

MB MSI PRO H610M-E DDR5 LGA 1700

BIOS type: UEFI AMI

BIOS memory size: 256 Mbit

ACPI version: 6.4

Cooling type: Active

PCI Express x1 (Gen 3.x) slots: 2

PCI Express x16 (Gen 4.x) slots: 1

Audio output channels: 7.1 channels

Component for: PC

Windows operating systems supported: Windows 10, Windows 11

Motherboard chipset family: Intel

Motherboard chipset: Intel H610

Motherboard form factor: micro ATX

Power source type: ATX

USB 3.2 Gen 2 (3.1 Gen 2) connectors:

Number of SATA III connectors: 4

Front panel audio connector: Yes

ATX Power connector (24-pin): Yes

CPU fan connector: Yes

Number of chassis fan connectors: 2

EPS power connector (8-pin): Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2

USB 2.0 connectors: 4

Number of COM connectors: 2

Thunderbolt headers: 2

Audio connector: Yes

Supported memory clock speeds: 5600 MHz

Supported memory module capacities: 4GB, 8GB, 16GB, 32GB

ECC сompatibility: Non-ECC

Number of memory slots: 4

Memory slots type: DIMM

Supported memory types: DDR5-SDRAM

Memory channels: Dual-channel

Maximum internal memory: 96 GB

Ethernet LAN: Yes

Wi-FI: No

Ethernet interface type: 2.5 Gigabit Ethernet

Drivers included: Yes

Cables included: SATA

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2

HDMI version: 1.4

DVI-D ports quantity:

HDMI ports quantity: 1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity:

USB 2.0 ports quantity: 4

Processor manufacturer: Intel

Processor socket: LGA 1700

Supported processor sockets: LGA 1700

PS/2 ports quantity: 1

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity:

VGA (D-Sub) ports quantity: 1

Microphone in: Yes

Ethernet LAN (RJ-45) ports: 1

Headphone outputs: 2

RAID support: Yes

Supported storage drive types: HDD & SSD

Supported storage drive interfaces: M.2, SATA III

RAID levels: 0, 1, 5, 10

Width: 200 mm

Depth: 236.2 mm

MB-Socket: 1700

MB-Format: micro-ATX

RAM-Slots: 2

USB3: 4-8

PCI-Ex1: 1

PCI-Ex16: 1

Onboard-CPU: No

PCI: 0

Garantia Produsului: 36 luni
