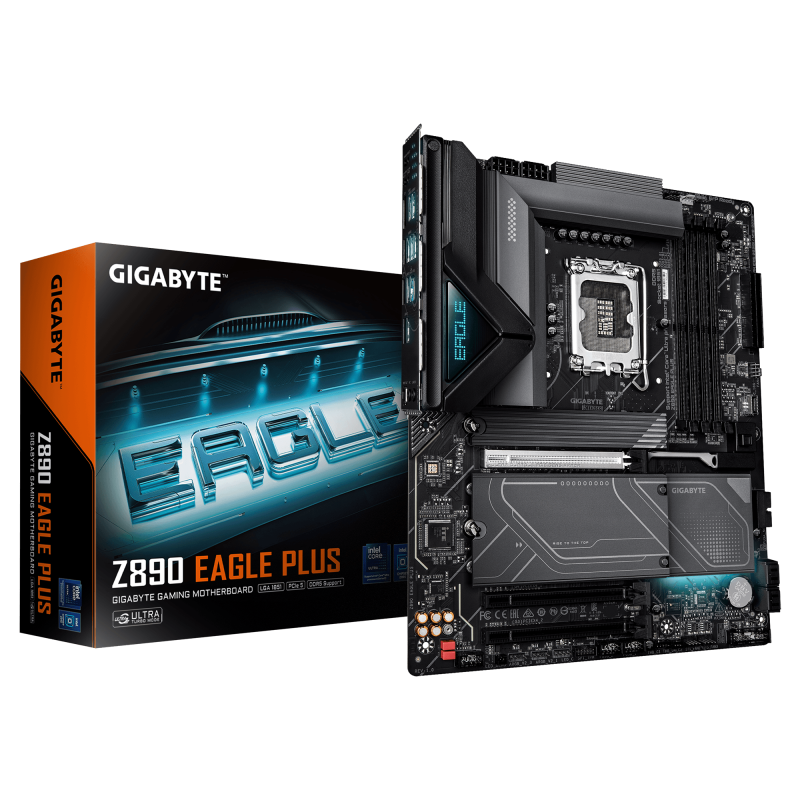

MB GIGABYTE Z890 EAGLE PLUS

Battery weight: 3 g

Number of battery cells: 1

Battery technology: Lithium-Manganese Dioxide (LiMnO2)

Battery type: CR2032

Battery capacity: 220 mAh

Lithium weight per battery: 0.07 g

ACPI version: 5.0

Desktop Management Interface (DMI) version: 2.7

System Management BIOS (SMBIOS) version: 2.7

Clear CMOS button: Yes

BIOS type: UEFI AMI

Clear CMOS jumper: Yes

BIOS memory size: 512 Mbit

Product colour: Black

Cooling type: Passive

PCI Express x16 (Gen 4.x) slots: 2

PCI Express x16 (Gen 5.x) slots: 1

Number of M.2 (M) slots: 4

4th M.2 highest PCI Express generation: 4.0

4th M.2 largest key size: 22110

1st M.2 largest key size: 25110

1st M.2 highest PCI Express generation: 5.0

2nd M.2 largest key size: 22110

2nd M.2 highest PCI Express generation: 4.0

3rd M.2 largest key size: 22110

3rd M.2 highest PCI Express generation: 4.0

Motherboard form factor: ATX

Motherboard chipset family: Intel

PC health monitoring: Fan, Temperature, Voltage, Water cooling

Windows operating systems supported: Windows 11 x64

Motherboard chipset: Intel Z890

Component for: PC

Audio output channels: 7.1 channels

Power source type: ATX

Audio Chip: Realtek ALC1220-VB

DirectX version: 12.0

Parallel processing technology support: Not supported

Maximum resolution: 3840 x 2160 pixels

Thunderbolt headers: 2

USB 2.0 connectors: 2

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1

Number of SATA III connectors: 4

Front panel audio connector: Yes

ATX Power connector (24-pin): Yes

CPU fan connector: Yes

EPS power connector (8-pin): Yes

USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1

Front panel connector: Yes

Number of CPU fan connectors: 2

Number of chassis fan connectors: 4

Number of EPS power connectors (8-pin): 2

TPM connector: Yes

Number of water pump connectors: 2

RGB LED pin header: Yes

Number of RGB LED pin headers: 4

Country of origin: China

Products per shipping (inner) case: 1 pc(s)

Number of memory slots: 4

Memory slots type: DIMM

Unbuffered memory: Yes

Supported memory types: DDR5-SDRAM

Maximum internal memory: 256 GB

Maximum internal memory per slot: 64 GB

Memory channels: Dual-channel

Supported memory clock speed (max): 9466 MHz

ECC сompatibility: Non-ECC

Ethernet interface type: 2.5 Gigabit Ethernet, Gigabit Ethernet, Fast Ethernet

Ethernet LAN: Yes

Wi-FI: No

LAN controller: Realtek RTL8125

Weight: 2.44 kg

Batteries included: Yes

Bundled software: Norton® Internet Security (OEM version)

Screws included: Yes

Package height: 80 mm

Package width: 345 mm

Package depth: 294 mm

Package weight: 2.85 kg

Warranty period: 3 year(s)

DisplayPort version: 2.1

DisplayPorts quantity: 1

DVI-D ports quantity:

HDMI ports quantity: 0

USB 2.0 ports quantity: 4

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity:

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2

Processor manufacturer: Intel

Processor socket: LGA 1851 (Socket V1)

Supported processor sockets: LGA 1851

Compatible processor series: Intel Core Ultra (Series 2)

VGA (D-Sub) ports quantity: 0

Digital audio optical out: 1

S/PDIF out port: Yes

USB4 Gen 2x2 ports quantity: 1

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity:

Line-in: Yes

Headphone outputs: 1

Ethernet LAN (RJ-45) ports: 1

RAID support: Yes

Supported storage drive types: HDD & SSD

Number of HDDs supported: 4

RAID levels: 0, 1, 5, 10

Supported storage drive interfaces: M.2, SATA III

Number of storage drives supported: 8

Height: 35 mm

Width: 305 mm

Depth: 244 mm
