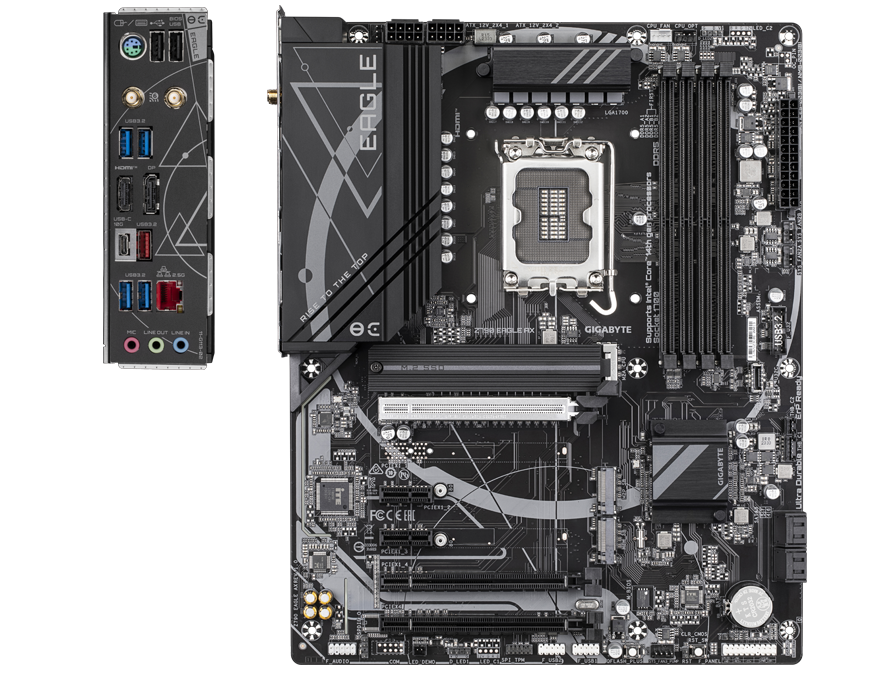

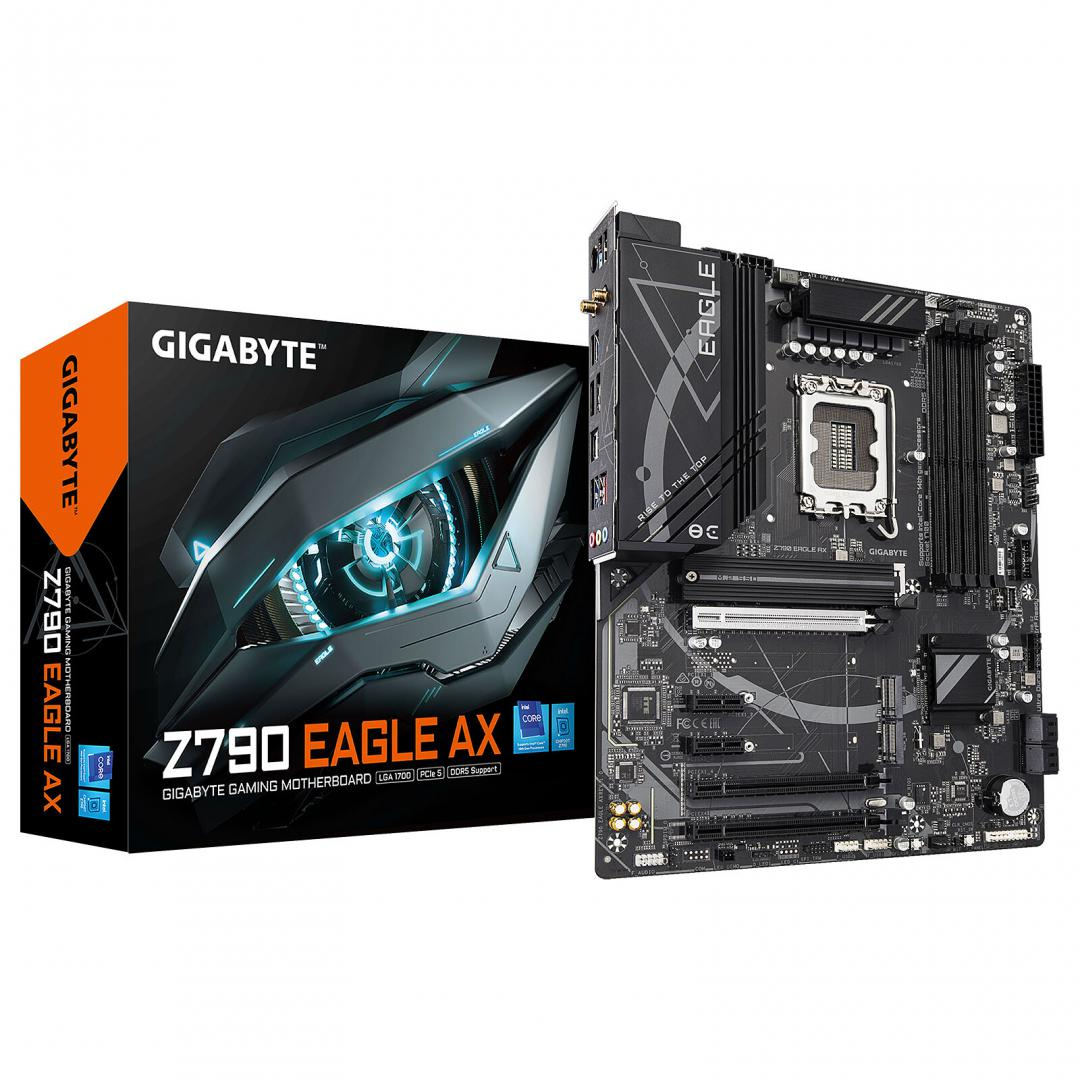

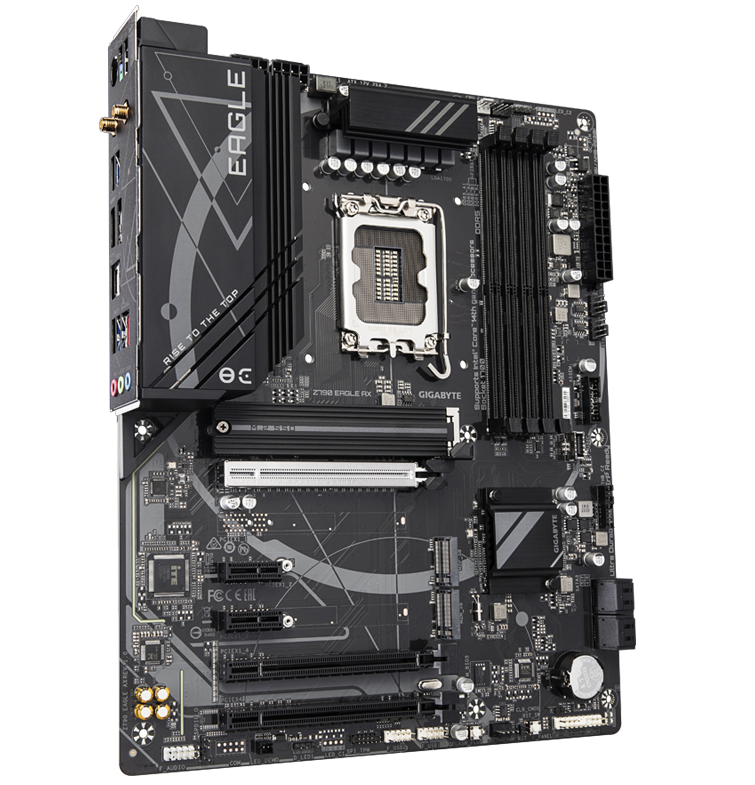

MB GIGABYTE Z790 EAGLE AX LGA1700

Placa de baza GIGABYTE Z790 EAGLE AX LGA1700, 4x DDR5, 1x HDMI 1x DP, 3x PCIE x16 2x PCIE x1, 3x M.2, 4x SATA 6GB/s, ATX
Garantie: 36 luni


Specificatii tehnice

Lithium weight per battery: 0.07 g
Battery weight: 3 g
Number of battery cells: 1
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Battery type: CR2032
Clear CMOS button: Yes
ACPI version: 5.0
Desktop Management Interface (DMI) version: 2.7
System Management BIOS (SMBIOS) version: 2.7
BIOS type: UEFI AMI
BIOS memory size: 256 Mbit
Clear CMOS jumper: Yes
PCI Express x1 (Gen 3.x) slots: 2
PCI Express x16 (Gen 3.x) slots: 1
PCI Express x16 (Gen 5.x) slots: 1
PCI Express x16 (Gen 4.x) slots: 1
Number of M.2 (M) slots: 3
Motherboard chipset: Intel Z790 Express
Product colour: Brown
Power source type: ATX
Audio Chip: Realtek ALC897
Audio output channels: 7.1 channels
Windows operating systems supported: Windows 10 x64, Windows 11 x64
Component for: PC
Motherboard form factor: ATX
Motherboard chipset family: Intel
PC health monitoring: Fan, Temperature, Voltage, Water cooling
Parallel processing technology support: Not supported
HDCP: Yes
On-board graphics card: No
Maximum resolution: 4096 x 2304 pixels
Discrete graphics support: Yes
Total number of SATA connectors: 4
Number of EATX power connectors: 2
Thunderbolt headers: 2
12V power connector: Yes
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
Front panel connector: Yes
TPM connector: Yes
RGB LED pin header: Yes
USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Number of SATA III connectors: 4
Number of SATA II connectors: 0
Number of SATA connectors: 0
Front panel audio connector: Yes
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
EPS power connector (8-pin): Yes
Country of origin: China
Products per shipping (inner) case: 1 pc(s)
Supported memory clock speed (max): 7600 MHz
Supported memory module capacities: 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB, 48GB
Supported memory clock speeds: 4400,4800,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600 MHz
Supported memory types: DDR5-SDRAM
ECC сompatibility: ECC & Non-ECC
Maximum internal memory: 192 GB
Number of memory slots: 4
Memory slots type: DIMM
Unbuffered memory: Yes
Memory channels: Dual-channel
Wi-FI: Yes
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
WLAN controller model: Intel Wi-Fi 6E AX211
Ethernet LAN: Yes
Ethernet interface type: 2.5 Gigabit Ethernet
Bluetooth: Yes
Bluetooth version: 5.3
mSATA ports quantity: 0
Antenna included: Yes
Batteries included: Yes
Cables included: SATA
Bundled software: Norton® Internet Security (OEM version)rnLAN bandwidth management software
Package width: 335 mm
Package depth: 270 mm
Package height: 80 mm
Package weight: 18.1 kg
Processor socket: LGA 1700
Maximum number of SMP processors: 1
Supported processor sockets: LGA 1700
Maximum internal memory supported by processor: 192 GB
Processor manufacturer: Intel
USB connector type: USB Type-A, USB Type-C
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
HDMI ports quantity: 1
HDMI version: 2.1
USB 2.0 ports quantity: 2
USB 3.2 Gen 2x2 Type-C ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
DisplayPort version: 1.2
DisplayPorts quantity: 1
VGA (D-Sub) ports quantity: 0
S/PDIF out port: Yes
DVI-D ports quantity: 0
WiFi-AP antenna jack: 2
PS/2 ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
Microphone in: Yes
Headphone outputs: 1
Number of HDDs supported: 4
Number of storage drives supported: 7
RAID levels: 0, 1, 5, 10
RAID support: Yes
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III
Warranty period: 3 year(s)
Height: 35 mm
Depth: 24.4 mm
Width: 30.5 mm
MB-Format: ATX
MB-Socket: 1700
PCI-Ex16: 3
RAM-Slots: 4
PCI-Ex1: 2
USB3: 4-8
Onboard-CPU: No
PCI: 0
Serial-or-Paralel: No/No
