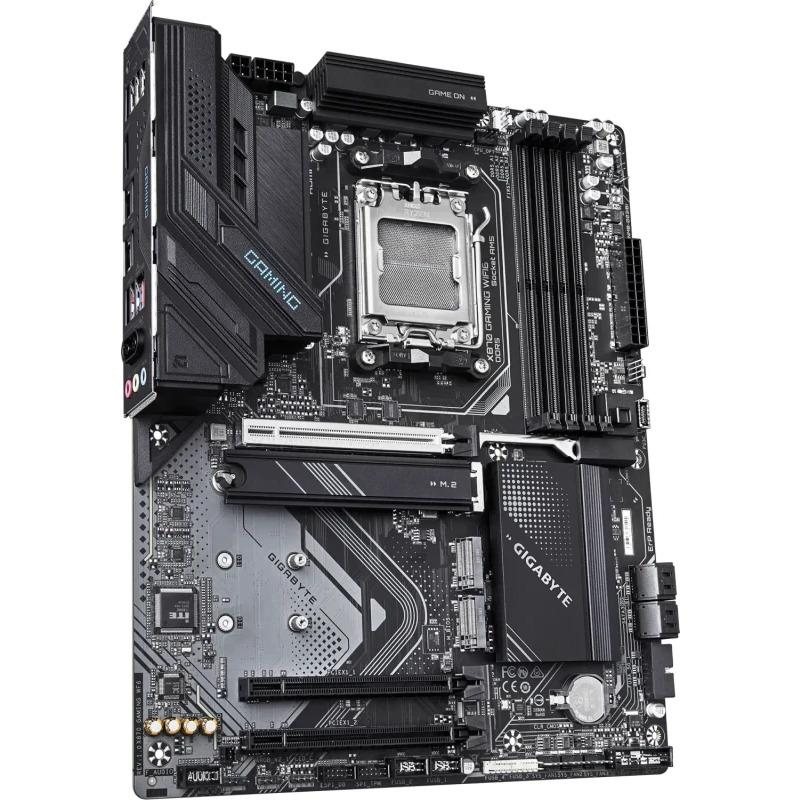

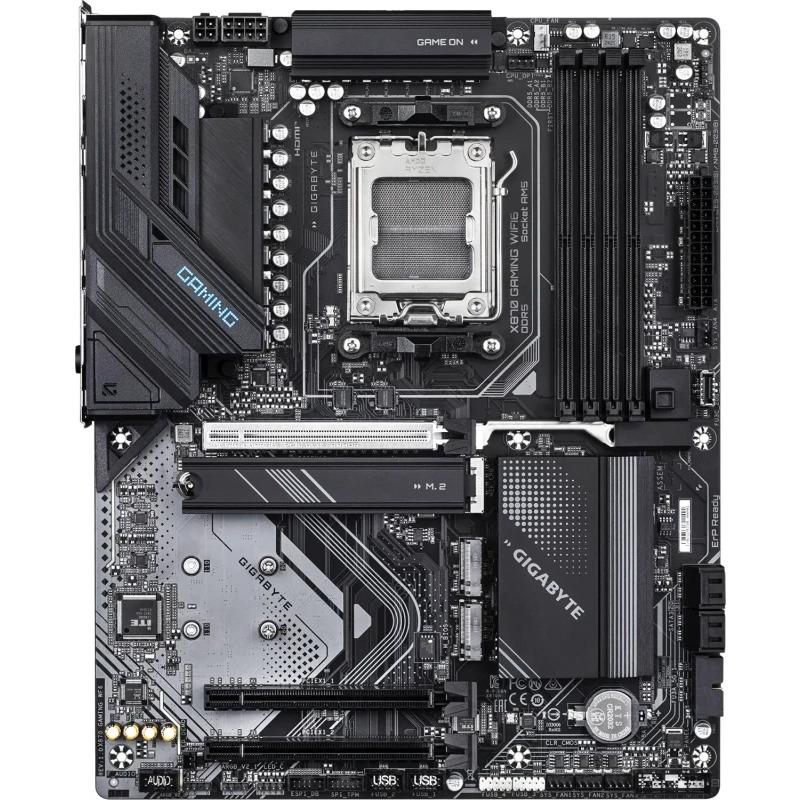

MB GIGABYTE X870 GAMING WIFI6

Placa de Baza GIGABYTE X870 GAMING WIFI6 AM5, 4x DDR5, 2x USB4 1x HDMI, 3x PCIE x16, 3x M.2, 4x SATA 6GB/s, ATX
Garantie: 36 luni


Specificatii tehnice

Lithium weight per battery: 0.07 g
Battery weight: 3 g
Number of battery cells: 1
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Battery type: CR2032
Clear CMOS button: Yes
ACPI version: 5.0
Desktop Management Interface (DMI) version: 2.7
System Management BIOS (SMBIOS) version: 2.7
BIOS type: UEFI AMI
BIOS memory size: 256 Mbit
Clear CMOS jumper: Yes
PCI Express x16 (Gen 5.x) slots: 1
Number of M.2 (M) slots: 3
PCI Express x4 slots: 2
PC health monitoring: Fan, Temperature, Voltage
Motherboard chipset: AMD X870
Product colour: Black
Motherboard chipset family: AMD
Motherboard form factor: ATX
Windows operating systems supported: Windows 10 x64, Windows 11 x64
Component for: PC
Audio output channels: 7.1 channels
DirectX version: 12.0
TPM connector: Yes
RGB LED pin header: Yes
USB 3.2 Gen 2x2 connectors: 1
Total number of SATA connectors: 4
12V power connector: Yes
USB 2.0 connectors: 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 0
Number of SATA III connectors: 4
ATX Power connector (24-pin): Yes
EPS power connector (8-pin): Yes
Country of origin: China
Products per shipping (inner) case: 1 pc(s)
Supported memory types: DDR5-SDRAM
Maximum internal memory: 256 GB
Number of memory slots: 4
Memory slots type: DIMM
Memory channels: Dual-channel
Supported memory clock speeds: 4400,4800,5200,5600,6000,6200,6400,6600,6666,6800,7000,7200,7600,7800,8000 MHz
Supported memory clock speed (max): 8000 MHz
Supported memory module capacities: 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 24GB, 32GB, 40GB, 48GB, 64GB
WLAN controller model: Realtek RTL8851BE
Bluetooth: Yes
Ethernet interface type: 2.5 Gigabit Ethernet
Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
Ethernet LAN: Yes
Wi-FI: Yes
Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 7 (802.11be)
Bluetooth version: 5.3
Weight: 2.23 kg
Bundled software: Norton® Internet Security (OEM version)rnLAN bandwidth management software
Batteries included: Yes
Package weight: 2.53 kg
Package width: 335 mm
Package depth: 270 mm
Package height: 80 mm
Compatible processor series: AMD Ryzen™ 7
Maximum internal memory supported by processor: 256 GB
Processor socket: Socket AM5
Supported processor sockets: Socket AM5
Processor manufacturer: AMD
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 0
USB 2.0 ports quantity: 4
DisplayPorts quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
HDMI ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
S/PDIF out port: Yes
VGA (D-Sub) ports quantity: 0
DVI-D ports quantity: 0
USB4 Gen 2x2 ports quantity: 2
Microphone in: Yes
Ethernet LAN (RJ-45) ports: 1
Number of storage drives supported: 4
Number of HDDs supported: 7
RAID levels: 0, 1, 10
RAID support: Yes
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III
Warranty period: 3 year(s)
Height: 35 mm
Width: 305 mm
Depth: 244 mm
Onboard-CPU: No
PCI: 0
Serial-or-Paralel: Yes/No
