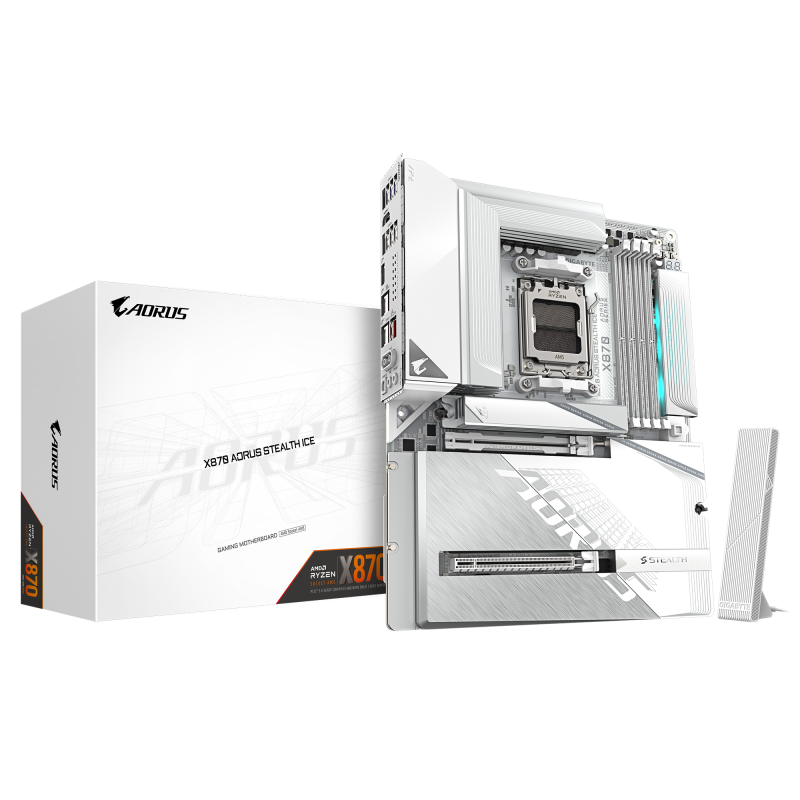

MB GIGABYTE X870 AORUS STEALTH ICE

Placa de Baza GIGABYTE X870E AORUS STEALTH ICE AM5, 4x DDR5, 2x USB4, 1x HDMI,1x Front HDMI, 1x PCIE x16, 3x M.2, 2x SATA 6GB/s, ATX
Garantie: 36 luni


Specificatii tehnice

Lithium weight per battery: 0.07 g
Battery weight: 3 g
Number of battery cells: 1
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Battery type: CR2032
BIOS memory size: 512 Mbit
ACPI version: 5.0
Desktop Management Interface (DMI) version: 2.7
System Management BIOS (SMBIOS) version: 2.7
BIOS type: UEFI AMI
Clear CMOS jumper: Yes
PCI Express x16 (Gen 5.x) slots: 1
PCI Express x16 (Gen 4.x) slots: 1
1st M.2 largest key size: 25110
1st M.2 highest PCI Express generation: 5.0
2nd M.2 largest key size: 22110
3rd M.2 largest key size: 22110
3rd M.2 highest PCI Express generation: 4.0
Number of M.2 (M) slots: 4
4th M.2 highest PCI Express generation: 4.0
2nd M.2 highest PCI Express generation: 5.0
4th M.2 largest key size: 22110
Audio Chip: Realtek ALC1220-VB
Motherboard form factor: ATX
PC health monitoring: Fan, Temperature, Voltage, Water cooling
Windows operating systems supported: Windows 11 x64
Audio output channels: 7.1 channels
Cooling type: Passive
Component for: PC
Motherboard chipset family: AMD
Motherboard chipset: AMD X870
Power source type: ATX
Parallel processing technology support: Not supported
DirectX version: 12.0
Maximum resolution: 4096 x 2160 pixels
USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 0
Front panel audio connector: Yes
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
EPS power connector (8-pin): Yes
Number of SATA III connectors: 2
USB 3.2 Gen 2x2 connectors: 1
12V power connector: Yes
Front panel connector: Yes
Number of CPU fan connectors: 2
TPM connector: Yes
RGB LED pin header: Yes
Number of RGB LED pin headers: 4
Number of EPS power connectors (8-pin): 1
Number of water pump connectors: 3
Number of chassis fan connectors: 6
Peripheral (Molex) power connectors (4-pin): 1
Number of temperature sensor headers: 2
Country of origin: China
Products per shipping (inner) case: 1 pc(s)
Supported memory clock speeds: 8200,8000,7950,7900,7800,7600,7400,7200,7000,6800,6600,6400,6200,6000,5800,5600,5200,4800,4400 MHz
Supported memory clock speed (max): 8200 MHz
ECC сompatibility: Non-ECC
Number of memory slots: 4
Memory slots type: DIMM
Unbuffered memory: Yes
Supported memory types: DDR5-SDRAM
Maximum internal memory: 256 GB
Maximum internal memory per slot: 64 GB
LAN controller: Realtek RTL8126
WLAN controller model: Qualcomm QCNCM865
Ethernet interface type: 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Weight: 4.4 kg
Bundled software: Norton® Internet Security (OEM version)
Batteries included: Yes
Antenna included: Yes
Screws included: Yes
Package depth: 375 mm
Package height: 118.5 mm
Package width: 315.5 mm
Package weight: 5.07 kg
Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Processor socket: Socket AM5
Supported processor sockets: Socket AM5
WiFi-AP antenna jack: 2
Digital audio optical out: 1
VGA (D-Sub) ports quantity: 0
S/PDIF out port: Yes
Line-in: Yes
USB4 Gen 3x2 ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 0
USB 2.0 ports quantity: 4
DVI-D ports quantity: 0
RAID support: Yes
RAID levels: 0, 1, 5, 10
Supported storage drive types: HDD & SSD
Number of storage drives supported: 6
Number of HDDs supported: 2
Supported storage drive interfaces: M.2, PCI Express 4.0, PCI Express 5.0, SATA III
Depth: 24.4 mm
Width: 30.5 mm
Height: 35 mm
MB-Format: ATX
PCI-Ex1: 0
RAM-Slots: 4
MB-Socket: AM5
PCI: 0
Serial-or-Paralel: No/No
USB3: 4-8
PCI-Ex16: 1
Onboard-CPU: No
