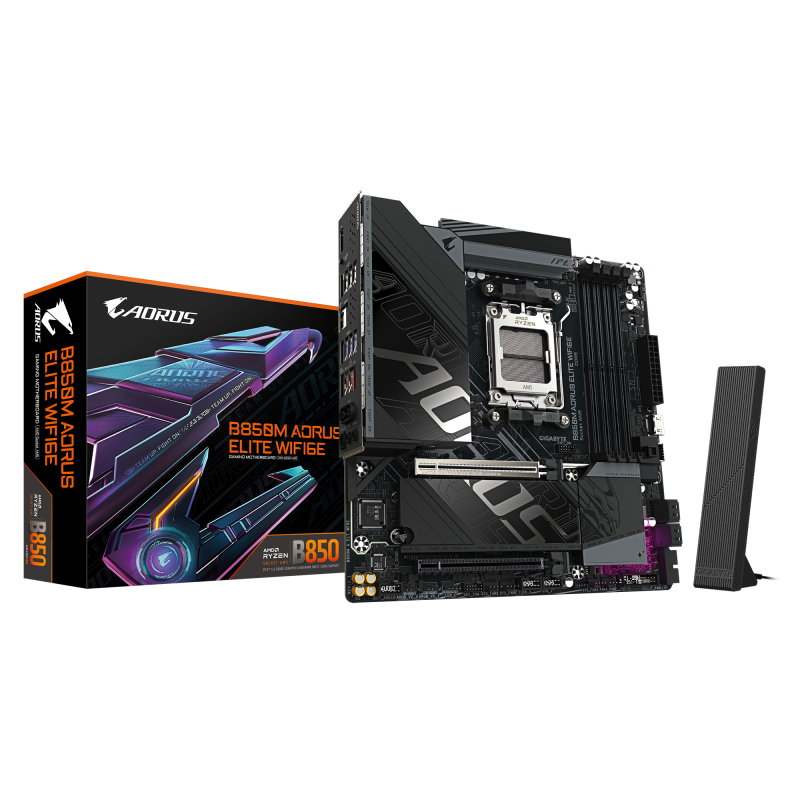

MB Gigabyte B850M AORUS ELITE WIFI6E

Placa de Baza GIGABYTE B850M AORUS ELITE WIFI6E AM5, 4x DDR5, 1x DP 1x HDMI, 2x PCIE x16, 2x M.2, 4x SATA 6GB/s, mATX
Garantie: 36 luni


Specificatii tehnice

Lithium weight per battery: 0.07 g
Battery weight: 3 g
Number of battery cells: 1
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Battery type: CR2032
ACPI version: 5.0
Desktop Management Interface (DMI) version: 2.7
System Management BIOS (SMBIOS) version: 2.7
BIOS type: UEFI AMI
BIOS memory size: 256 Mbit
Clear CMOS jumper: Yes
1st M.2 largest key size: 25110
1st M.2 highest PCI Express generation: 5.0
2nd M.2 largest key size: 22110
2nd M.2 highest PCI Express generation: 4.0
PCI Express x16 (Gen 3.x) slots: 1
PCI Express x16 (Gen 5.x) slots: 1
Number of M.2 (M) slots: 2
Cooling type: Passive
Audio output channels: 7.1 channels
Windows operating systems supported: Windows 10 x64, Windows 11 x64
Component for: PC
PC health monitoring: Fan, Temperature, Voltage, Water cooling
Motherboard form factor: micro ATX
Motherboard chipset family: AMD
Motherboard chipset: AMD B850
Audio Chip: Realtek ALC1220-VB
Product colour: Black
Power source type: ATX
Parallel processing technology support: Not supported
DirectX version: 12.0
Maximum resolution: 3840 x 2160 pixels
Front panel connector: Yes
Number of CPU fan connectors: 2
Number of chassis fan connectors: 4
TPM connector: Yes
Number of water pump connectors: 2
RGB LED pin header: Yes
Number of RGB LED pin headers: 4
USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 0
Number of SATA III connectors: 4
Front panel audio connector: Yes
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
EPS power connector (8-pin): Yes
USB 3.2 Gen 2x2 connectors: 1
12V power connector: Yes
Number of EPS power connectors (8-pin): 1
Products per shipping (inner) case: 1 pc(s)
Supported memory clock speeds: 8200,8000,7950,7900,7800,7600,7400,7200,7000,6800,6600,6400,6200,6000,5800,5600,5200,4800,4400 MHz
ECC сompatibility: Non-ECC
Supported memory clock speed (max): 8200 MHz
Supported memory types: DDR5-SDRAM
Maximum internal memory: 256 GB
Maximum internal memory per slot: 64 GB
Number of memory slots: 4
Memory slots type: DIMM
Unbuffered memory: Yes
Memory channels: Dual-channel
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Ethernet LAN: Yes
Wi-FI: Yes
WLAN controller model: Realtek RTL8852CE
Ethernet interface type: 2.5 Gigabit Ethernet
LAN controller: Realtek RTL8125
Bluetooth version: 5.3
Bluetooth: Yes
Weight: 17.8 kg
Bundled software: Norton® Internet Security (OEM version)rnLAN bandwidth management software
Batteries included: Yes
Antenna included: Yes
Screws included: Yes
Package width: 270 mm
Package depth: 268 mm
Package weight: 1.97 kg
Package height: 68 mm
Processor socket: Socket AM5
Supported processor sockets: Socket AM5
Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Processor manufacturer: AMD
DisplayPort version: 1.4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 0
USB 2.0 ports quantity: 4
HDMI ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
HDMI version: 1.4
Digital audio optical out: 1
DisplayPorts quantity: 1
VGA (D-Sub) ports quantity: 0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 5
S/PDIF out port: Yes
Line-in: Yes
WiFi-AP antenna jack: 2
DVI-D ports quantity: 0
Ethernet LAN (RJ-45) ports: 1
Headphone outputs: 1
Supported storage drive interfaces: M.2, PCI Express 4.0, PCI Express 5.0, SATA III
Number of storage drives supported: 6
RAID levels: 0, 1, 10
Number of HDDs supported: 4
Supported storage drive types: HDD & SSD
RAID support: Yes
Warranty period: 3 year(s)
Depth: 24.4 mm
Height: 35 mm
Width: 244 mm
MB-Format: ATX
PCI-Ex1: 0
RAM-Slots: 4
MB-Socket: AM5
PCI-Ex16: 2
USB3: 4-8
Onboard-CPU: No
PCI: 0
Serial-or-Paralel: No/No
