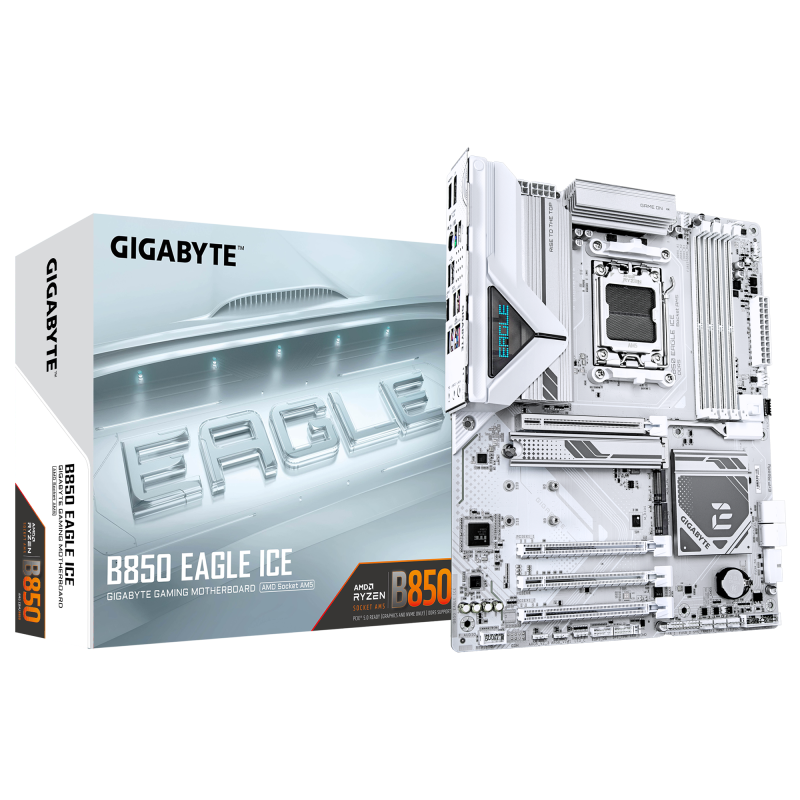

MB Gigabyte B850 EAGLE ICE AM5

Placa de Baza GIGABYTE B850 EAGLE ICE AM5, 4x DDR5, 1x DP 1x HDMI, 1x PCIE 5.0 x16 1x PCIE 4.0 x16 2x PCIE 3.0 x16, 3x M.2, 4x SATA 6GB/s, ATX
Garantie: 36 luni


Specificatii tehnice

Lithium weight per battery: 0.07 g
Battery weight: 3 g
Number of battery cells: 1
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Battery type: CR2032
BIOS type: UEFI AMI
BIOS memory size: 256 Mbit
Clear CMOS jumper: Yes
ACPI version: 5.0
Desktop Management Interface (DMI) version: 2.7
System Management BIOS (SMBIOS) version: 2.7
Number of M.2 (M) slots: 3
1st M.2 highest PCI Express generation: 5.0
2nd M.2 largest key size: 22110
2nd M.2 highest PCI Express generation: 4.0
3rd M.2 largest key size: 22110
3rd M.2 highest PCI Express generation: 4.0
PCI Express x16 (Gen 5.x) slots: 1
PCI Express x16 (Gen 4.x) slots: 1
PCI Express x16 (Gen 3.x) slots: 2
1st M.2 largest key size: 22110
Motherboard chipset: AMD B850
Product colour: White
Power source type: ATX
Audio Chip: Realtek ALC897
Cooling type: Passive
Component for: PC
Audio output channels: 7.1 channels
Motherboard form factor: ATX
PC health monitoring: Fan, Temperature, Voltage, Water cooling
Windows operating systems supported: Windows 11 x64
Motherboard chipset family: AMD
Parallel processing technology support: Not supported
DirectX version: 12.0
Maximum resolution: 4096 x 2160 pixels
HDCP: Yes
USB 2.0 connectors: 2
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 0
Number of SATA III connectors: 4
Front panel audio connector: Yes
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
EPS power connector (8-pin): Yes
Front panel connector: Yes
Number of CPU fan connectors: 2
Number of chassis fan connectors: 4
TPM connector: Yes
Number of water pump connectors: 2
Number of RGB LED pin headers: 4
Number of EPS power connectors (8-pin): 1
12V power connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
Peripheral (Molex) power connectors (4-pin): 1
Country of origin: China
Products per shipping (inner) case: 1 pc(s)
Supported memory clock speeds: 8200,8000,7950,7900,7800,7600,7400,7200,7000,6800,6600,6400,6200,6000,5800,5600,5200,4800,4400 MHz
ECC сompatibility: Non-ECC
Supported memory clock speed (max): 8200 MHz
Number of memory slots: 4
Memory slots type: DIMM
Unbuffered memory: Yes
Supported memory types: DDR5-SDRAM
Maximum internal memory: 256 GB
Maximum internal memory per slot: 64 GB
Memory channels: Dual-channel
Ethernet LAN: Yes
Wi-FI: No
Ethernet interface type: 2.5 Gigabit Ethernet
LAN controller: Realtek RTL8125
Weight: 1.65 kg
Batteries included: Yes
Bundled software: Norton® Internet Security (OEM version)rnLAN bandwidth management software
Screws included: Yes
Package weight: 1.88 kg
Package width: 335 mm
Package depth: 270 mm
Package height: 80 mm
Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Processor socket: Socket AM5
Supported processor sockets: Socket AM5
Processor manufacturer: AMD
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 0
USB 2.0 ports quantity: 4
Line-in: Yes
DisplayPort version: 1.4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
HDMI ports quantity: 1
HDMI version: 2.1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
DisplayPorts quantity: 1
VGA (D-Sub) ports quantity: 0
PS/2 ports quantity: 1
DVI-D ports quantity: 0
Microphone in: Yes
Headphone outputs: 1
Ethernet LAN (RJ-45) ports: 1
RAID levels: 0, 1, 10
Supported storage drive interfaces: M.2, PCI Express 4.0, PCI Express 5.0, SATA III
RAID support: Yes
Number of HDDs supported: 4
Number of storage drives supported: 7
Supported storage drive types: HDD & SSD
Warranty period: 3 year(s)
Width: 30.5 mm
Height: 35 mm
Depth: 24.4 mm
MB-Format: ATX
MB-Socket: 1700
PCI-Ex1: 0
PCI-Ex16: 3
RAM-Slots: 2
USB3: 4-8
Onboard-CPU: No
PCI: 0
Serial-or-Paralel: No/No
