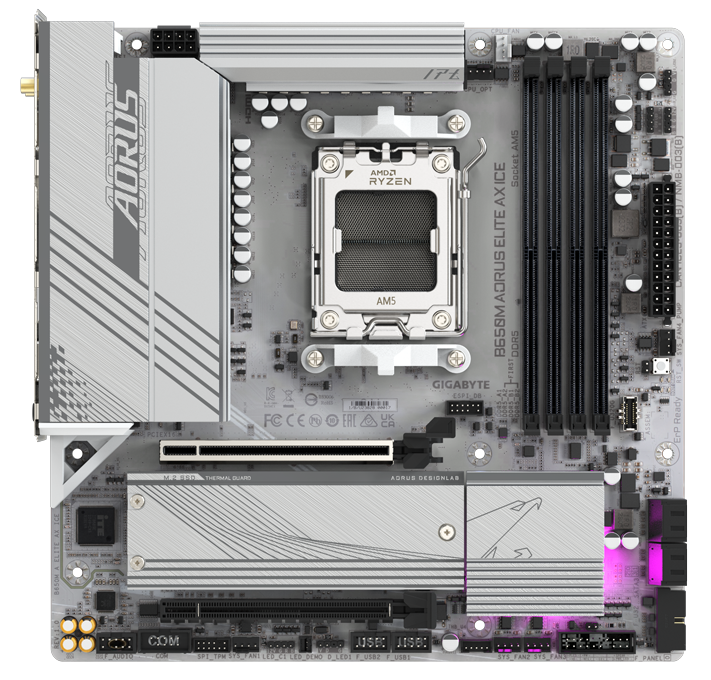

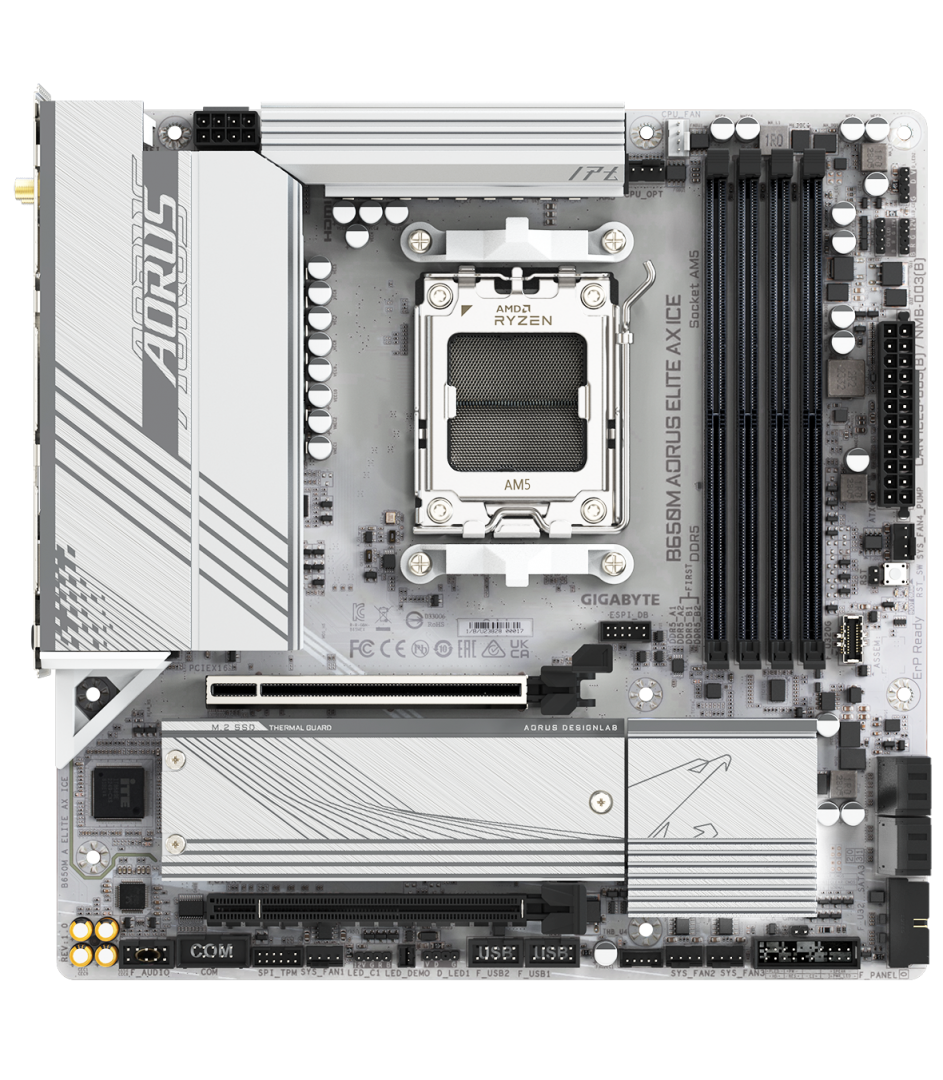

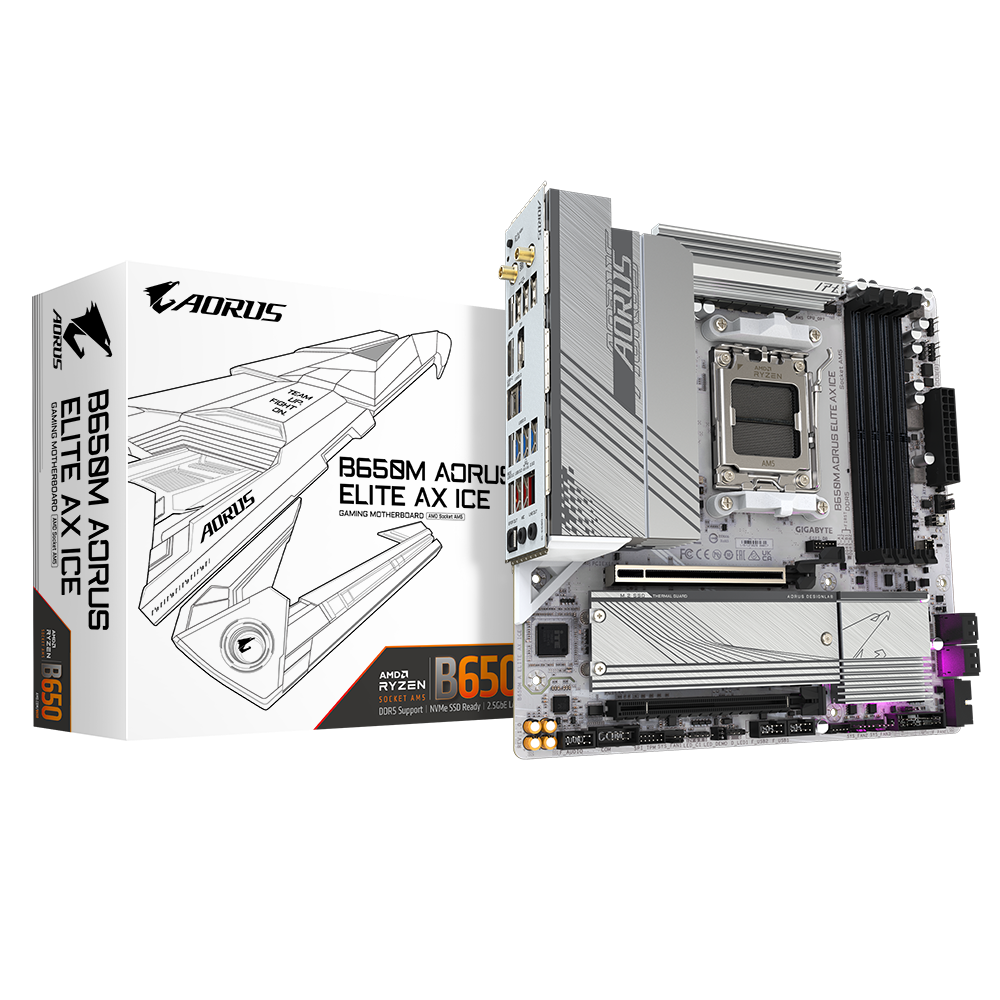

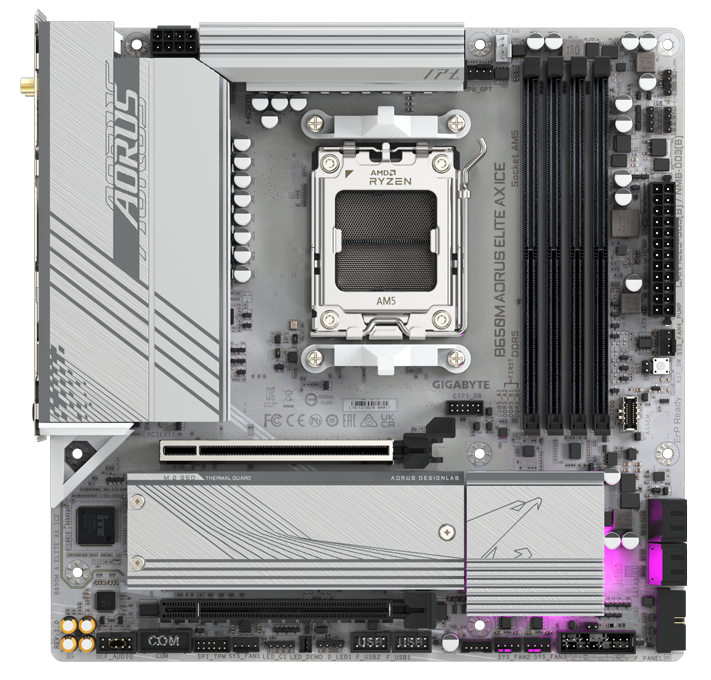

MB Gigabyte B650M AORUS ELITE AX ICE

Placa de Baza GIGABYTE B650M AORUS ELITE AX ICE AM5, 4x DDR5, 1x DP 1x HDMI, 2x PCIE x16, 2x M.2, 4x SATA 6gb/s, mATX
Garantie: 36 luni


Specificatii tehnice

Lithium weight per battery: 0.07 g
Battery weight: 3 g
Number of battery cells: 1
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Battery type: CR2032
ACPI version: 5.0
Desktop Management Interface (DMI) version: 2.7
System Management BIOS (SMBIOS) version: 2.7
BIOS type: UEFI AMI
BIOS memory size: 256 Mbit
Clear CMOS jumper: Yes
1st M.2 largest key size: 25110
1st M.2 highest PCI Express generation: 5.0
2nd M.2 highest PCI Express generation: 4.0
PCI Express x16 (Gen 4.x) slots: 2
Number of M.2 (M) slots: 2
2nd M.2 largest key size: 25110
Motherboard chipset: AMD B650
Product colour: White
Power source type: ATX
Windows operating systems supported: Windows 10 x64, Windows 11 x64
Audio output channels: 7.1 channels
Audio Chip: Realtek ALC897
Component for: PC
PC health monitoring: Fan, Temperature, Voltage, Water cooling
Motherboard form factor: micro ATX
Motherboard chipset family: AMD
DirectX version: 12.0
Maximum resolution: 4096 x 2304 pixels
Discrete graphics support: Yes
HDCP: Yes
Parallel processing technology support: Not supported
USB 3.2 Gen 2x2 connectors: 1
12V power connector: Yes
Serial port headers: 1
Front panel connector: Yes
Number of CPU fan connectors: 2
Number of chassis fan connectors: 4
TPM connector: Yes
Number of water pump connectors: 2
RGB LED pin header: Yes
USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 0
Number of SATA III connectors: 4
Front panel audio connector: Yes
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
Number of RGB LED pin headers: 5
Country of origin: China
Supported memory clock speeds: 4400,4800,5200,5600,6000,6200,6400,6600,6666,6800,7000,7200,7600,7800,8000 MHz
Supported memory clock speed (max): 8000 MHz
Supported memory types: DDR5-SDRAM
Maximum internal memory: 256 GB
Maximum internal memory per slot: 64 GB
ECC сompatibility: Non-ECC
Number of memory slots: 4
Memory slots type: DIMM
Unbuffered memory: Yes
Memory channels: Dual-channel
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Ethernet LAN: Yes
Wi-FI: Yes
WLAN controller model: Realtek RTL8852CE
Ethernet interface type: 2.5 Gigabit Ethernet
LAN controller: Realtek RTL8125
Bluetooth version: 5.3
Bundled software: Norton® Internet Security (OEM version)rnLAN bandwidth management software
Antenna included: Yes
Screws included: Yes
Package height: 68 mm
Package width: 270 mm
Package depth: 268 mm
Package weight: 1.89 kg
Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Processor manufacturer: AMD
Processor socket: Socket AM5
Supported processor sockets: Socket AM5
WiFi-AP antenna jack: 2
DisplayPort version: 1.4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 0
USB 2.0 ports quantity: 4
HDMI ports quantity: 1
HDMI version: 2.1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
Digital audio optical out: 1
DisplayPorts quantity: 1
VGA (D-Sub) ports quantity: 0
Line-in: Yes
DVI-D ports quantity: 0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 5
S/PDIF out port: Yes
Headphone outputs: 1
Supported storage drive interfaces: M.2, SATA III
Supported storage drive types: HDD & SSD
RAID support: Yes
Number of HDDs supported: 4
RAID levels: 0, 1, 10
Number of storage drives supported: 6
Height: 35 mm
Width: 244 mm
Depth: 24.4 mm
Onboard-CPU: No
PCI: 0
Serial-or-Paralel: No/No
