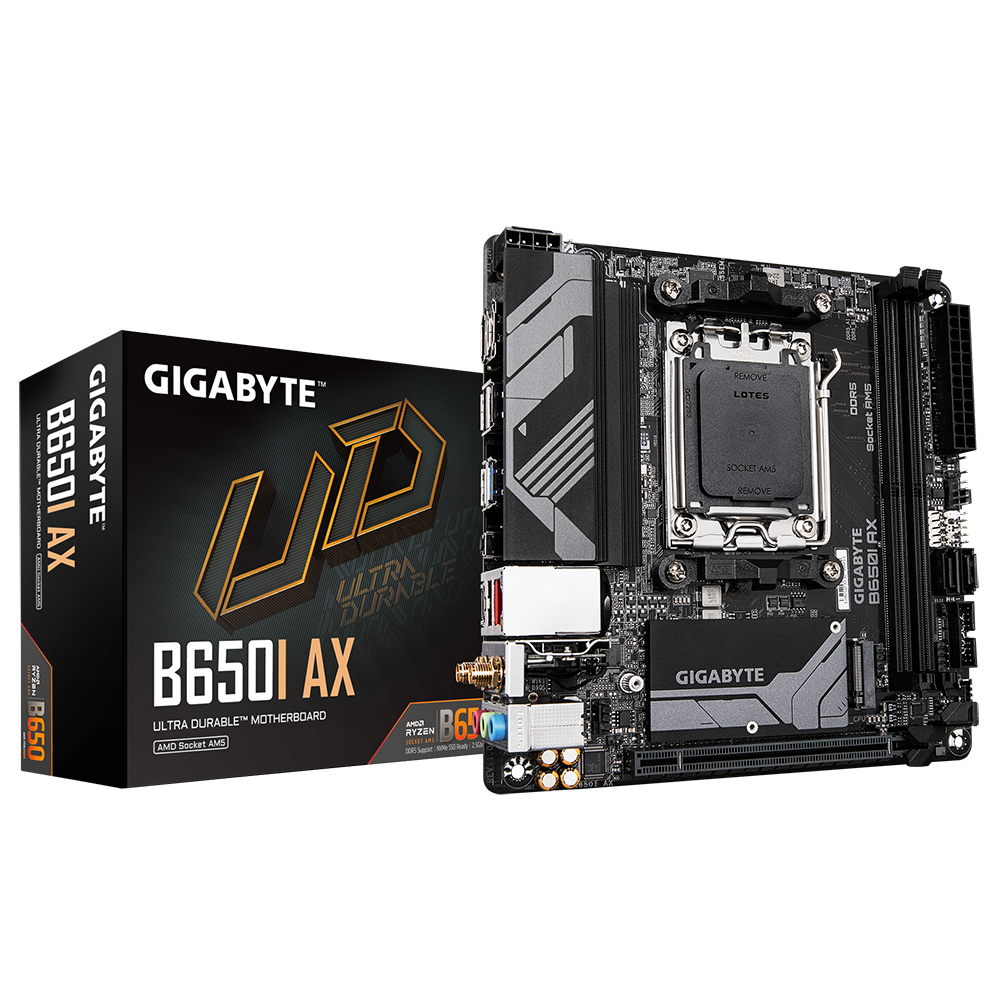

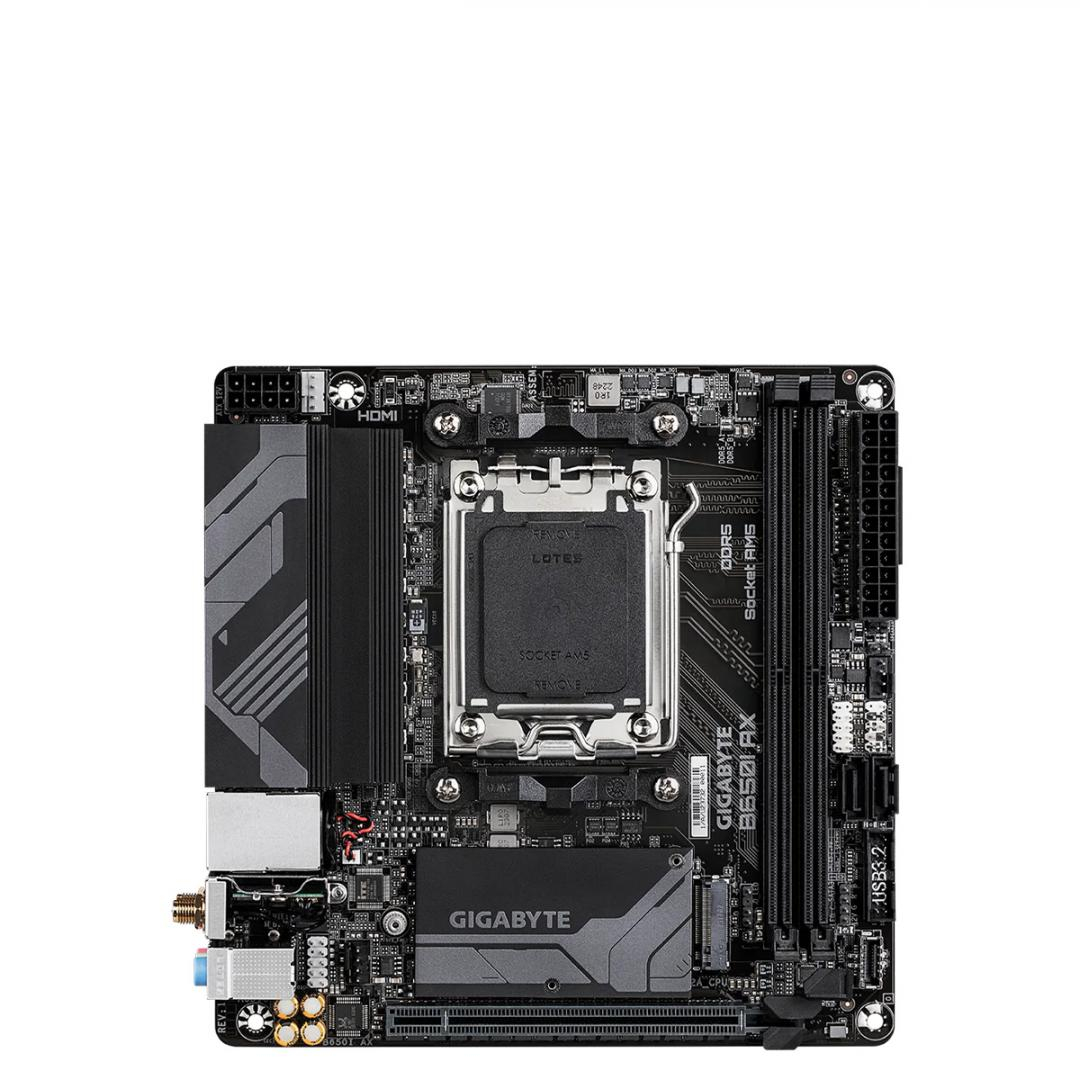

MB Gigabyte B650I AX AM5

Lithium weight per battery: 0.07 g

Battery weight: 3 g

Number of battery cells: 1

Battery technology: Lithium-Manganese Dioxide (LiMnO2)

Battery type: CR2032

BIOS type: UEFI AMI

BIOS memory size: 256 Mbit

Clear CMOS jumper: Yes

ACPI version: 5.0

Desktop Management Interface (DMI) version: 2.7

System Management BIOS (SMBIOS) version: 2.7

Product colour: Brown

1st M.2 largest key size: 2280

1st M.2 highest PCI Express generation: 4.0

Number of M.2 (M) slots: 1

PCI Express x16 (Gen 4.x) slots: 1

Audio output channels: 7.1 channels

Component for: PC

Audio Chip: Realtek ALC897

Windows operating systems supported: Windows 10 x64, Windows 11 x64

PC health monitoring: Fan, Temperature, Voltage

Motherboard chipset: AMD B650

Motherboard form factor: mini ITX

Motherboard chipset family: AMD

Power source type: ATX

Discrete graphics support: Yes

Parallel processing technology support: Not supported

DirectX version: 12.0

HDCP: Yes

Maximum resolution: 4096 x 2160 pixels

Front panel connector: Yes

RGB LED pin header: Yes

USB 3.2 Gen 2 (3.1 Gen 2) connectors:

Front panel audio connector: Yes

ATX Power connector (24-pin): Yes

CPU fan connector: Yes

Number of chassis fan connectors: 2

EPS power connector (8-pin): Yes

Number of SATA III connectors: 2

12V power connector: Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2

Chassis intrusion connector: Yes

Number of CPU fan connectors: 1

USB 2.0 connectors: 1

Number of EATX power connectors: 1

Number of RGB LED pin headers: 2

Country of origin: China

Supported memory clock speeds: 4400,4800,5200,5600,6000,6200,6400 MHz

Supported memory clock speed (max): 6400 MHz

ECC сompatibility: Non-ECC

Number of memory slots: 2

Maximum internal memory: 128 GB

Memory channels: Dual-channel

Supported memory types: DDR5-SDRAM

Maximum internal memory per slot: 64 GB

Memory slots type: DIMM

Unbuffered memory: Yes

Ethernet interface type: 2.5 Gigabit Ethernet

LAN controller: Realtek RTL8125

Top Wi-Fi standard: Wi-Fi 6E (802.11ax)

Ethernet LAN: Yes

Wi-FI: Yes

WLAN controller model: Realtek RTL8852CE

Bluetooth version: 5.3

Antenna included: Yes

Bundled software: Norton® Internet Security (OEM version)nLAN bandwidth management software

Screws included: Yes

Package width: 222 mm

Package height: 65 mm

Package weight: 879 g

Package depth: 180 mm

DisplayPorts quantity: 1

DVI-D ports quantity:

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1

HDMI version: 2.1

USB 2.0 ports quantity: 3

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity:

HDMI ports quantity: 1

DisplayPort version: 1.4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1

Processor manufacturer: AMD

Processor socket: Socket AM5

Supported processor sockets: Socket AM5

Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series

Microphone in: Yes

Headphone outputs: 1

VGA (D-Sub) ports quantity: 0

WiFi-AP antenna jack: 2

Line-in: Yes

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1

RAID support: Yes

RAID levels: 0, 1

Supported storage drive types: HDD & SSD

Supported storage drive interfaces: M.2, SATA III

Number of HDDs supported: 2

Number of storage drives supported: 3

Height: 35 mm

Width: 170 mm

Depth: 170 mm

PCI-Ex1: 0

RAM-Slots: 2

MB-Socket: AM5

MB-Format: mini-ITX

PCI: 0

Serial-or-Paralel: No/No

USB3: 4-8

PCI-Ex16: 1

Onboard-CPU: No

Garantia Produsului: 36 luni
