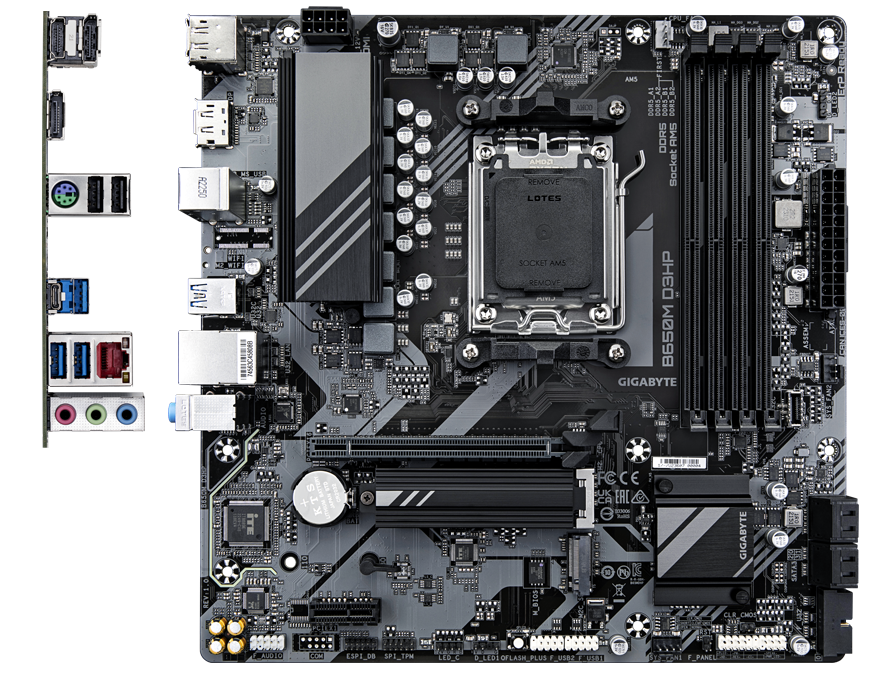

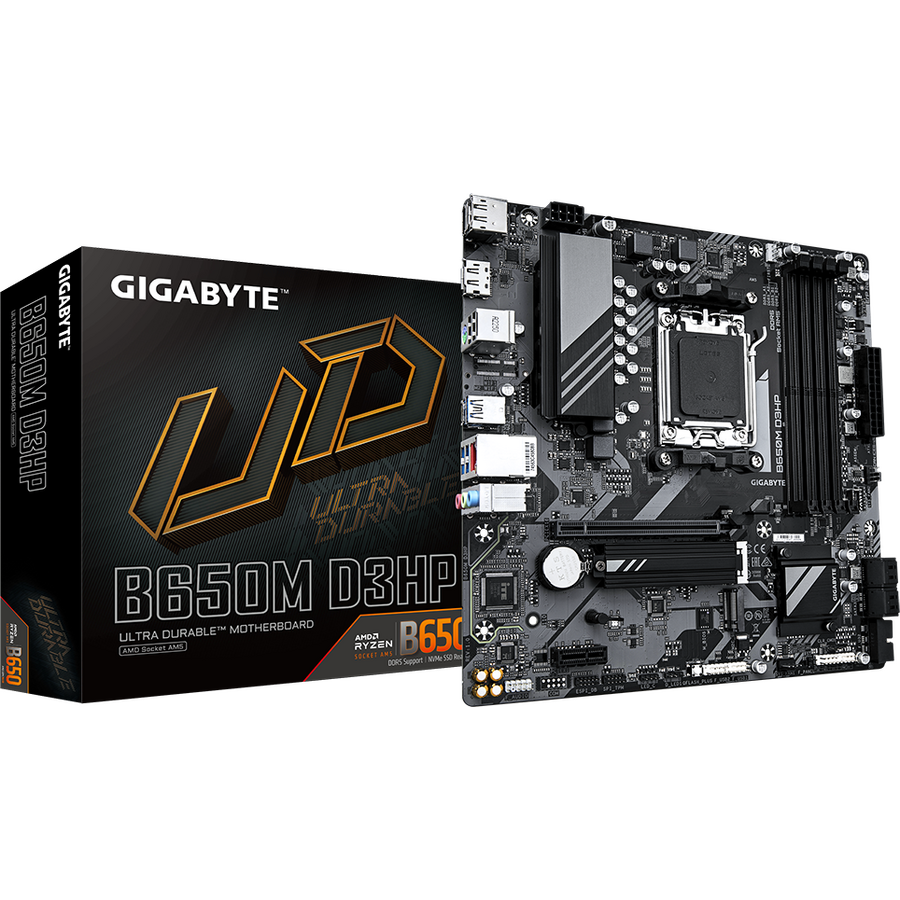

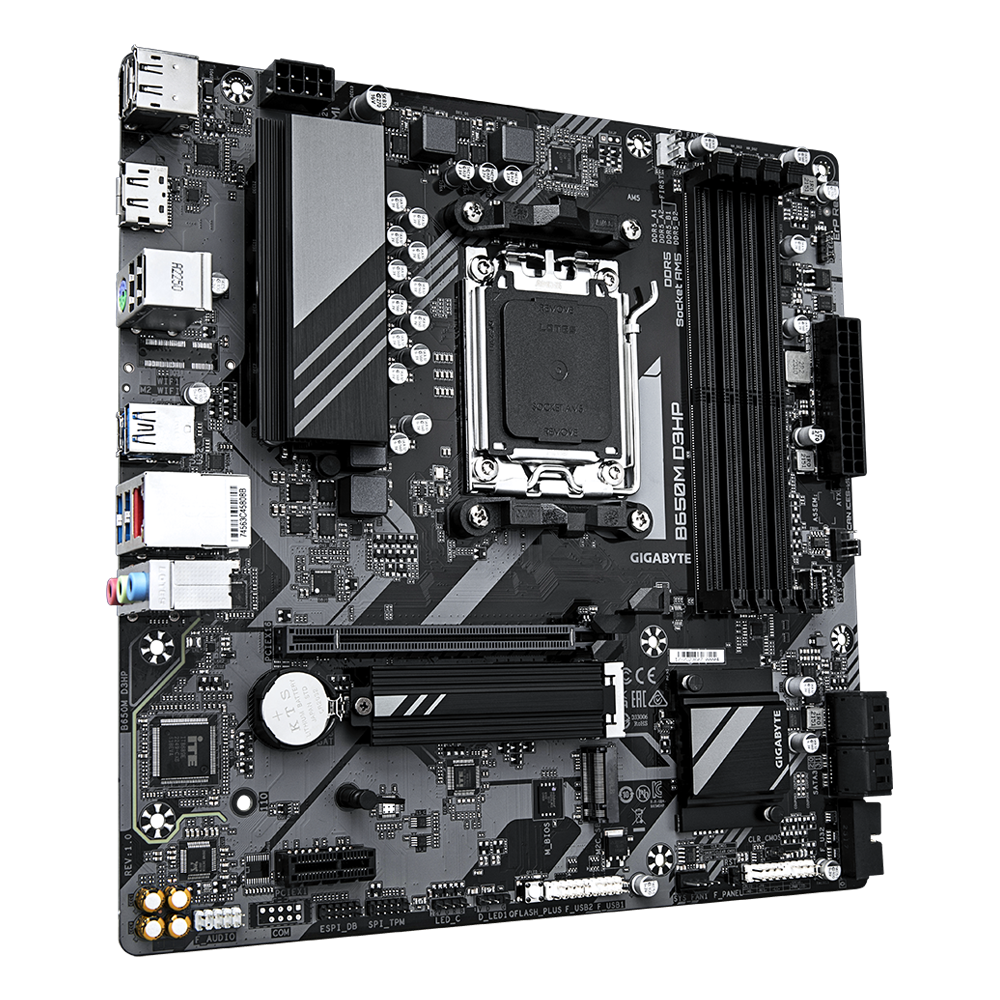

MB GIGABYTE B650 D3HP AM5 DDR5

Placa de baza GIGABYTE B650M D3HP AMD B650 AM5, 4x DDR5, 2x DP 1x HDMI, 1x PCIE x16, 1x PCIE x1, 2x M.2, 4x SATA 6GB/s
Garantie: 36 luni


Specificatii tehnice

Lithium weight per battery: 0.07 g
Battery weight: 3 g
Number of battery cells: 1
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Battery type: CR2032
ACPI version: 5.0
Desktop Management Interface (DMI) version: 2.7
System Management BIOS (SMBIOS) version: 2.7
BIOS type: UEFI AMI
BIOS memory size: 256 Mbit
Clear CMOS jumper: Yes
2nd M.2 largest key size: 22110
2nd M.2 highest PCI Express generation: 4.0
PCI Express x1 (Gen 3.x) slots: 1
PCI Express x16 (Gen 4.x) slots: 1
Number of M.2 (M) slots: 2
1st M.2 highest PCI Express generation: 4.0
1st M.2 largest key size: 2580
Audio Chip: Realtek ALC897
Product colour: Brown
Power source type: ATX
Windows operating systems supported: Windows 10 x64, Windows 11 x64
Component for: PC
Audio output channels: 7.1 channels
Motherboard form factor: micro ATX
Motherboard chipset family: AMD
PC health monitoring: Fan, Temperature, Voltage
Motherboard chipset: AMD B650
Discrete graphics support: Yes
Parallel processing technology support: Not supported
DirectX version: 12.0
Maximum resolution: 4096 x 2160 pixels
HDCP: Yes
12V power connector: Yes
Number of EPS power connectors (8-pin): 1
Number of CPU fan connectors: 1
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
Front panel connector: Yes
TPM connector: Yes
RGB LED pin header: Yes
USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Number of SATA III connectors: 4
Front panel audio connector: Yes
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
Number of chassis fan connectors: 2
EPS power connector (8-pin): Yes
Number of RGB LED pin headers: 3
Country of origin: China
Products per shipping (inner) case: 1 pc(s)
Supported memory clock speeds: 7600,7200,7000,6800,6600,6400,6200,6000,5600,5200,4800 MHz
Supported memory types: DDR5-SDRAM
Maximum internal memory: 256 GB
Maximum internal memory per slot: 64 GB
Supported memory clock speed (max): 7600 MHz
ECC сompatibility: Non-ECC
Number of memory slots: 4
Memory slots type: DIMM
Unbuffered memory: Yes
Memory channels: Dual-channel
Ethernet LAN: Yes
Wi-FI: No
Ethernet interface type: 2.5 Gigabit Ethernet
LAN controller: Realtek RTL8125
Screws included: Yes
Batteries included: Yes
Bundled software: Norton® Internet Security (OEM version)rnLAN bandwidth management software
Package width: 265 mm
Package depth: 265 mm
Package weight: 10.2 kg
Package height: 54 mm
Processor socket: Socket AM5
Supported processor sockets: Socket AM5
Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Processor manufacturer: AMD
USB 2.0 ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 0
DisplayPort version: 1.4
HDMI ports quantity: 1
HDMI version: 2.1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
VGA (D-Sub) ports quantity: 0
DisplayPorts quantity: 2
Line-in: Yes
DVI-D ports quantity: 0
PS/2 ports quantity: 1
Microphone in: Yes
Headphone outputs: 1
Ethernet LAN (RJ-45) ports: 1
Number of HDDs supported: 4
Number of storage drives supported: 6
RAID levels: 0, 1, 10
Supported storage drive interfaces: M.2, SATA III
Supported storage drive types: HDD & SSD
RAID support: Yes
Warranty period: 3 year(s)
Height: 35 mm
Width: 244 mm
Depth: 24.4 mm
Onboard-CPU: No
PCI: 0
Serial-or-Paralel: No/No
