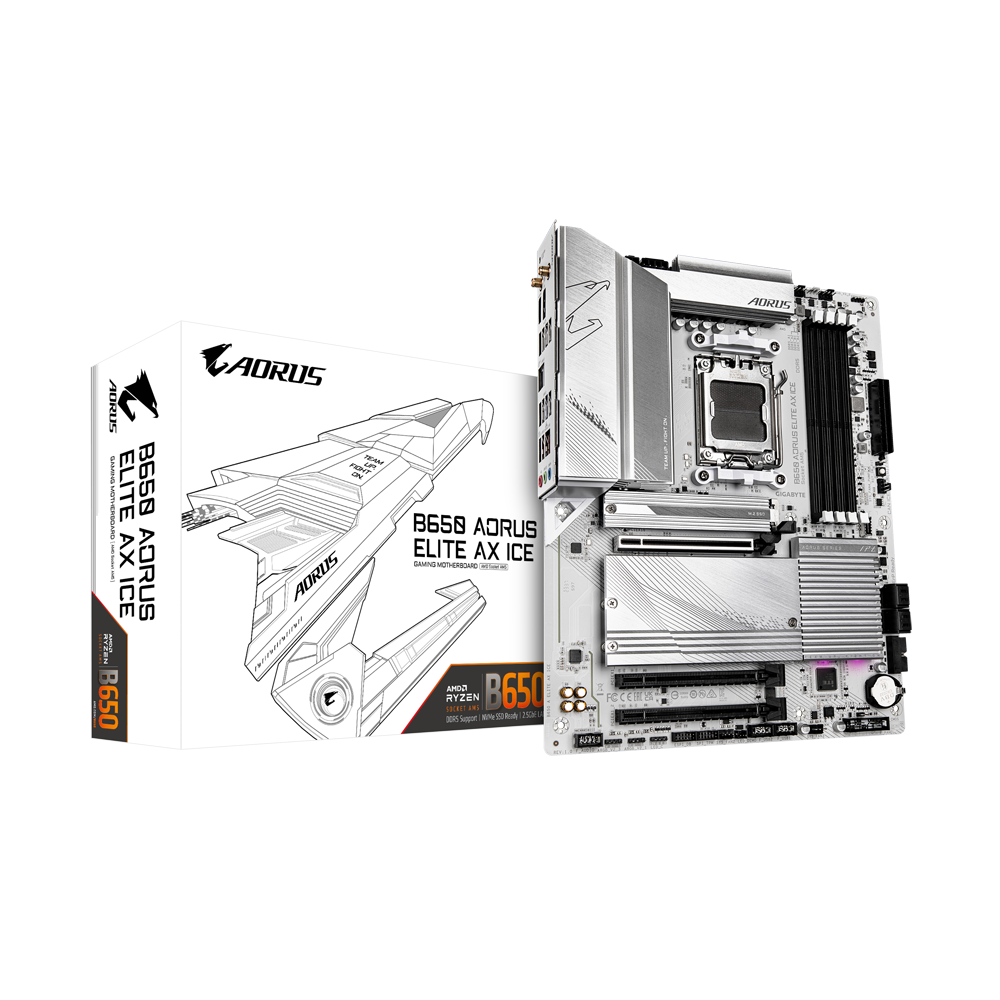

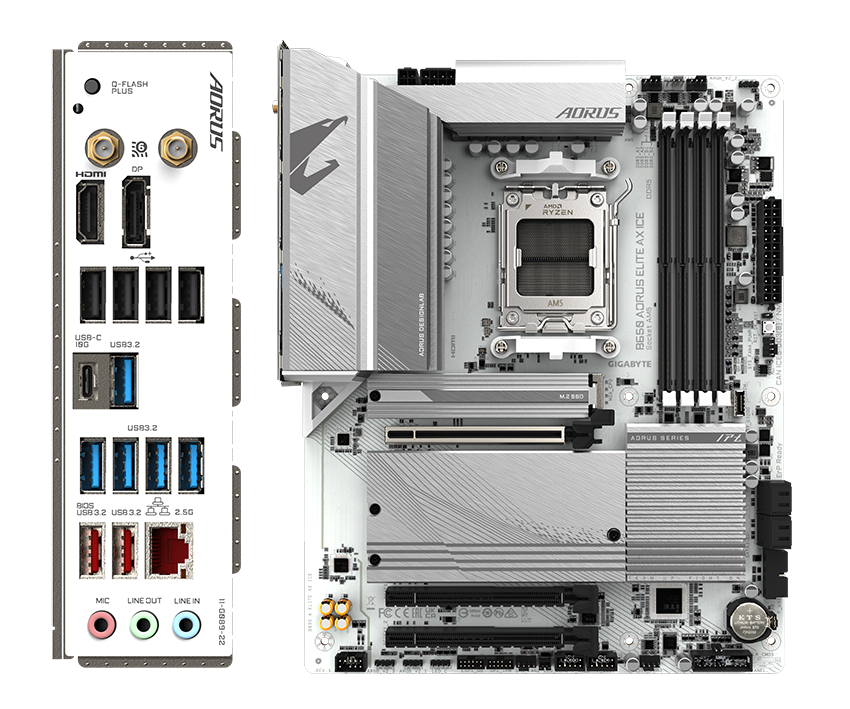

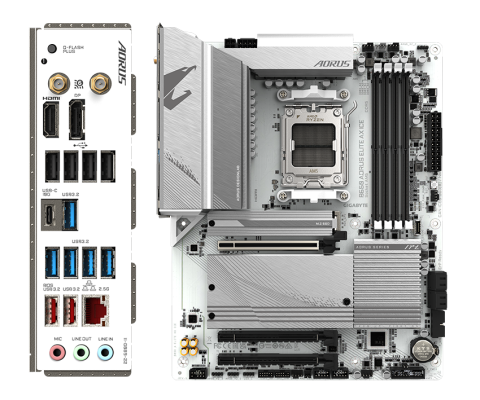

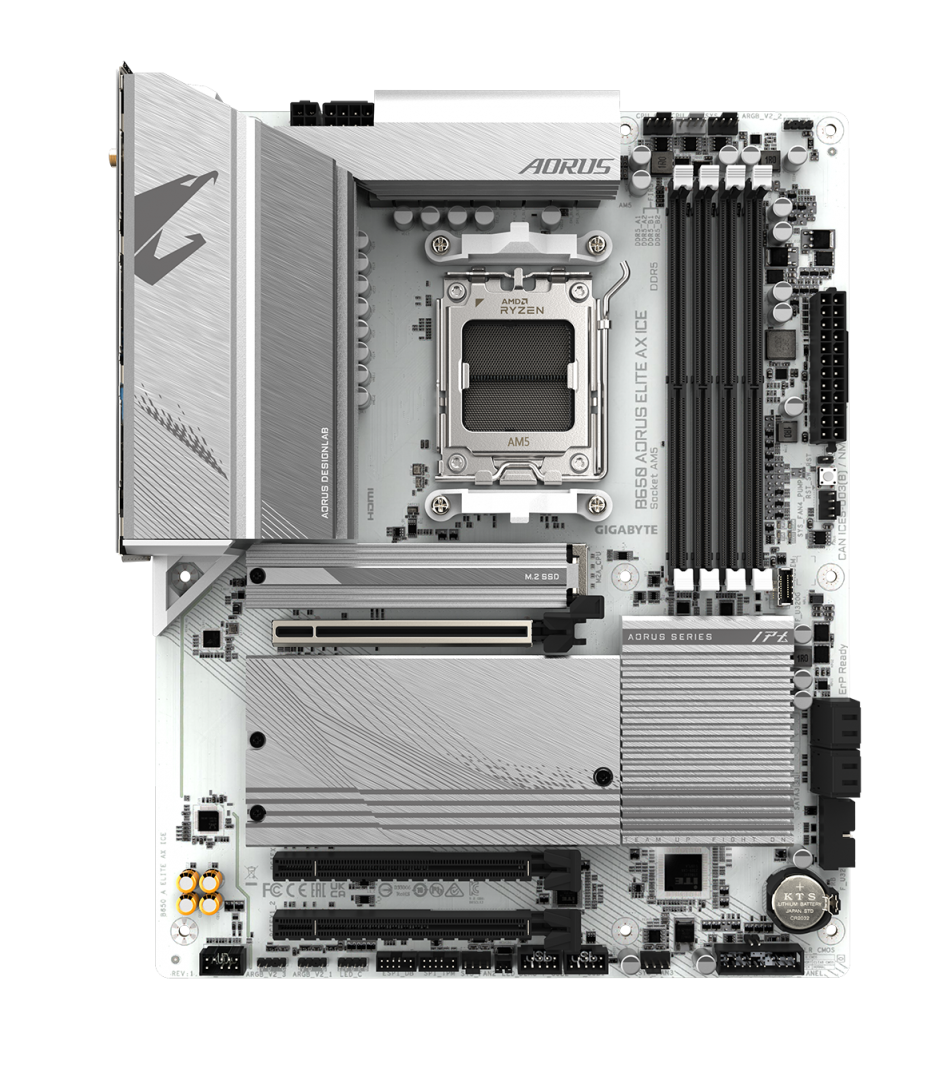

MB Gigabyte B650 AORUS ELITE AX ICE

Placa de baza Gigabyte B650 AORUS ELITE AX ICE AM5 4x DDR5, 3x PCIE x16, 3x M.2, 1x DP 1x HDMI, 4x SATA 6GB/s, ATX
Garantie: 36 luni


Specificatii tehnice

Lithium weight per battery: 0.07 g
Battery weight: 3 g
Number of battery cells: 1
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Battery type: CR2032
ACPI version: 5.0
Desktop Management Interface (DMI) version: 2.7
System Management BIOS (SMBIOS) version: 2.7
BIOS type: UEFI AMI
BIOS memory size: 256 Mbit
Clear CMOS jumper: Yes
Number of M.2 (M) slots: 3
PCI Express x16 slots: 1
Audio output channels: 7.1 channels
Windows operating systems supported: Windows 10 x64, Windows 11 x64
Component for: PC
Motherboard form factor: ATX
Motherboard chipset family: AMD
PC health monitoring: Fan, Temperature, Voltage
Motherboard chipset: AMD B650
Product colour: White
Power source type: ATX
DirectX version: 12.0
HDCP: Yes
Front panel connector: Yes
Number of chassis fan connectors: 4
RGB LED pin header: Yes
USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 0
Number of SATA III connectors: 4
Front panel audio connector: Yes
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
USB 3.2 Gen 2x2 connectors: 1
Total number of SATA connectors: 4
Thunderbolt headers: 2
12V power connector: Yes
Country of origin: China
Supported memory clock speed (max): 8000 MHz
ECC сompatibility: Non-ECC
Supported memory module capacities: 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB, 48GB
Supported memory clock speeds: 4400,4800,5200,5600,6000,6200,6600,6666,7000,7200,7600,7800,8000 MHz
Supported memory types: DDR5-SDRAM
Maximum internal memory: 192 GB
Number of memory slots: 4
Memory slots type: DIMM
Unbuffered memory: Yes
Memory channels: Dual-channel
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Ethernet LAN: Yes
Wi-FI: Yes
WLAN controller model: Realtek RTL8852CE
Ethernet interface type: 2.5 Gigabit Ethernet
Bluetooth version: 5.3
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Cables included: SATA
Drivers included: Yes
Package width: 335 mm
Package depth: 270 mm
Package height: 80 mm
Package weight: 2.33 kg
Compatible processor series: AMD Ryzen™ 7
Processor manufacturer: AMD
Maximum number of SMP processors: 1
Maximum internal memory supported by processor: 192 GB
Processor socket: Socket AM5
Supported processor sockets: Socket AM5
WiFi-AP antenna jack: 2
DisplayPort version: 1.4
USB connector type: USB Type-A, USB Type-C
USB 3.2 Gen 2x2 Type-C ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 0
USB 2.0 ports quantity: 4
HDMI ports quantity: 1
HDMI version: 2.1
DisplayPorts quantity: 1
VGA (D-Sub) ports quantity: 0
DVI-D ports quantity: 0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 5
Microphone in: Yes
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III
RAID support: Yes
Number of HDDs supported: 4
Number of storage drives supported: 7
RAID levels: 0, 1, 5, 10
Height: 35 mm
Width: 30.5 mm
Depth: 24.4 mm
PCI-Ex1: 0
PCI-Ex16: 3
RAM-Slots: 4
MB-Format: micro-ATX
MB-Socket: AM5
USB3: 4-8
Onboard-CPU: No
PCI: 0
Serial-or-Paralel: No/No
