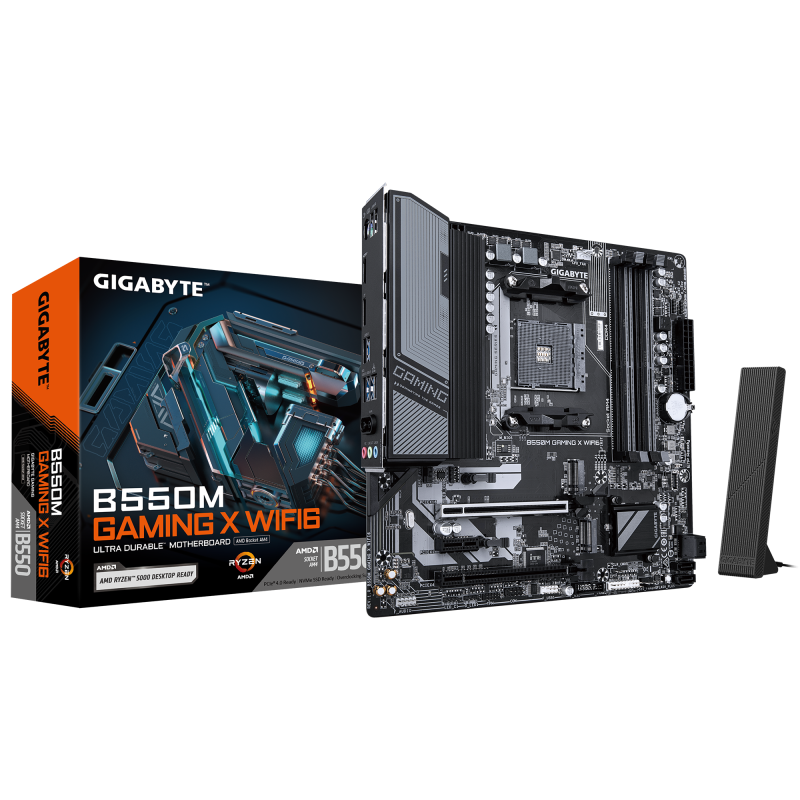

MB GIGABYTE B550M GAMING X WIFI6 AM4

Lithium weight per battery: 0.07 g

Battery weight: 3 g

Number of battery cells: 1

Battery technology: Lithium-Manganese Dioxide (LiMnO2)

Battery type: CR2032

BIOS type: UEFI AMI

Clear CMOS jumper: Yes

ACPI version: 5.0

Desktop Management Interface (DMI) version: 2.7

System Management BIOS (SMBIOS) version: 2.7

BIOS memory size: 128 Mbit

Bluetooth: Yes

Product colour: Dark brown

Cooling type: Passive

Number of M.2 (M) slots: 2

PCI Express x16 (Gen 3.x) slots: 1

PCI Express x1 (Gen 3.x) slots: 1

PCI Express x16 (Gen 4.x) slots: 1

2nd M.2 highest PCI Express generation: 3.0

1st M.2 largest key size: 2280

2nd M.2 largest key size: 2280

1st M.2 highest PCI Express generation: 4.0

PC health monitoring: Fan, Temperature, Voltage

Audio Chip: Realtek ALC1220-VB

Motherboard form factor: micro ATX

Motherboard chipset family: AMD

Power source type: ATX

Audio output channels: 7.1 channels

Component for: PC

Motherboard chipset: AMD B550

Windows operating systems supported: Windows 10 x64, Windows 11 x64

DirectX version: 12.0

Maximum resolution: 5120 x 2880 pixels

Parallel processing technology support: Not supported

HDCP: Yes

On-board graphics card: No

USB 3.2 Gen 2 (3.1 Gen 2) connectors:

Number of SATA III connectors: 4

Number of SATA II connectors:

Number of SATA connectors:

Front panel audio connector: Yes

ATX Power connector (24-pin): Yes

CPU fan connector: Yes

Number of chassis fan connectors: 2

EPS power connector (8-pin): Yes

Front panel connector: Yes

TPM connector: Yes

RGB LED pin header: Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2

Serial port headers: 1

Number of CPU fan connectors: 1

Number of EPS power connectors (8-pin): 1

USB 2.0 connectors: 1

Number of RGB LED pin headers: 5

Products per shipping (inner) case: 1 pc(s)

Supported memory clock speed (max): 3200 MHz

Supported memory clock speeds: 2133,2400,2667,2933,3200 MHz

Maximum internal memory per slot: 32 GB

ECC сompatibility: ECC & Non-ECC

Number of memory slots: 4

Memory slots type: DIMM

Unbuffered memory: Yes

Supported memory types: DDR4-SDRAM

Maximum internal memory: 128 GB

Memory channels: Dual-channel

Top Wi-Fi standard: Wi-Fi 6 (802.11ax)

Ethernet LAN: Yes

Wi-FI: Yes

Ethernet interface type: Gigabit Ethernet

LAN controller: Realtek RTL8111H

WLAN controller model: Realtek RTL8851BE

Bluetooth version: 5.3

Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)

Weight: 1.14 kg

mSATA ports quantity:

Antenna included: Yes

Bundled software: Norton® Internet Security (OEM version)nLAN bandwidth management software

Batteries included: Yes

Screws included: Yes

Package height: 68 mm

Package weight: 12.4 kg

Package width: 270 mm

Package depth: 268 mm

Warranty period: 3 year(s)

DVI-D ports quantity:

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4

DisplayPorts quantity: 1

HDMI version: 2.1

USB 2.0 ports quantity: 2

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity:

DisplayPort version: 1.4

HDMI ports quantity: 1

Processor manufacturer: AMD

Processor socket: Socket AM4

Compatible processor series: AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series

Supported processor sockets: Socket AM4

WiFi-AP antenna jack: 2

Microphone in: Yes

Headphone outputs: 1

Ethernet LAN (RJ-45) ports: 1

PS/2 ports quantity: 1

VGA (D-Sub) ports quantity: 0

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity:

Line-in: Yes

RAID support: Yes

Supported storage drive types: HDD & SSD

Number of HDDs supported: 4

RAID levels: 0, 1, 10

Number of storage drives supported: 6

Supported storage drive interfaces: M.2, PCI Express 3.0, PCI Express 4.0, SATA III

Height: 35 mm

Width: 244 mm

Depth: 24.4 mm

PCI-Ex16: 2

RAM-Slots: 4

MB-Format: micro-ATX

MB-Socket: AM4

PCI: 0

USB3: 4-8

PCI-Ex1: 1

Onboard-CPU: No

Garantia Produsului: 36 luni
