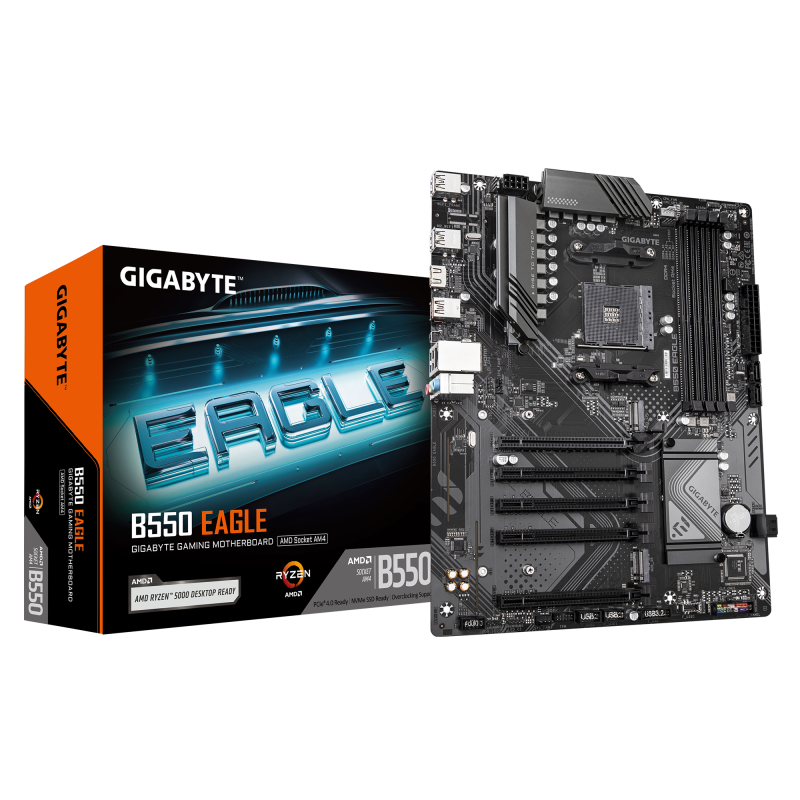

MB Gigabyte B550 EAGLE AM4

Serial-or-Paralel: No/No

Serial-or-Paralel: No/No

Lithium weight per battery: 0.07 g

Battery weight: 3 g

Number of battery cells: 1

Battery technology: Lithium-Manganese Dioxide (LiMnO2)

Battery type: CR2032

BIOS memory size: 128 Mbit

BIOS type: UEFI AMI

Clear CMOS jumper: Yes

ACPI version: 5.0

Desktop Management Interface (DMI) version: 2.7

System Management BIOS (SMBIOS) version: 2.7

Cooling type: Passive

Product colour: Dark brown

1st M.2 highest PCI Express generation: 4.0

1st M.2 largest key size: 22110

PCI Express x1 (Gen 3.x) slots: 4

2nd M.2 highest PCI Express generation: 3.0

PCI Express x16 (Gen 4.x) slots: 1

2nd M.2 largest key size: 22110

Number of M.2 (M) slots: 2

Audio Chip: Realtek ALC897

Windows operating systems supported: Windows 10 x64, Windows 11 x64

Motherboard chipset family: AMD

Motherboard form factor: ATX

PC health monitoring: Fan, Temperature, Voltage, Water cooling

Motherboard chipset: AMD B550

Audio output channels: 7.1 channels

Component for: PC

Power source type: ATX

HDCP: Yes

Maximum resolution: 4096 x 2160 pixels

Parallel processing technology support: Not supported

DirectX version: 12.0

USB 2.0 connectors: 2

USB 3.2 Gen 2 (3.1 Gen 2) connectors:

Number of SATA III connectors: 4

Front panel audio connector: Yes

ATX Power connector (24-pin): Yes

CPU fan connector: Yes

EPS power connector (8-pin): Yes

Front panel connector: Yes

Number of CPU fan connectors: 2

TPM connector: Yes

RGB LED pin header: Yes

Number of RGB LED pin headers: 5

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2

Number of chassis fan connectors: 3

Number of EPS power connectors (8-pin): 1

Number of water pump connectors: 1

Products per shipping (inner) case: 1 pc(s)

Supported memory clock speeds: 3200,2933,2667,2400,2133 MHz

Supported memory clock speed (max): 3200 MHz

Maximum internal memory per slot: 32 GB

ECC сompatibility: ECC & Non-ECC

Number of memory slots: 4

Memory slots type: DIMM

Unbuffered memory: Yes

Supported memory types: DDR4-SDRAM

Memory channels: Dual-channel

Maximum internal memory: 128 GB

Ethernet LAN: Yes

Ethernet interface type: Gigabit Ethernet

Wi-FI: No

LAN controller: Realtek RTL8111H

Weight: 1.25 kg

Bundled software: Norton® Internet Security (OEM version)nLAN bandwidth management software

Batteries included: Yes

Screws included: Yes

Package weight: 1.48 kg

Package width: 335 mm

Package depth: 270 mm

Package height: 80 mm

Warranty period: 3 year(s)

DVI-D ports quantity:

HDMI version: 2.1

USB 2.0 ports quantity: 4

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity:

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2

HDMI ports quantity: 1

Processor manufacturer: AMD

Processor socket: Socket AM4

Compatible processor series: AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series

Supported processor sockets: Socket AM4

Microphone in: Yes

Headphone outputs: 1

Line-in: Yes

VGA (D-Sub) ports quantity: 0

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1

RAID support: Yes

Supported storage drive types: HDD & SSD

Number of HDDs supported: 4

RAID levels: 0, 1, 10

Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III

Number of storage drives supported: 6

Height: 35 mm

Depth: 24.4 mm

Width: 30.5 mm

MB-Format: ATX

PCI-Ex1: 0

RAM-Slots: 4

MB-Socket: AM5

PCI-Ex16: 5

USB3: 4-8

Onboard-CPU: No

PCI: 0

Garantia Produsului: 36 luni
