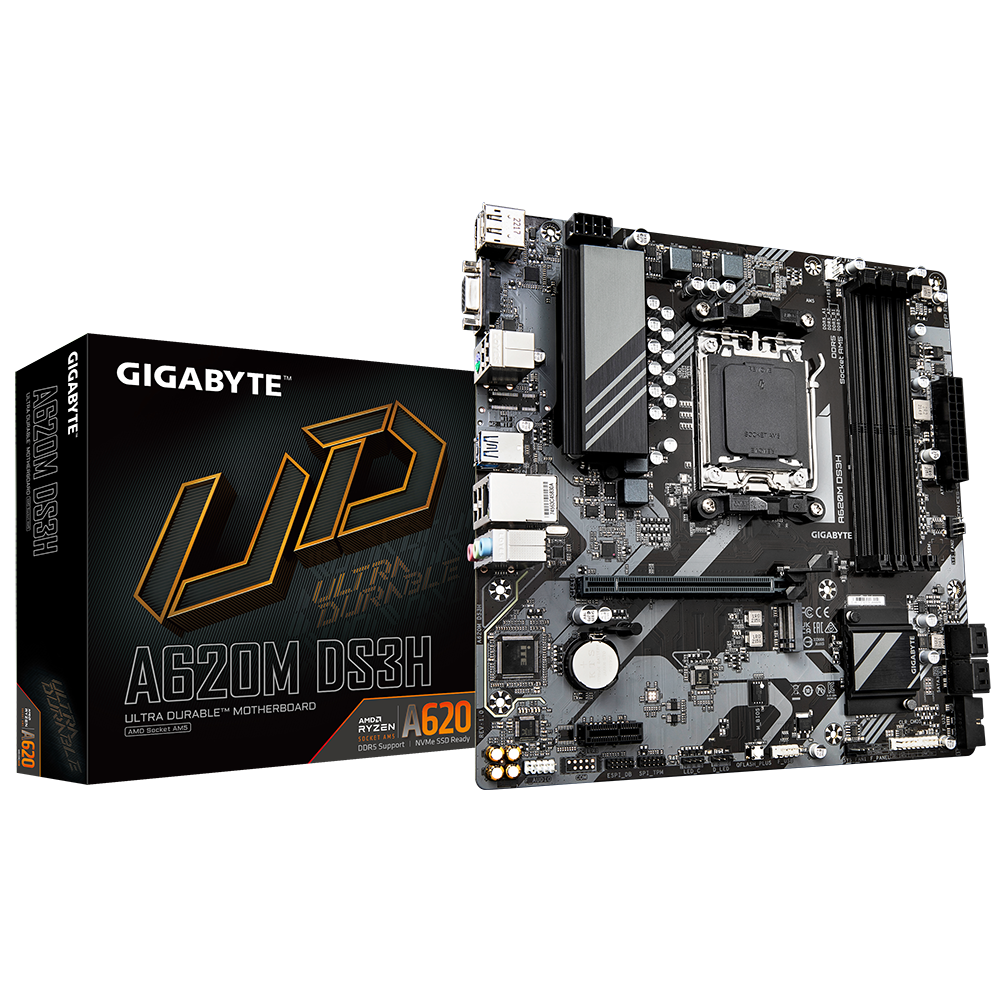

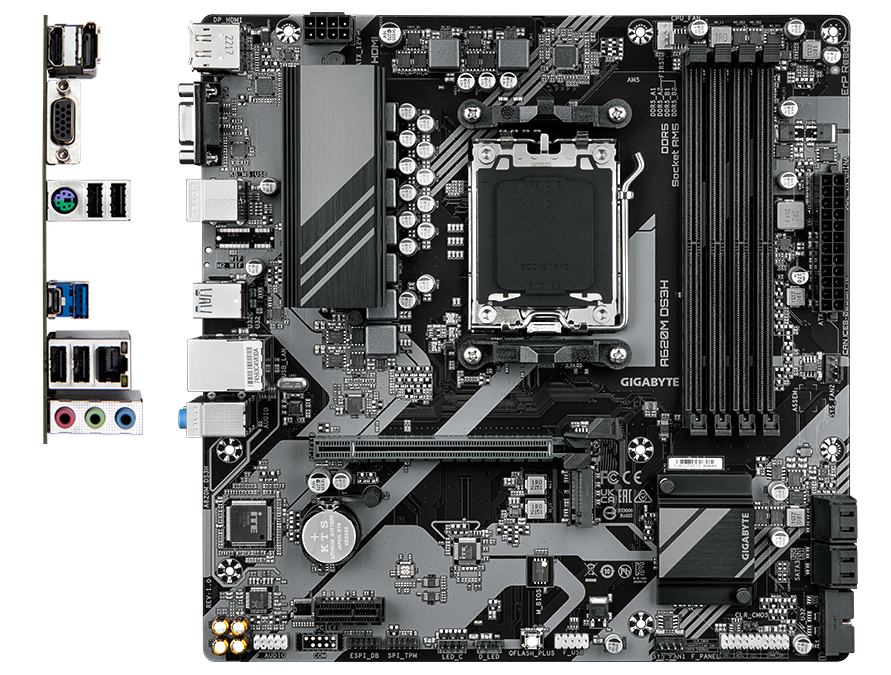

MB GIGABYTE A620M DS3H DDR5

Lithium weight per battery: 0.07 g

Battery weight: 3 g

Number of battery cells: 1

Battery technology: Lithium-Manganese Dioxide (LiMnO2)

Battery type: CR2032

ACPI version: 5.0

Desktop Management Interface (DMI) version: 2.7

System Management BIOS (SMBIOS) version: 2.7

BIOS type: UEFI AMI

BIOS memory size: 256 Mbit

Clear CMOS jumper: Yes

Product colour: Brown

PCI Express x16 slots: 1

Number of M.2 (M) slots: 1

PCI Express x1 slots: 1

Component for: PC

PC health monitoring: Fan, Temperature, Voltage, Water cooling

Windows operating systems supported: Windows 10 x64, Windows 11 x64

Motherboard form factor: micro ATX

Motherboard chipset family: AMD

Audio output channels: 7.1 channels

Motherboard chipset: AMD A620

Parallel processing technology support: Not supported

HDCP: Yes

DirectX version: 12.0

Maximum resolution: 4096 x 2160 pixels

Front panel connector: Yes

TPM connector: Yes

RGB LED pin header: Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1

USB 3.2 Gen 2 (3.1 Gen 2) connectors:

Number of SATA III connectors: 4

Front panel audio connector: Yes

ATX Power connector (24-pin): Yes

CPU fan connector: Yes

EPS power connector (8-pin): Yes

USB 2.0 connectors: 1

Total number of SATA connectors: 4

12V power connector: Yes

Country of origin: China

ECC сompatibility: Non-ECC

Supported memory clock speed (max): 7600 MHz

Supported memory module capacities: 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB, 48GB

Supported memory clock speeds: 4800,5200,5600,6000,6200,6400,6800,7000,7200,7600 MHz

Supported memory types: DDR5-SDRAM

Number of memory slots: 4

Memory slots type: DIMM

Unbuffered memory: Yes

Memory channels: Dual-channel

Maximum internal memory: 192 GB

Ethernet LAN: Yes

Ethernet interface type: Gigabit Ethernet

Wi-FI: No

Bundled software: Norton® Internet Security (OEM version)nLAN bandwidth management software

Cables included: SATA

Package height: 54 mm

Package width: 265 mm

Package depth: 265 mm

Package weight: 1.07 kg

DVI-D ports quantity:

DisplayPorts quantity: 1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1

DisplayPort version: 1.4

HDMI ports quantity: 1

USB 2.0 ports quantity: 4

HDMI version: 2.1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity:

Processor manufacturer: AMD

Processor socket: Socket AM5

Supported processor sockets: Socket AM5

Compatible processor series: AMD Ryzen 7000 Series

Maximum internal memory supported by processor: 192 GB

Microphone in: Yes

Headphone outputs: 3

PS/2 ports quantity: 1

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity:

VGA (D-Sub) ports quantity: 1

USB connector type: USB Type-A, USB Type-C

RAID support: Yes

Supported storage drive types: HDD & SSD

Supported storage drive interfaces: M.2, SATA III

RAID levels: 0, 1, 10

Number of storage drives supported: 4

Number of HDDs supported: 1

Height: 35 mm

Width: 244 mm

Depth: 24.4 mm

RAM-Slots: 4

MB-Format: micro-ATX

MB-Socket: AM5

PCI: 0

Serial-or-Paralel: No/No

USB3: 4-8

PCI-Ex1: 1

PCI-Ex16: 1

Onboard-CPU: No

Garantia Produsului: 36 luni
