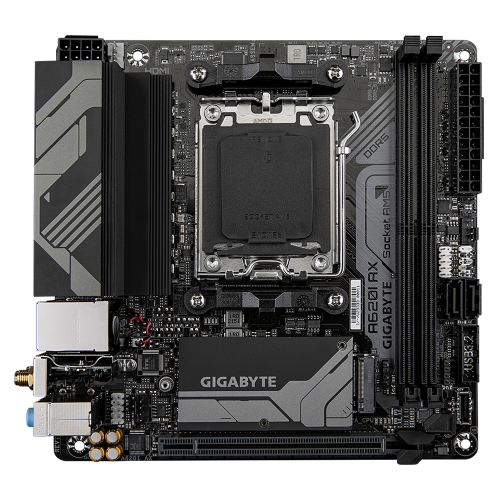

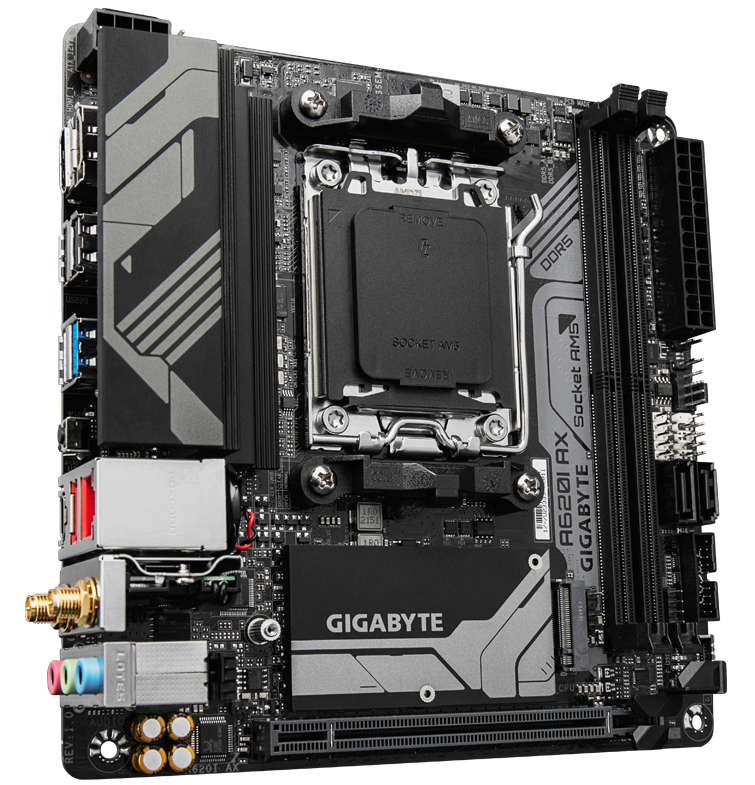

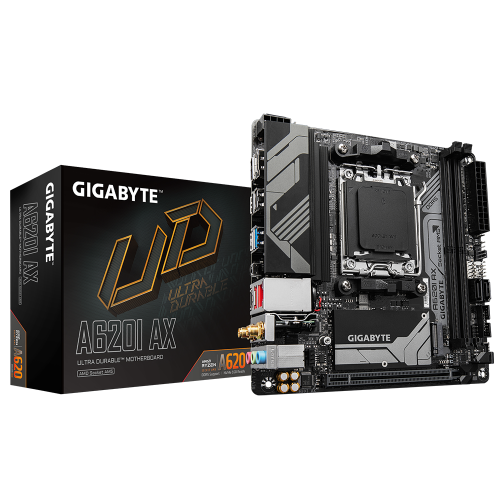

MB GIGABYTE A620I AX

Lithium weight per battery: 0.07 g

Battery weight: 3 g

Number of battery cells: 1

Battery technology: Lithium-Manganese Dioxide (LiMnO2)

Battery type: CR2032

ACPI version: 5.0

Desktop Management Interface (DMI) version: 2.7

System Management BIOS (SMBIOS) version: 2.7

BIOS type: UEFI AMI

BIOS memory size: 256 Mbit

Clear CMOS jumper: Yes

Product colour: Brown

PCI Express x16 slots: 1

Number of M.2 (M) slots: 1

Audio output channels: 7.1 channels

Component for: PC

Motherboard chipset family: AMD

Windows operating systems supported: Windows 10 x64, Windows 11 x64

Motherboard form factor: mini ITX

Motherboard chipset: AMD A620

PC health monitoring: Fan, Temperature, Voltage, Water cooling

Parallel processing technology support: Not supported

DirectX version: 12.0

Maximum resolution: 4096 x 2160 pixels

HDCP: Yes

Number of SATA III connectors: 2

Front panel connector: Yes

RGB LED pin header: Yes

12V power connector: Yes

Total number of SATA connectors: 2

USB 3.2 Gen 2 (3.1 Gen 2) connectors:

Front panel audio connector: Yes

ATX Power connector (24-pin): Yes

CPU fan connector: Yes

EPS power connector (8-pin): Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2

Chassis intrusion connector: Yes

USB 2.0 connectors: 1

Audio connector: Yes

Country of origin: China

Supported memory clock speed (max): 6400 MHz

Supported memory clock speeds: 4400,4800,5200,5600,6000,6200,6400 MHz

Memory slots type: DIMM

Unbuffered memory: Yes

ECC сompatibility: Non-ECC

Supported memory module capacities: 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB, 48GB

Supported memory types: DDR5-SDRAM

Number of memory slots: 2

Maximum internal memory: 96 GB

Memory channels: Dual-channel

Top Wi-Fi standard: Wi-Fi 6E (802.11ax)

Ethernet LAN: Yes

Wi-FI: Yes

WLAN controller model: Realtek RTL8852CE

Ethernet interface type: 2.5 Gigabit Ethernet

Bluetooth version: 5.3

Bundled software: Norton Internet Security

Cables included: SATA

Package width: 222 mm

Package height: 65 mm

Package weight: 860 g

Package depth: 180 mm

DisplayPorts quantity: 1

DVI-D ports quantity:

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity:

HDMI version: 2.1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1

USB 2.0 ports quantity: 3

HDMI ports quantity: 1

DisplayPort version: 1.4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1

Processor manufacturer: AMD

Processor socket: Socket AM5

Supported processor sockets: Socket AM5

Compatible processor series: AMD Ryzen 7000 Series

Maximum internal memory supported by processor: 96 GB

Microphone in: Yes

Headphone outputs: 3

VGA (D-Sub) ports quantity: 0

WiFi-AP antenna jack: 2

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1

USB connector type: USB Type-A, USB Type-C

RAID support: Yes

RAID levels: 0, 1

Supported storage drive types: HDD & SSD

Supported storage drive interfaces: M.2, SATA III

Number of HDDs supported: 2

Number of storage drives supported: 3

Height: 35 mm

Width: 170 mm

Depth: 170 mm

Onboard-CPU: No

PCI: 0

Garantia Produsului: 36 luni
