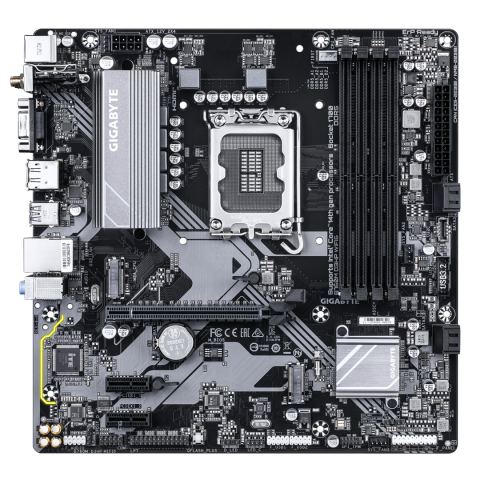

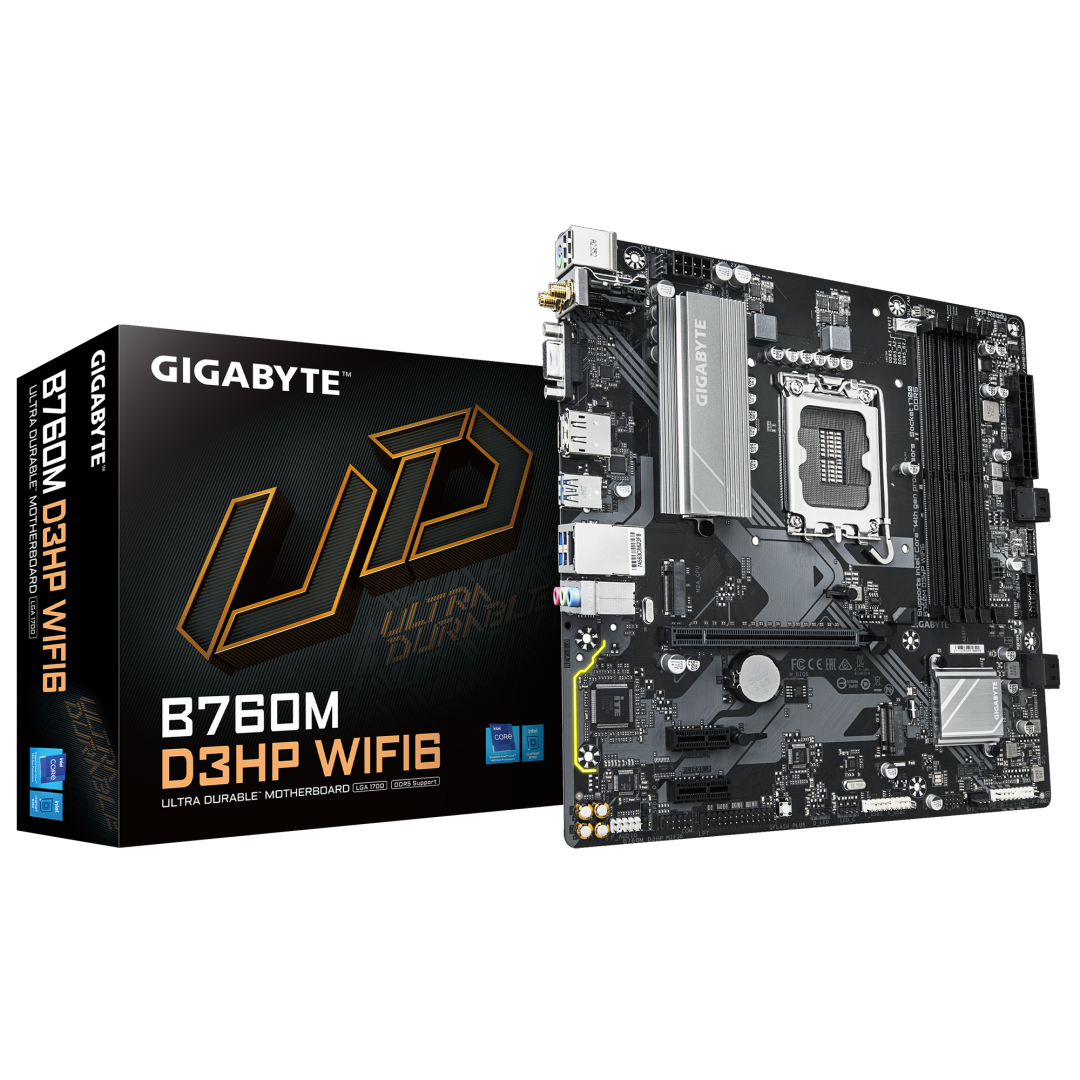

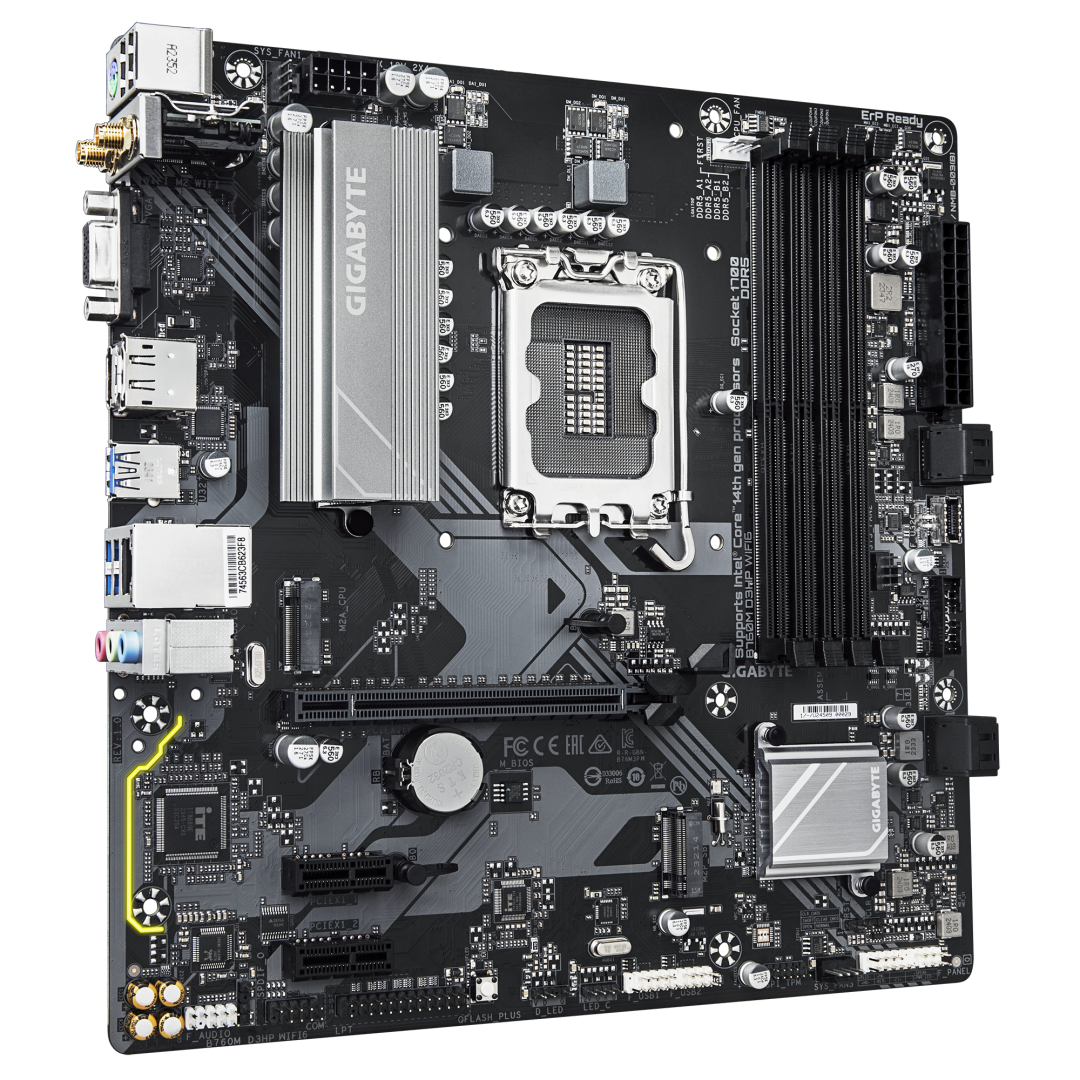

MB GB B760M D3HP WIFI6 DDR5 LGA1700

Lithium weight per battery: 0.07 g

Battery weight: 3 g

Number of battery cells: 1

Battery technology: Lithium-Manganese Dioxide (LiMnO2)

Battery type: CR2032

ACPI version: 5.0

Desktop Management Interface (DMI) version: 2.7

System Management BIOS (SMBIOS) version: 2.7

BIOS memory size: 128 Mbit

BIOS type: UEFI AMI

Clear CMOS jumper: Yes

HDMI: Da

Cooling type: Passive

Product colour: Dark brown

1st M.2 largest key size: 2280

2nd M.2 largest key size: 2280

1st M.2 highest PCI Express generation: 4.0

2nd M.2 highest PCI Express generation: 4.0

Number of M.2 (M) slots: 2

PCI Express x1 (Gen 3.x) slots: 2

PCI Express x16 (Gen 4.x) slots: 1

Audio Chip: Realtek ALC897

Audio output channels: 7.1 channels

Component for: PC

Windows operating systems supported: Windows 10 x64, Windows 11 x64

Motherboard form factor: micro ATX

Motherboard chipset family: Intel

PC health monitoring: Fan, Temperature, Voltage, Water cooling

Motherboard chipset: Intel B760 Express

Power source type: ATX

Format: Micro-ATX (mATX)

Maximum resolution: 4096 x 2304 pixels

HDCP: Yes

Parallel processing technology support: Not supported

DirectX version: 12.0

USB 2.0 connectors: 2

USB 3.2 Gen 2 (3.1 Gen 2) connectors:

Number of SATA III connectors: 4

Front panel audio connector: Yes

ATX Power connector (24-pin): Yes

CPU fan connector: Yes

EPS power connector (8-pin): Yes

12V power connector: Yes

Front panel connector: Yes

TPM connector: Yes

RGB LED pin header: Yes

Number of chassis fan connectors: 3

Parallel connector: Yes

Number of RGB LED pin headers: 2

Number of EPS power connectors (8-pin): 1

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2

Serial port headers: 1

S/PDIF out connector: Yes

Number of CPU fan connectors: 1

Products per shipping (inner) case: 1 pc(s)

Memorie maxima: 2 TB

Tip Memorie: DDR5

Maximum internal memory per slot: 48 GB

Supported memory clock speed (max): 5600 MHz

Supported memory clock speeds: 4400,4800,5200,5600 MHz

Number of memory slots: 4

Memory slots type: DIMM

Unbuffered memory: Yes

Supported memory types: DDR5-SDRAM

ECC сompatibility: ECC & Non-ECC

Maximum internal memory: 192 GB

Memory channels: Dual-channel

Top Wi-Fi standard: Wi-Fi 6 (802.11ax)

Ethernet interface type: Gigabit Ethernet

Ethernet LAN: Yes

Wi-FI: Yes

LAN controller: Realtek RTL8111H

WLAN controller model: Realtek RTL8851BE

Wi-Fi standards: Wi-Fi 6 (802.11ax)

Bluetooth version: 5.3

Weight: 1.11 kg

Bundled software: Norton® Internet Security (OEM version)nLAN bandwidth management software

Batteries included: Yes

Antenna included: Yes

Screws included: Yes

Package height: 54 mm

Package weight: 1.2 kg

Package width: 265 mm

Package depth: 265 mm

Warranty period: 3 year(s)

DVI-D ports quantity:

DisplayPorts quantity: 1

DisplayPort version: 1.2

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity:

HDMI version: 2.1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3

USB 2.0 ports quantity: 2

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:

HDMI ports quantity: 1

Processor manufacturer: Intel

Processor socket: LGA 1700

Supported processor sockets: LGA 1700

WiFi-AP antenna jack: 2

Microphone in: Yes

Headphone outputs: 1

VGA (D-Sub) ports quantity: 1

PS/2 ports quantity: 1

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity:

Line-in: Yes

Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III

Number of storage drives supported: 6

Supported storage drive types: HDD & SSD

RAID support: Yes

Number of HDDs supported: 4

RAID levels: 0, 1, 5, 10

Tip slot interfata grafica: PCIe 4.0 x16

Model Chipset: B760

USB Type C: N/A

Sloturi M.2: 2

Numar sloturi memorie: 4

Soclu Procesor: Socket 1700

Canale audio: N/A

RJ-45 LAN: N/A

Chipset audio integrat: Realtek

Thunderbolt: Nu

Gaming: Nu

Height: 35 mm

Width: 244 mm

Depth: 24.4 mm

MB-Socket: 1700

RAM-Slots: 4

MB-Format: micro-ATX

PCI-Ex1: 2

Onboard-CPU: No

USB3: 4-8

PCI-Ex16: 1

PCI: 0

Garantia Produsului: 36 luni
