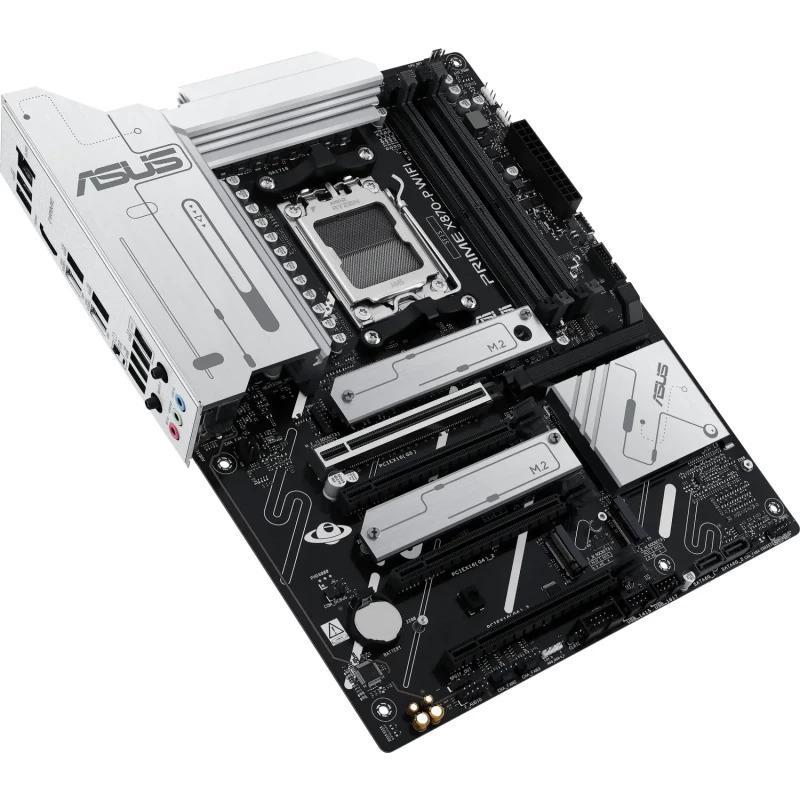

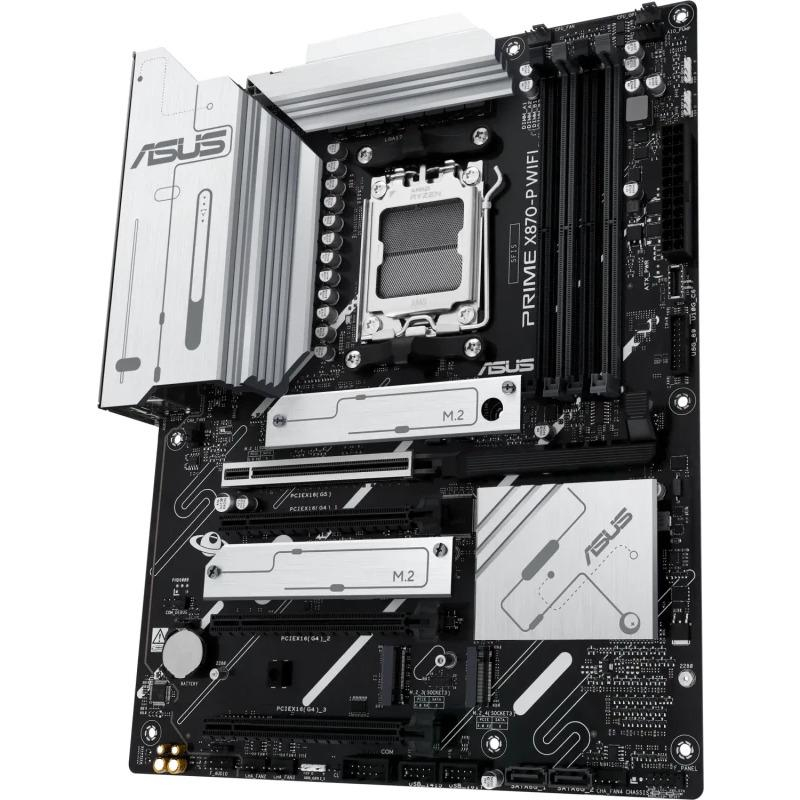

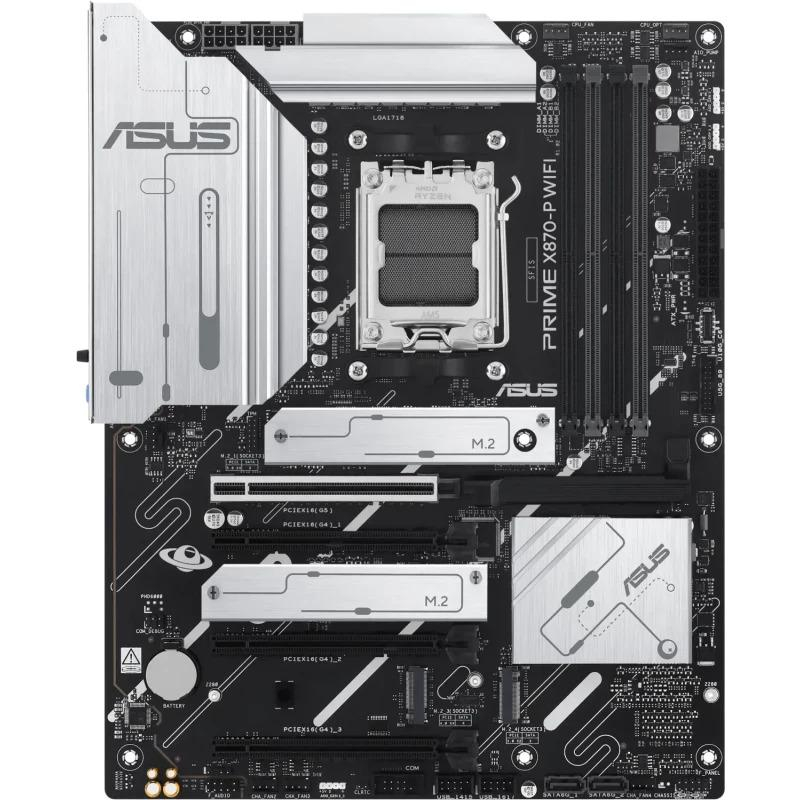

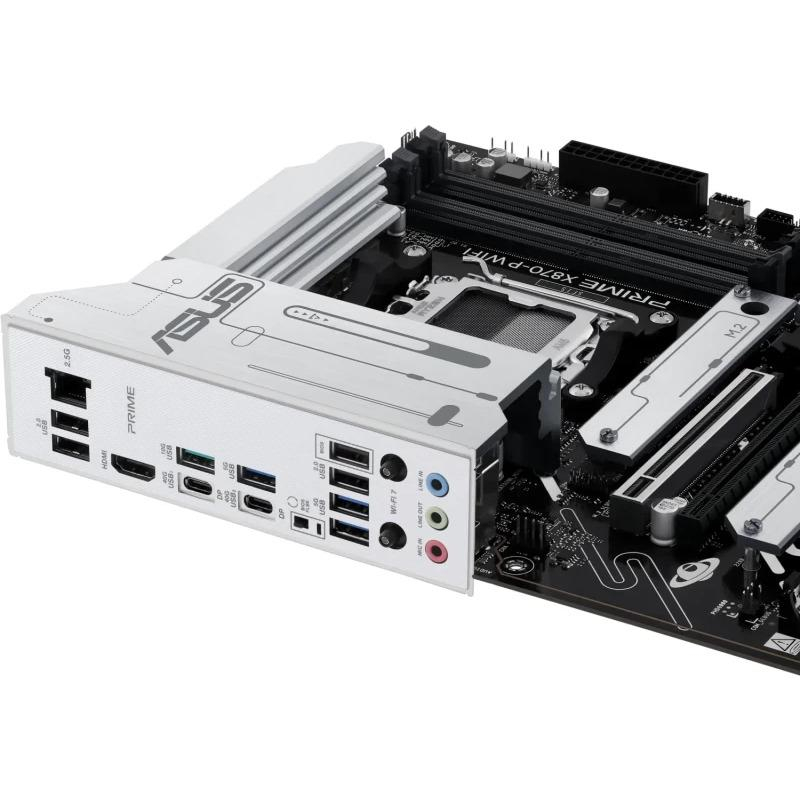

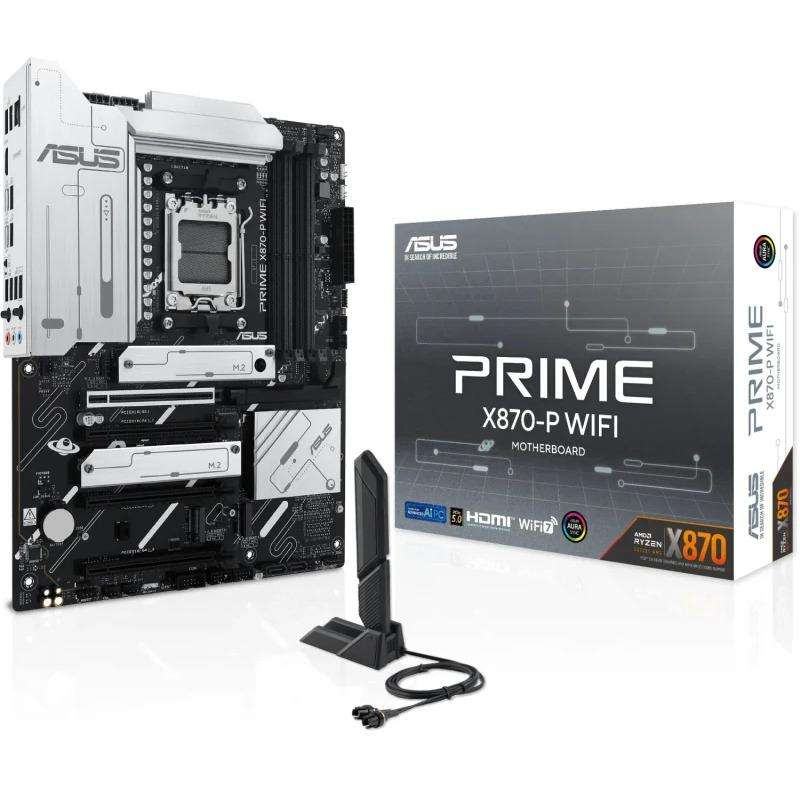

MB Asus PRIME X870-P WIFI AM5

Placa de Baza ASUS PRIME X870-P WIFI AM5, 4x DDR5, 1x HDMI 2x USB TYPE- C, 1x PCIE 5.0 x16 4x PCIE 4.0 x16, 4x M.2, 2x SATA 6GB/s, WIFI7, ATX
Garantie: 36 luni


Specificatii tehnice

BIOS type: UEFI AMI
BIOS memory size: 256 Mbit
PCI Express x16 (Gen 4.x) slots: 3
Number of M.2 (M) slots: 4
PCI Express x16 (Gen 5.x) slots: 1
Audio output channels: 7.1 channels
Cooling type: Passive
Component for: PC
Windows operating systems supported: Windows 10, Windows 11
Motherboard chipset: AMD X870
Motherboard chipset family: AMD
Motherboard form factor: ATX
Power source type: ATX
Parallel processing technology support: Not supported
On-board graphics card: No
Number of SATA III connectors: 2
USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Number of SATA II connectors: 0
Number of SATA connectors: 0
Front panel audio connector: Yes
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
EPS power connector (8-pin): Yes
12V power connector: Yes
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
Number of chassis fan connectors: 4
TPM connector: Yes
RGB LED pin header: Yes
Number of COM connectors: 1
Supported memory clock speed (max): 8000 MHz
Supported memory types: DDR5-SDRAM
ECC сompatibility: ECC & Non-ECC
Number of memory slots: 4
Memory slots type: DIMM
Unbuffered memory: Yes
Maximum internal memory: 192 GB
Memory channels: Dual-channel
Ethernet LAN: Yes
Wi-FI: Yes
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Ethernet interface type: 2.5 Gigabit Ethernet
Bluetooth version: 5.4
Weight: 1.56 kg
Back-to-BIOS button: Yes
mSATA ports quantity: 0
Cables included: SATA
Package height: 68 mm
Package weight: 1.56 kg
Package depth: 273 mm
Package width: 353 mm
Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Processor socket: Socket AM5
Supported processor sockets: Socket AM5
Processor manufacturer: AMD

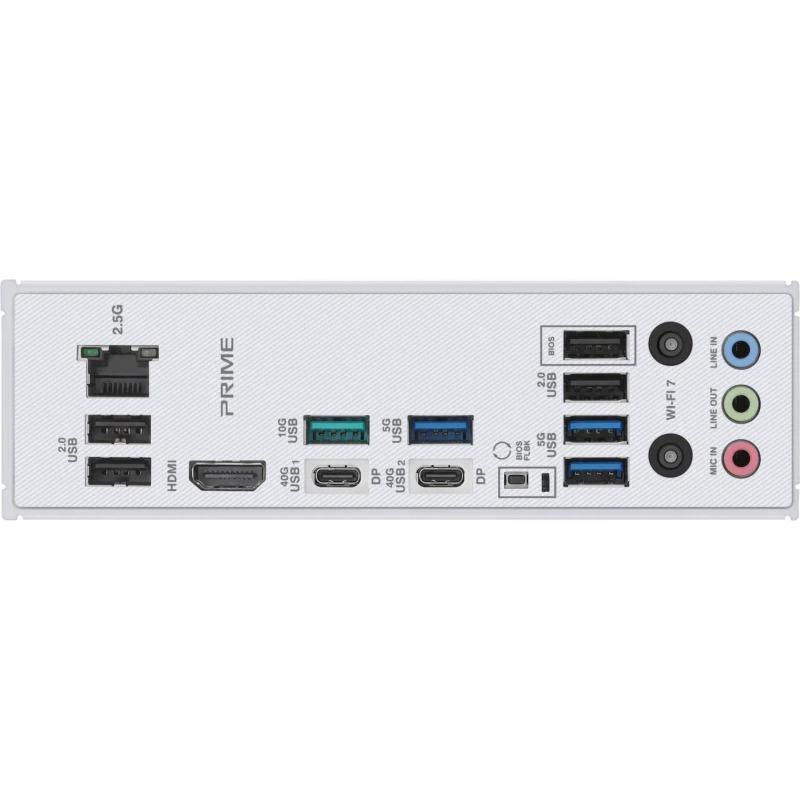

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 0
USB 2.0 ports quantity: 4
DisplayPort version: 1.4a
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
HDMI ports quantity: 1
HDMI version: 2.1
VGA (D-Sub) ports quantity: 0
DVI-D ports quantity: 0
Line-in: Yes
USB4 Gen 2x2 ports quantity: 2
Microphone in: Yes
Number of HDDs supported: 2
RAID support: Yes
Supported storage drive interfaces: M.2, SATA III
RAID levels: 0, 1, 5, 10
Number of storage drives supported: 6
Supported storage drive types: HDD & SSD
Height: 48 mm
Width: 30.5 mm
Depth: 24.4 mm
MB-Format: ATX
PCI-Ex1: 0
RAM-Slots: 4
MB-Socket: AM5
PCI-Ex16: 5
USB3: 4-8
Onboard-CPU: Yes
PCI: 0
Serial-or-Paralel: No/No
