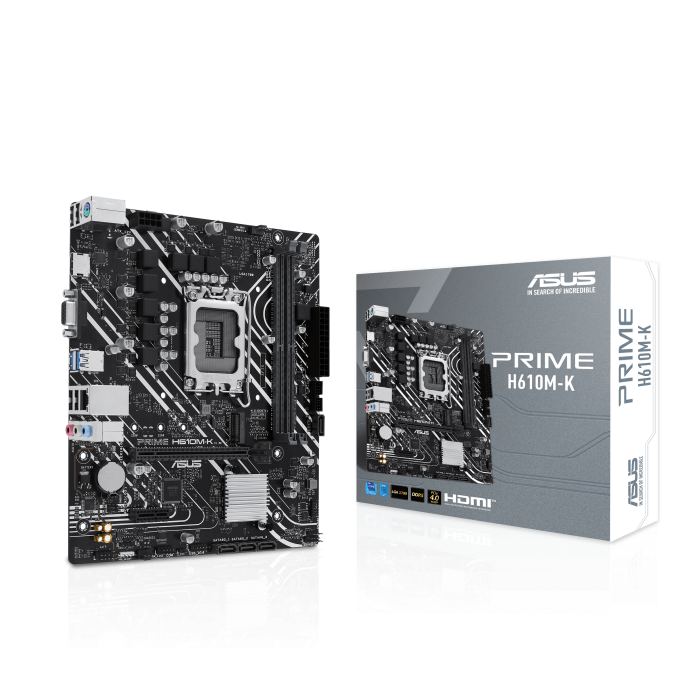

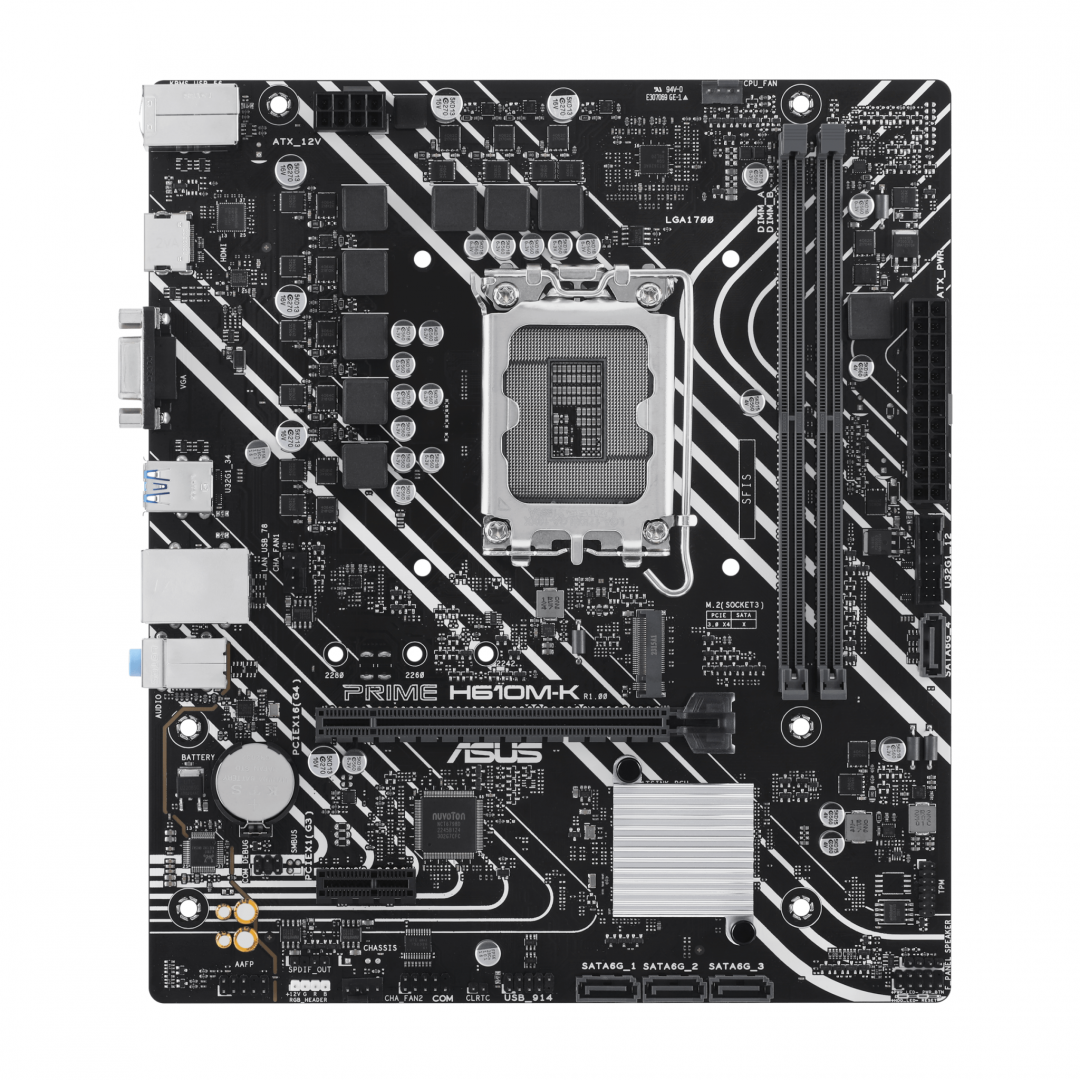

MB ASUS PRIME H610M-K D5 LGA 1700

BIOS type: UEFI AMI

Clear CMOS jumper: Yes

BIOS memory size: 128 Mbit

Product colour: Multicolour

PCI Express x1 (Gen 3.x) slots: 1

PCI Express x16 (Gen 4.x) slots: 1

Number of M.2 (M) slots: 1

Windows operating systems supported: Windows 10 x64, Windows 11

Component for: PC

Motherboard chipset: Intel H610

Motherboard chipset family: Intel

Audio output channels: 7.1 channels

Motherboard form factor: micro ATX

TPM connector: Yes

RGB LED pin header: Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1

USB 3.2 Gen 2 (3.1 Gen 2) connectors:

Number of SATA III connectors: 4

Front panel audio connector: Yes

ATX Power connector (24-pin): Yes

CPU fan connector: Yes

Number of chassis fan connectors: 2

EPS power connector (8-pin): Yes

12V power connector: Yes

USB 2.0 connectors: 1

S/PDIF out connector: Yes

Number of COM connectors: 1

ECC сompatibility: Non-ECC

Supported memory clock speeds: 4800,5000,5200,5400,5600 MHz

Supported memory types: DDR5-SDRAM

Memory channels: Dual-channel

Maximum internal memory: 96 GB

Memory slots type: DIMM

Unbuffered memory: Yes

Number of memory slots: 2

Ethernet interface type: Gigabit Ethernet

Ethernet LAN: Yes

Wi-FI: No

Weight: 470 g

Cables included: SATA

Package width: 270 mm

Package height: 51.5 mm

Package weight: 820 g

Package depth: 263 mm

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2

HDMI ports quantity: 1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:

USB 2.0 ports quantity: 4

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity:

DVI-D ports quantity:

Processor manufacturer: Intel

Processor socket: LGA 1700

Microphone in: Yes

Headphone outputs: 1

PS/2 ports quantity: 1

USB connector type: USB Type-A

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity:

VGA (D-Sub) ports quantity: 1

Line-in: Yes

Supported storage drive types: HDD & SSD

Supported storage drive interfaces: M.2, SATA III

Number of HDDs supported: 4

Number of storage drives supported: 5

Depth: 203 mm

Height: 36.5 mm

Width: 234 mm

Onboard-CPU: No

PCI: 0

Serial-or-Paralel: No/No

Garantia Produsului: 36 luni
