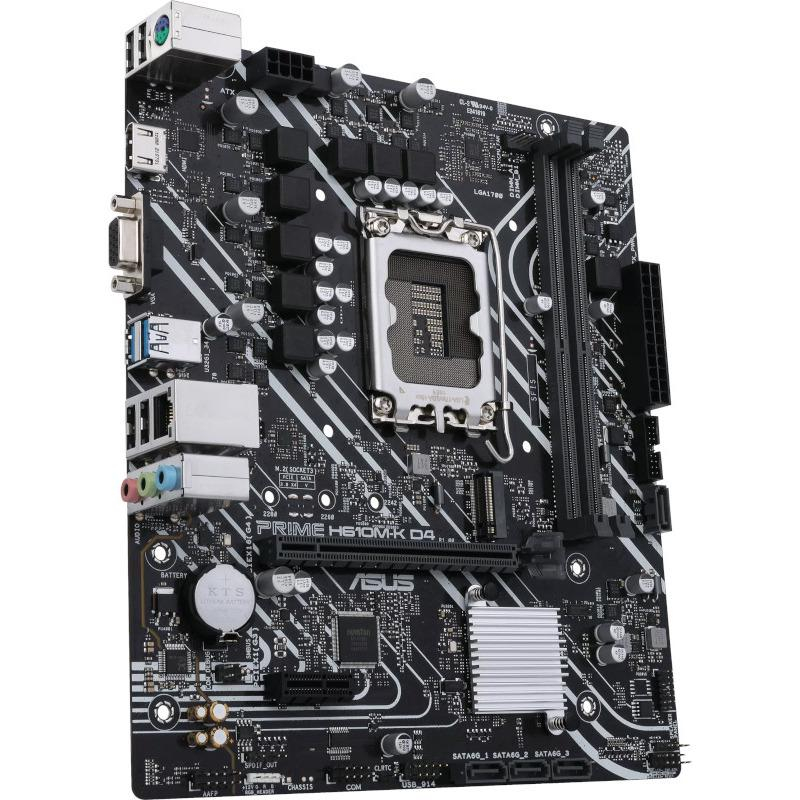

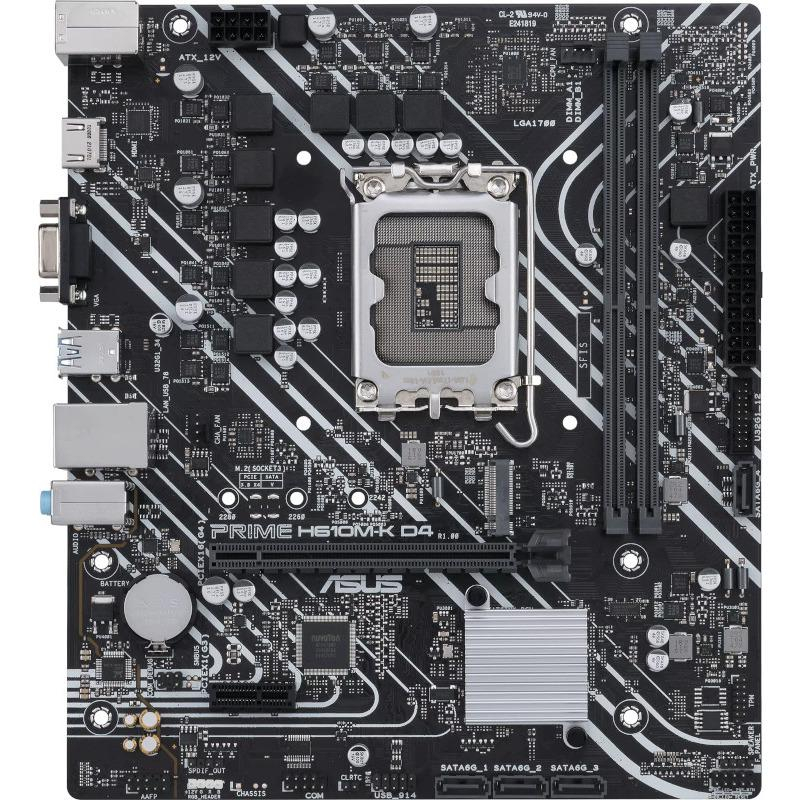

MB ASUS PRIME H610M-K D4 LGA 1700

BIOS type: UEFI AMI

BIOS memory size: 128 Mbit

PCI Express x16 (Gen 3.x) slots: 1

PCI Express x16 (Gen 4.x) slots: 1

Number of M.2 (M) slots: 1

Windows operating systems supported: Windows 10 x64, Windows 11 x64

Audio output channels: 7.1 channels

Component for: PC

Motherboard form factor: micro ATX

Motherboard chipset: Intel H610

Motherboard chipset family: Intel

Number of displays supported: 2

USB 2.0 connectors: 1

Number of chassis fan connectors: 1

12V power connector: Yes

S/PDIF out connector: Yes

Number of COM connectors: 1

TPM connector: Yes

RGB LED pin header: Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1

USB 3.2 Gen 2 (3.1 Gen 2) connectors:

Number of SATA III connectors: 4

Front panel audio connector: Yes

ATX Power connector (24-pin): Yes

CPU fan connector: Yes

EPS power connector (8-pin): Yes

Harmonized System (HS) code: 84733020

Supported memory clock speeds: 2133,2400,2666,2800,2933,3000,3200 MHz

ECC сompatibility: Non-ECC

Memory slots type: DIMM

Unbuffered memory: Yes

Memory channels: Dual-channel

Maximum internal memory: 64 GB

Number of memory slots: 2

Supported memory types: DDR4-SDRAM

Ethernet LAN: Yes

Ethernet interface type: Gigabit Ethernet

Wi-FI: No

Weight: 842 g

Drivers included: Yes

Cables included: SATA

DVI-D ports quantity:

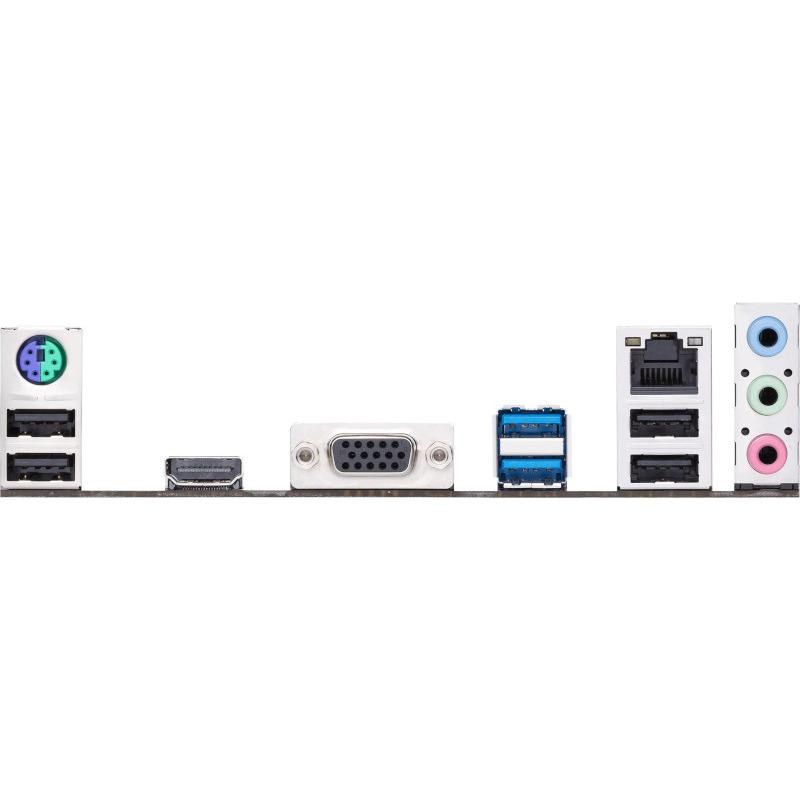

USB 2.0 ports quantity: 4

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity:

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2

HDMI ports quantity: 1

HDMI version: 2.1

Processor manufacturer: Intel

Processor socket: LGA 1700

Maximum number of SMP processors: 1

PS/2 ports quantity: 1

Microphone in: Yes

Headphone outputs: 1

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity:

VGA (D-Sub) ports quantity: 1

Supported storage drive types: HDD & SSD

Supported storage drive interfaces: M.2, SATA

RAID levels: 0, 1, 5, 10

Depth: 203 mm

Width: 234 mm

CPU încorporat: No

PCI: 0

Serial-or-Paralel: No/No

Garantia Produsului: 36 luni
