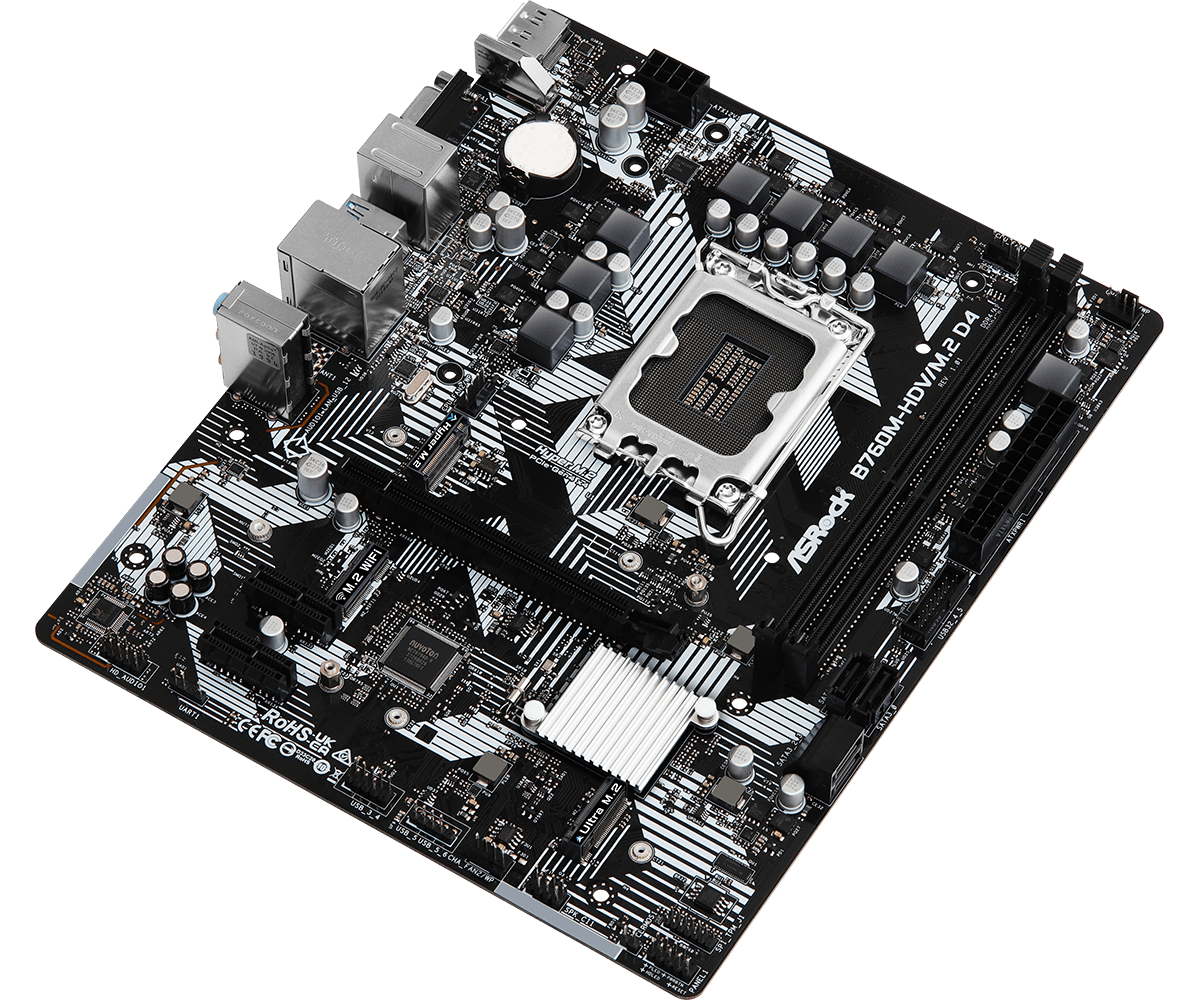

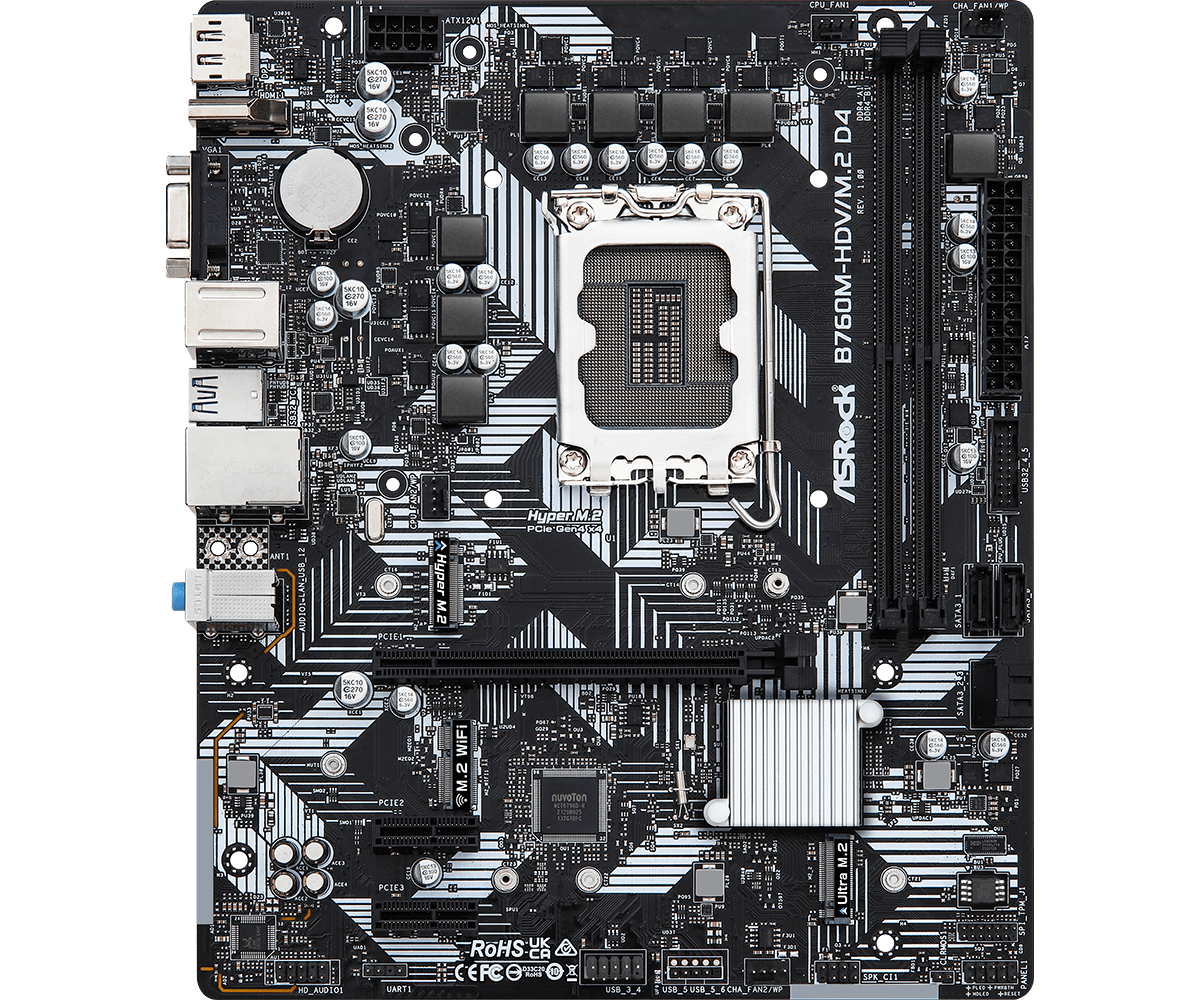

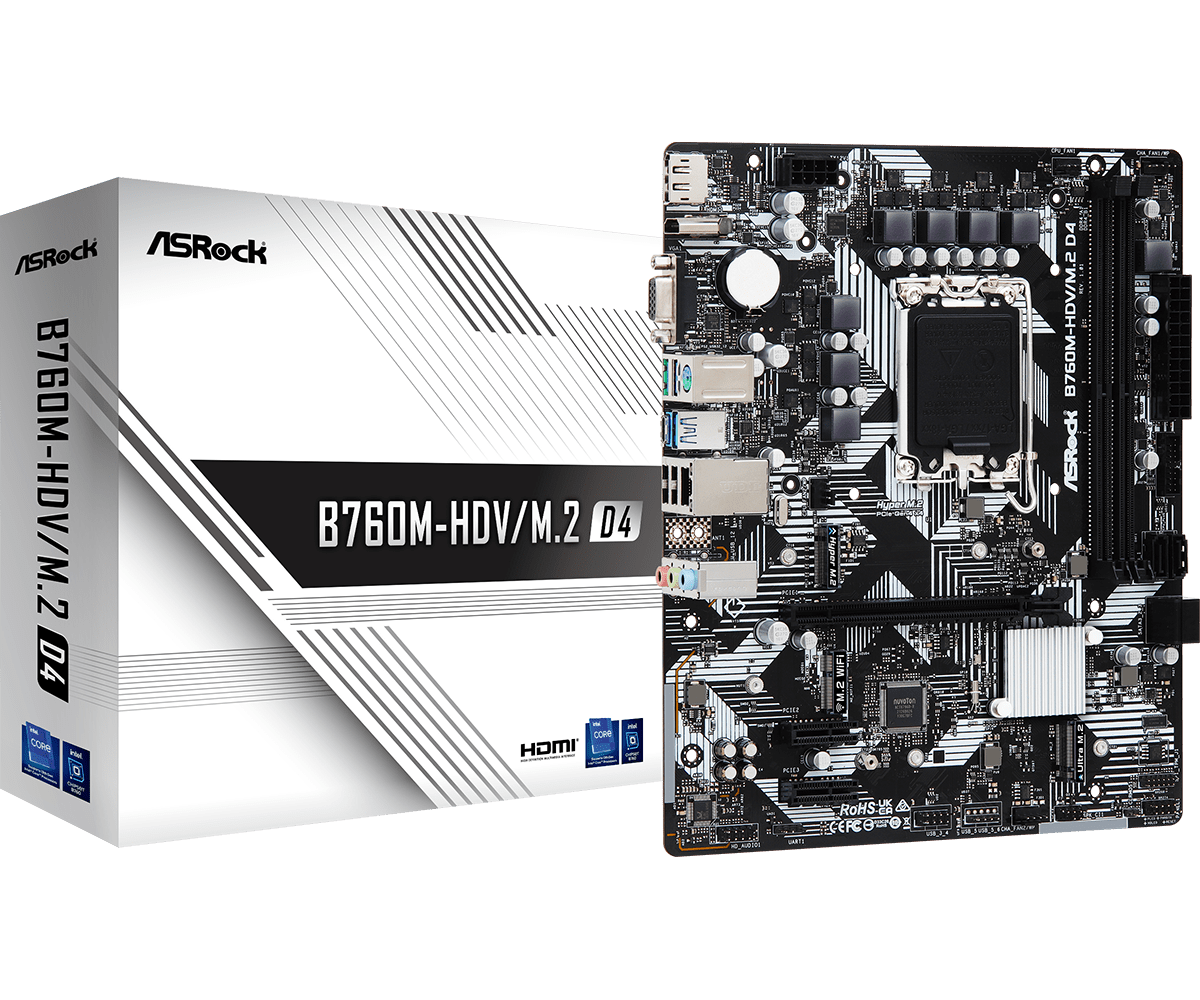

MB Asrock B760M-HDV/M.2 DDR4

Placa de baza Asrock B760M-HDV/M.2 DDR4, 2x DDR4, frecventa maxima 5333MHz, 1x DisplayPort, 1x HDMI, 1x PCIe x16, 2x PCIe x1, 2x M.2, 4x SATA3 6Gbs, LAN 1Gbps, microATX
Garantie: 36 luni


Specificatii tehnice

BIOS type: UEFI AMI
BIOS memory size: 128 Mbit
PCI Express x16 (Gen 4.x) slots: 1
PCI Express x1 (Gen 3.x) slots: 2
Number of M.2 (M) slots: 1
Audio output channels: 7.1 channels
Component for: PC
Windows operating systems supported: Windows 10 Education x64, Windows 11 x64
Motherboard chipset: Intel B760
Certification: - FCC, CEn- ErP/EuP ready (ErP/EuP ready power supply is required)
Motherboard chipset family: Intel
Audio Chip: Realtek ALC897
Motherboard form factor: micro ATX
HDCP: Yes
Parallel processing technology support: Not supported
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 0
Number of SATA III connectors: 4
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
EPS power connector (8-pin): Yes
USB 2.0 connectors: 3
Front panel connector: Yes
TPM connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
Chassis intrusion connector: Yes
Supported memory clock speeds: 3200,4400,5333 MHz
ECC сompatibility: Non-ECC
Memory slots type: DIMM
Unbuffered memory: Yes
Number of memory slots: 2
Supported memory types: DDR4-SDRAM
Memory channels: Dual-channel
Maximum internal memory: 64 GB
Ethernet LAN: Yes
Wi-FI: No
Ethernet interface type: Gigabit Ethernet
LAN controller: Realtek RTL8111H
Cables included: SATA
Compatible processor series: Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9
Processor socket: LGA 1700
Maximum number of SMP processors: 1
Processor manufacturer: Intel

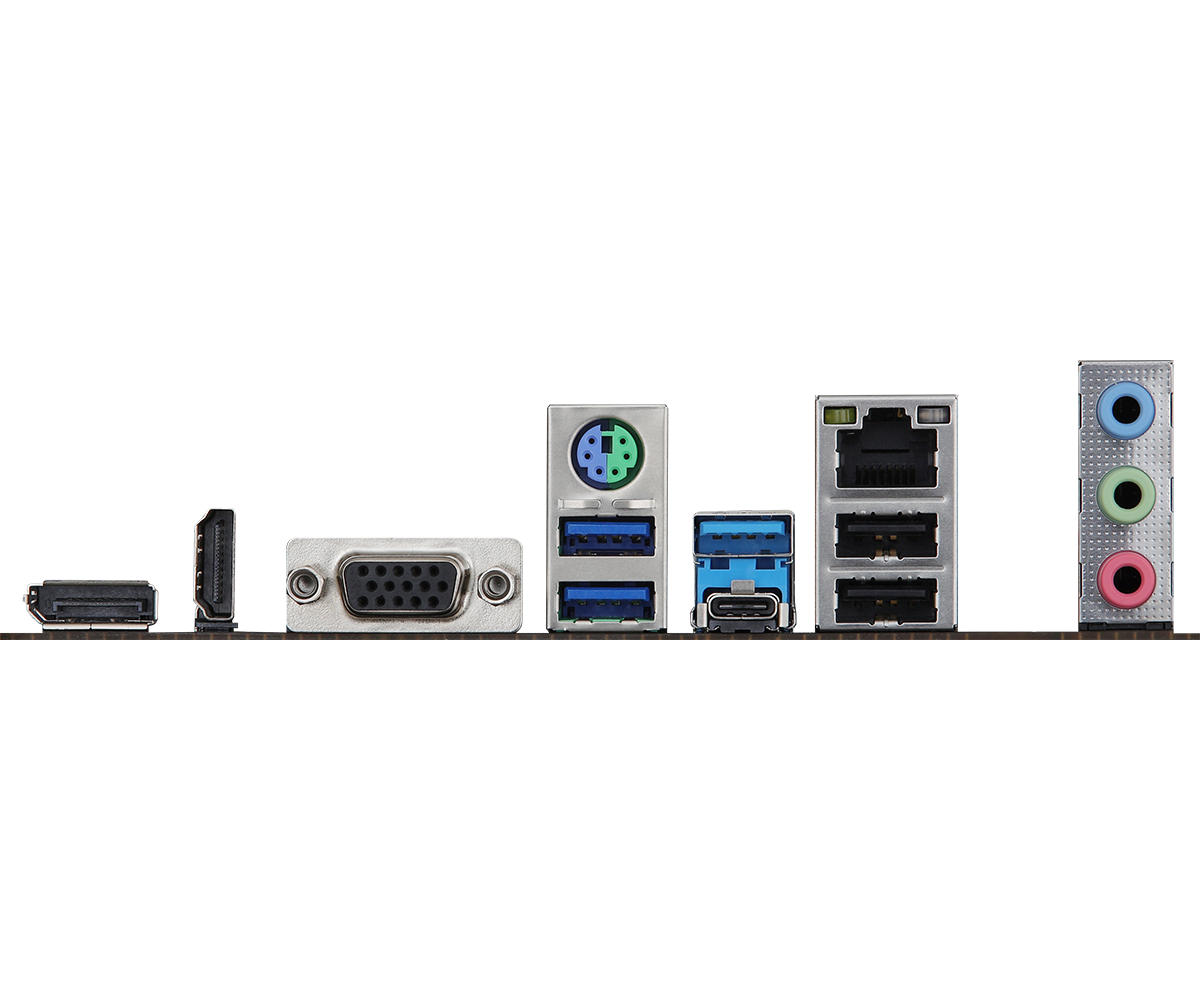

DVI-D ports quantity: 0
DisplayPorts quantity: 1
Line-in: Yes
VGA (D-Sub) ports quantity: 1
DisplayPort version: 1.4
HDMI ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
USB 2.0 ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 0
PS/2 ports quantity: 1
Microphone in: Yes
Supported storage drive interfaces: M.2, SATA III
RAID levels: 0, 1, 5, 10
RAID support: Yes
Depth: 201 mm
Width: 244 mm
MB-Socket: 1700
MB-Format: micro-ATX
RAM-Slots: 2
PCI-Ex16: 2
PCI: 0
Serial-or-Paralel: No/No
USB3: 4-8
PCI-Ex1: 1
Onboard-CPU: No
