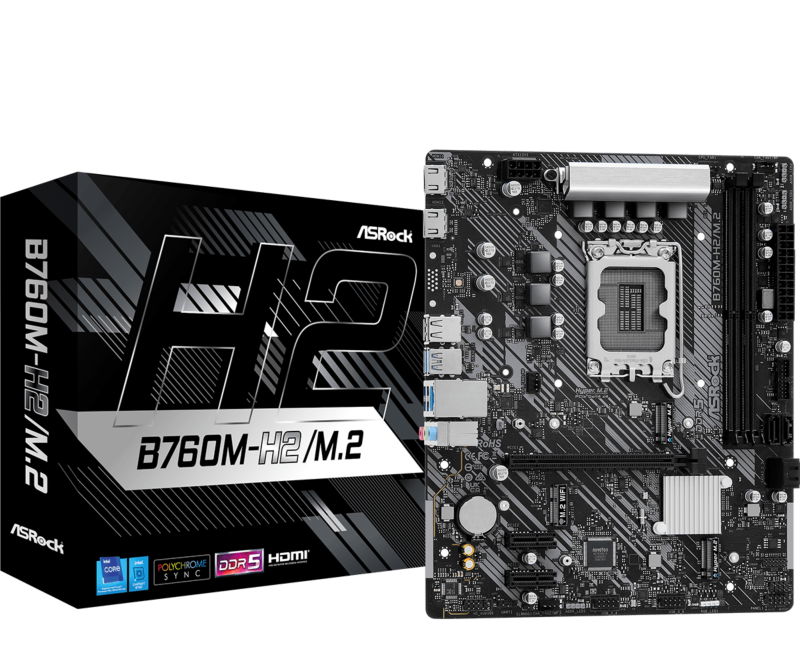

MB Asrock B760M-H2/M.2 DDR5

BIOS type: UEFI AMI

BIOS memory size: 128 Mbit

PCI Express x1 (Gen 3.x) slots: 2

PCI Express x16 (Gen 4.x) slots: 1

Number of M.2 (M) slots: 2

Audio output channels: 7.1 channels

Audio Chip: Realtek ALC897

Component for: PC

Motherboard form factor: micro ATX

Motherboard chipset: Intel B760

Motherboard chipset family: Intel

Windows operating systems supported: Windows 10 x64, Windows 11 x64

Certification: - FCC, CEn- ErP/EuP ready (ErP/EuP ready power supply is required)

HDCP: Yes

Parallel processing technology support: Not supported

USB 3.2 Gen 2 (3.1 Gen 2) connectors:

Number of SATA III connectors: 4

ATX Power connector (24-pin): Yes

CPU fan connector: Yes

EPS power connector (8-pin): Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2

Chassis intrusion connector: Yes

USB 2.0 connectors: 4

Front panel connector: Yes

TPM connector: Yes

Total number of SATA connectors: 4

ECC сompatibility: Non-ECC

Supported memory clock speed (max): 7200 MHz

Memory slots type: DIMM

Unbuffered memory: Yes

Supported memory types: DDR5-SDRAM

Number of memory slots: 2

Memory channels: Dual-channel

Maximum internal memory: 128 GB

Supported memory clock speeds: 5600,6800,7200 MHz

Ethernet LAN: Yes

Wi-FI: No

Ethernet interface type: 2.5 Gigabit Ethernet

Cables included: SATA

DVI-D ports quantity:

HDMI version: 2.1

USB 2.0 ports quantity: 2

HDMI ports quantity: 2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity:

Processor manufacturer: Intel

Processor socket: LGA 1700

Maximum number of SMP processors: 1

Supported processor sockets: LGA 1700

Maximum internal memory supported by processor: 128 GB

Compatible processor series: Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9

PS/2 ports quantity: 1

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1

Line-in: Yes

VGA (D-Sub) ports quantity: 0

Ethernet LAN (RJ-45) ports: 1

Microphone in: Yes

RAID support: Yes

Supported storage drive interfaces: M.2, SATA III

RAID levels: 0, 1, 5, 10

Number of storage drives supported: 4

Number of HDDs supported: 6

Depth: 201 mm

Width: 244 mm

MB-Socket: 1700

MB-Format: micro-ATX

PCI-Ex1: 2

RAM-Slots: 2

PCI: 0

USB3: 4-8

PCI-Ex16: 1

Onboard-CPU: No

Garantia Produsului: 36 luni
