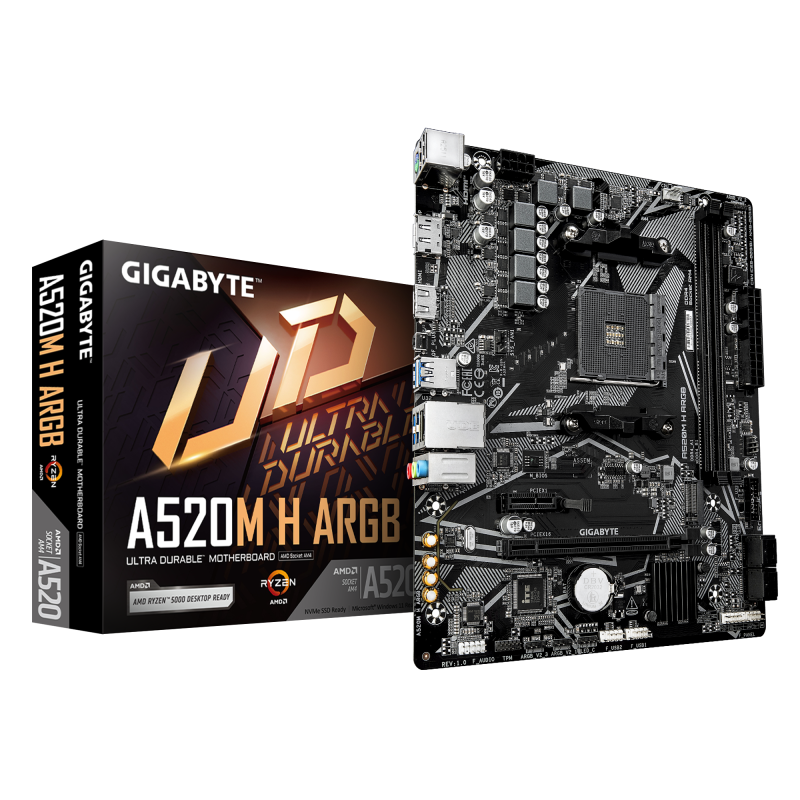

GIGABYTE A520M H ARGB motherboard

Lithium weight per battery: 0.07 g

Battery capacity: 220 mAh

Battery weight: 3 g

Number of battery cells: 1

Battery technology: Lithium-Manganese Dioxide (LiMnO2)

Battery type: CR2032

ACPI version: 5.0

Desktop Management Interface (DMI) version: 2.7

System Management BIOS (SMBIOS) version: 2.7

BIOS memory size: 128 Mbit

BIOS type: UEFI AMI

Clear CMOS jumper: Yes

Cooling type: Passive

Product colour: Dark brown

1st M.2 largest key size: 2280

1st M.2 highest PCI Express generation: 3.0

Number of M.2 (M) slots: 1

PCI Express x16 (Gen 3.x) slots: 1

PCI Express x1 (Gen 3.x) slots: 1

Audio output channels: 7.1 channels

Audio Chip: Realtek ALC897

Component for: PC

Windows operating systems supported: Windows 10 x64, Windows 11 x64

Motherboard form factor: micro ATX

Motherboard chipset family: AMD

PC health monitoring: Fan, Temperature, Voltage

Motherboard chipset: AMD A520

Power source type: ATX

Parallel processing technology support: Not supported

HDCP version: 2.3

Maximum resolution: 5120 x 2880 pixels

DirectX version: 12.0

HDCP: Yes

Front panel connector: Yes

TPM connector: Yes

RGB LED pin header: Yes

Number of RGB LED pin headers: 4

USB 2.0 connectors: 2

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1

USB 3.2 Gen 2 (3.1 Gen 2) connectors:

Number of SATA III connectors: 4

Front panel audio connector: Yes

ATX Power connector (24-pin): Yes

CPU fan connector: Yes

Number of chassis fan connectors: 2

EPS power connector (8-pin): Yes

Number of CPU fan connectors: 1

Number of EPS power connectors (8-pin): 1

12V power connector: Yes

Country of origin: China

Products per shipping (inner) case: 1 pc(s)

Maximum internal memory per slot: 32 GB

Supported memory clock speeds: 2133,2400,2667,2933,3200,3400,3466,3600,3733,3866,4000,4133,4266,4400,4600,4800,5100 MHz

Supported memory clock speed (max): 5100 MHz

ECC сompatibility: ECC & Non-ECC

Memory slots type: DIMM

Unbuffered memory: Yes

Number of memory slots: 2

Supported memory types: DDR4-SDRAM

Memory channels: Dual-channel

Maximum internal memory: 64 GB

Ethernet LAN: Yes

Wi-FI: No

Ethernet interface type: Gigabit Ethernet

LAN controller: Realtek RTL8111H

Weight: 700 g

Batteries included: Yes

Bundled software: Norton® Internet Security (OEM version)

Screws included: Yes

Package width: 265 mm

Package depth: 235 mm

Package height: 52 mm

Package weight: 772 g

Warranty period: 3 year(s)

DisplayPorts quantity: 1

DVI-D ports quantity:

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity:

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4

HDMI version: 2.1

USB 2.0 ports quantity: 2

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:

DisplayPort version: 1.4

HDMI ports quantity: 1

Processor manufacturer: AMD

Processor socket: Socket AM4

Supported processor sockets: Socket AM4

Microphone in: Yes

Headphone outputs: 1

Ethernet LAN (RJ-45) ports: 1

VGA (D-Sub) ports quantity: 0

PS/2 ports quantity: 1

Line-in: Yes

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity:

RAID support: Yes

Supported storage drive types: HDD & SSD

Number of HDDs supported: 4

Supported storage drive interfaces: M.2, PCI Express 3.0, SATA III

Number of storage drives supported: 5

RAID levels: 0, 1, 10

Height: 35 mm

Width: 233 mm

Depth: 198 mm

Garantia Produsului: 24 luni
