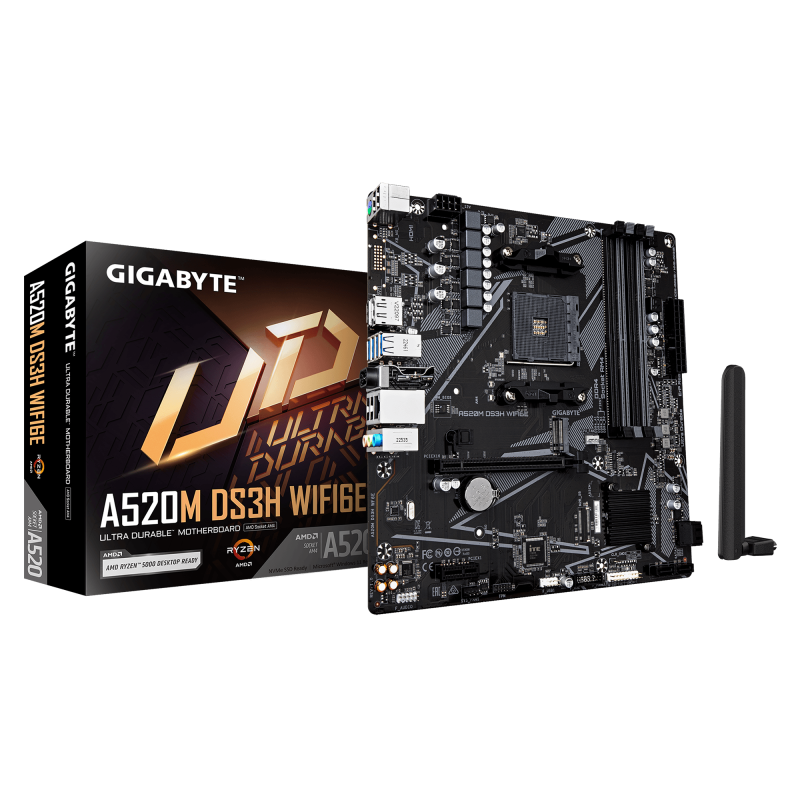

GIGABYTE A520M DS3H WIFI6E

Wireless: Yes

Lithium weight per battery: 0.07 g

Battery capacity: 220 mAh

Battery weight: 3 g

Number of battery cells: 1

Battery technology: Lithium-Manganese Dioxide (LiMnO2)

Battery type: CR2032

BIOS memory size: 128 Mbit

ACPI version: 5.0

Desktop Management Interface (DMI) version: 2.7

System Management BIOS (SMBIOS) version: 2.7

BIOS type: UEFI AMI

Clear CMOS jumper: Yes

Bluetooth: Yes

1st M.2 highest PCI Express generation: 3.0

1st M.2 largest key size: 2280

PCI Express x16 (Gen 3.x) slots: 1

PCI Express x1 (Gen 3.x) slots: 1

Number of M.2 (M) slots: 1

Audio Chip: Realtek ALC897

Cooling type: Passive

Audio output channels: 7.1 channels

Component for: PC

Motherboard chipset: AMD A520

Windows operating systems supported: Windows 10 x64, Windows 11 x64

Motherboard form factor: micro ATX

Motherboard chipset family: AMD

Power source type: ATX

Product colour: Dark brown

PC health monitoring: Temperature, Voltage, Fan

DirectX version: 12.0

Parallel processing technology support: Not supported

Maximum resolution: 5120 x 2880 pixels

HDCP: Yes

HDCP version: 2.3

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1

USB 3.2 Gen 2 (3.1 Gen 2) connectors:

Number of SATA III connectors: 4

Front panel audio connector: Yes

ATX Power connector (24-pin): Yes

CPU fan connector: Yes

EPS power connector (8-pin): Yes

12V power connector: Yes

USB 2.0 connectors: 1

Number of chassis fan connectors: 1

Number of EPS power connectors (8-pin): 1

Number of CPU fan connectors: 1

Front panel connector: Yes

TPM connector: Yes

Products per shipping (inner) case: 1 pc(s)

Country of origin: China

Maximum internal memory per slot: 32 GB

Supported memory clock speeds: 2133,2400,2667,2933,3200,3600,4000,4400,4733,3400,3466,3733,3866,4133,4266,4600 MHz

Supported memory clock speed (max): 4733 MHz

ECC сompatibility: ECC & Non-ECC

Supported memory types: DDR4-SDRAM

Number of memory slots: 4

Memory slots type: DIMM

Unbuffered memory: Yes

Memory channels: Dual-channel

Maximum internal memory: 128 GB

Top Wi-Fi standard: Wi-Fi 6E (802.11ax)

Ethernet LAN: Yes

Wi-FI: Yes

LAN controller: Realtek RTL8111H

WLAN controller model: MediaTek MT7902

Ethernet interface type: Gigabit Ethernet, Fast Ethernet

Bluetooth version: 5.3

Weight: 880 g

Batteries included: Yes

Bundled software: Norton® Internet Security (OEM version)

Screws included: Yes

Drivers included: Yes

Antenna included: Yes

Package height: 68 mm

Package weight: 972 g

Package width: 270 mm

Package depth: 268 mm

Compatible processor series: AMD Ryzen 3000 Series, AMD Ryzen 5000 Series, AMD Ryzen 4000 Series

Supported processor sockets: Socket AM4

Processor socket: Socket AM4

Processor manufacturer: AMD

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity:

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity:

USB 2.0 ports quantity: 4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4

Line-in: Yes

DisplayPort version: 1.4

HDMI ports quantity: 1

HDMI version: 2.1

DisplayPorts quantity: 1

VGA (D-Sub) ports quantity: 0

DVI-D ports quantity:

WiFi-AP antenna jack: 2

PS/2 ports quantity: 1

Ethernet LAN (RJ-45) ports: 1

Microphone in: Yes

Headphone outputs: 1

Number of HDDs supported: 4

RAID levels: 0, 1, 10

Number of storage drives supported: 5

Supported storage drive interfaces: M.2, SATA III

Supported storage drive types: HDD & SSD

RAID support: Yes

Warranty period: 3 year(s)

Height: 35 mm

Width: 244 mm

Depth: 244 mm

Garantia Produsului: 24 luni
