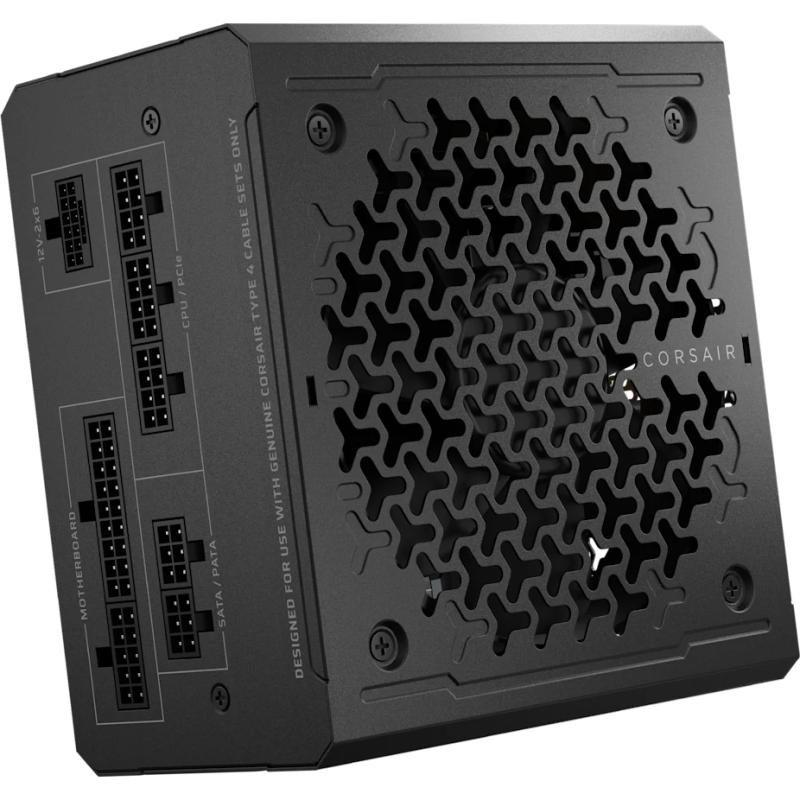

CORSAIR PSU RM850e 850W 80PLUS GOLD

Compliance certificates: CE, RoHS, UKCA

20+4 Pin ATX: 1

SATA: 6

4+4 Pin ATX/EPS: 2

6+2 PCI-E: 3

Molex: 2

Alti conectori: 1 x 16 Pin PCI-E 12VHPWR

On/off switch: Yes

Fan location: Front

Number of fans: 1 fan(s)

Fan diameter: 12 cm

PFC: Active

Recomandat Gaming: Da

Tip sursa: ATX 3.1

Putere Sursa: 850 W

Numar de ventilatoare: 1x 120 mm

Dimensiuni: 150 x 140 x 86 mm

Eficienta: 90%

Sursa Modulara: Da, Full Modulara

Certificare: 80+ Gold

Permite Asamblare: Premium, Gold

Permite Wire Management: Da

Mean time between failures (MTBF): 100000 h

Purpose: PC

Power supply unit (PSU) form factor: ATX

ATX version: 3.1

Bearing technology: Rifle

80 PLUS certification: 80 PLUS Gold

PCI Express power connectors (6+2 pin): 2

Number of PATA power connectors: 2

PCI Express power connectors (12+4 pin): 1

Motherboard power connector: 24-pin ATX

Cabling type: Fully-Modular

Number of SATA power connectors: 6

EPS power connector (4+4 pin): Yes

PCI Express connector: Yes

Max output current (+3.3V): 20 A

Combined power (+3.3V): 150 W

Combined power (+5V): 150 W

Combined power (+5Vsb): 15 W

Max output current (+12V): 62.5 A

Max output current (+5Vsb): 3 A

Total power: 850 W

Combined power (+12V): 850 W

Input current: 10 - 5 A

Max output current (+5V): 20 A

AC input voltage: 100 - 240 V

Efficiency: Not certified

AC input frequency: 47 - 63 Hz

Rail +12V: 1

+5V: 20 A

+3.3V: 20 A

+5Vsb: 3 A

+12V 1: 70.8 A

Depth: 86 mm

Height: 140 mm

Weight: 2.93 kg

Width: 150 mm

Modular: Yes

Garantia Produsului: 36 luni
