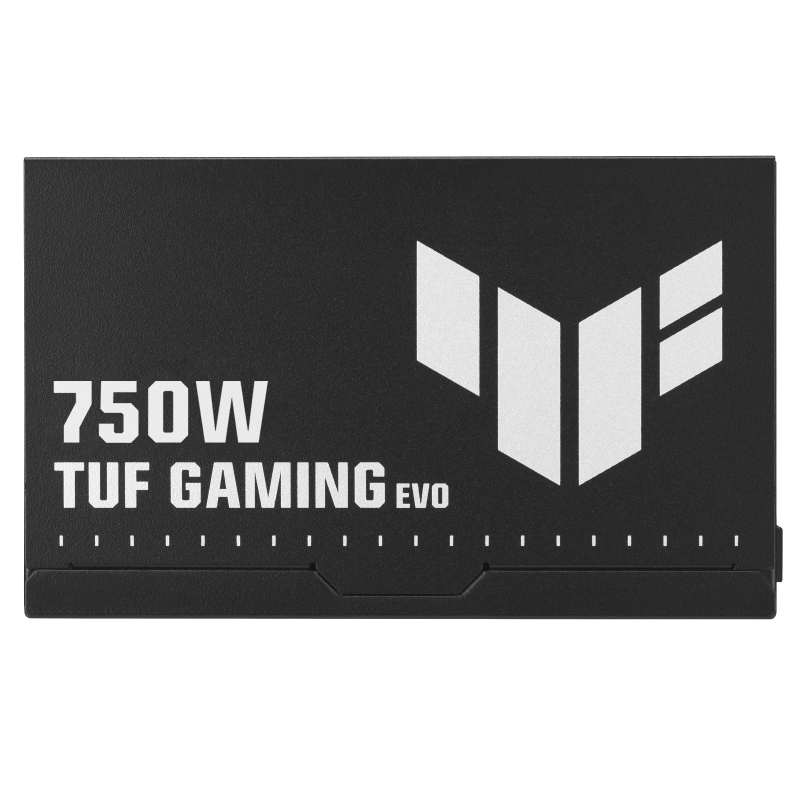

ASUS TUF-GAMING-750B-EVO power supply

Cooling type: Active

Number of fans: 1 fan(s)

Fan location: Top

Product colour: Black

On/off switch: Yes

Cables included: CPU, PCIe, Peripheral (Molex), SATA

Package type: Box

Package height: 127 mm

Package depth: 182 mm

Package width: 282 mm

Package weight: 2.11 kg

Power protection features: Overheating, Over current, Over power, Under voltage, Over voltage, Short circuit

ATX version: 3.1

Mean time between failures (MTBF): 120000 h

Bearing technology: DBB

Purpose: PC

80 PLUS certification: 80 PLUS Bronze

Power supply unit (PSU) form factor: ATX

Motherboard power connector: 20+4 pin ATX

CPU power connector (4+4 pin): Yes

Cabling type: Fully-Modular

PCI Express power connectors (6+2 pin): 3

SATA power cable length: 400,120 mm

PCI Express power cable length: 60 cm

Motherboard power cable length: 50 cm

Peripheral (Molex) power connectors (4-pin): 2

CPU power cable length: 65 cm

Number of SATA power connectors: 4

Peripheral (Molex) power cable length: 400,120 mm

AC input voltage: 100 - 240 V

Max output current (+3.3V): 12 A

Combined power (+3.3V): 80 W

Combined power (+5V): 80 W

Max output current (+5V): 12 A

Power Factor Correction (PFC) type: Active

Max output current (+5Vsb): 3 A

Total power: 750 W

Combined power (+12V): 750 W

Combined power (+5Vsb): 15 W

Max output current (+12V): 62.5 A

Combined power (-12V): 3.6 W

Max output current (-12V): 0.3 A

Height: 86 mm

Width: 140 mm

Depth: 150 mm

Weight: 1.41 kg
