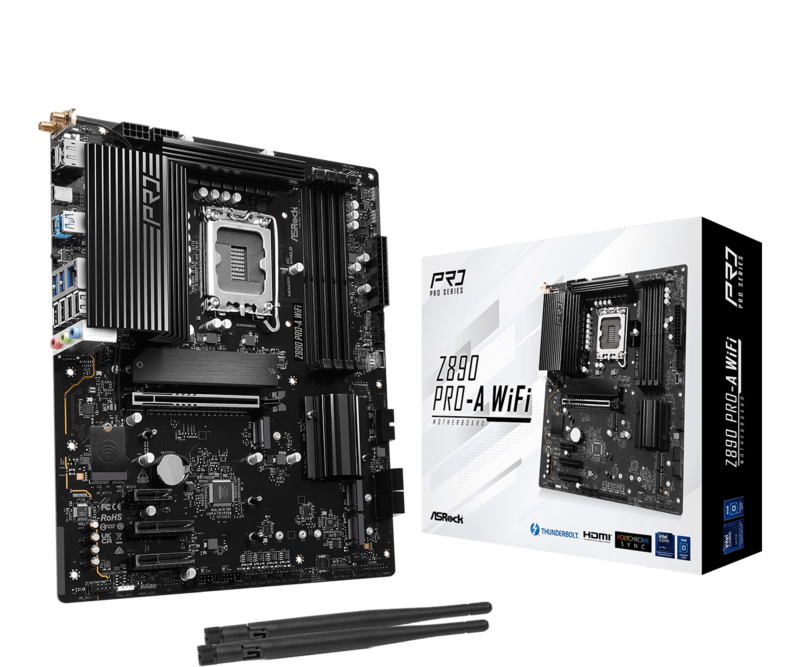

Asrock Z890 Pro-A WiFi

BIOS type: UEFI AMI

BIOS memory size: 256 Mbit

Bluetooth: Yes

PCI Express x4 (Gen 4.x) slots: 2

PCI Express x1 (Gen 4.x) slots: 1

PCI Express x16 (Gen 5.x) slots: 1

Audio Chip: Realtek ALC897

Audio output channels: 7.1 channels

Component for: PC

Motherboard form factor: ATX

Motherboard chipset family: Intel

Windows operating systems supported: Windows 11 x64

Motherboard chipset: Intel Z890

Number of chassis fan connectors: 5

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2

USB 3.2 Gen 2x2 connectors: 1

12V power connector: Yes

USB 2.0 connectors: 2

USB 3.2 Gen 2 (3.1 Gen 2) connectors:

Number of SATA III connectors: 4

Front panel audio connector: Yes

ATX Power connector (24-pin): Yes

CPU fan connector: Yes

Number of CPU fan connectors: 2

TPM connector: Yes

RGB LED pin header: Yes

Audio connector: Yes

Supported memory types: DDR5-SDRAM

Maximum internal memory: 256 GB

ECC сompatibility: Non-ECC

Supported memory clock speed (max): 9066 MHz

Memory channels: Dual-channel

Number of memory slots: 4

Memory slots type: DIMM

Unbuffered memory: Yes

Wi-FI: Yes

Top Wi-Fi standard: Wi-Fi 6E (802.11ax)

Ethernet LAN: Yes

LAN controller: Dragon RTL8125BG

Ethernet interface type: 2.5 Gigabit Ethernet

Bluetooth version: 5.3

Cables included: SATA

Screws included: Yes

DisplayPorts quantity: 1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity:

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1

USB 2.0 ports quantity: 4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2

HDMI ports quantity: 1

DisplayPort version: 1.4

DVI-D ports quantity:

Compatible processor series: Intel Core Ultra (Series 2)

Processor socket: LGA 1851 (Socket V1)

Supported processor sockets: LGA 1851

Processor manufacturer: Intel

USB 3.2 Gen 2x2 Type-C ports quantity: 1

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity:

Line-in: Yes

VGA (D-Sub) ports quantity: 0

Thunderbolt ports quantity: 1

Microphone in: Yes

Headphone outputs: 1

Ethernet LAN (RJ-45) ports: 1

Number of storage drives supported: 8

Number of HDDs supported: 4

RAID levels: 0, 1, 5, 10

Supported storage drive interfaces: M.2, SATA III

Supported storage drive types: HDD & SSD

RAID support: Yes

Compliance certificates: Federal Communications Commission (FCC), CE

Width: 305 mm

Depth: 244 mm
