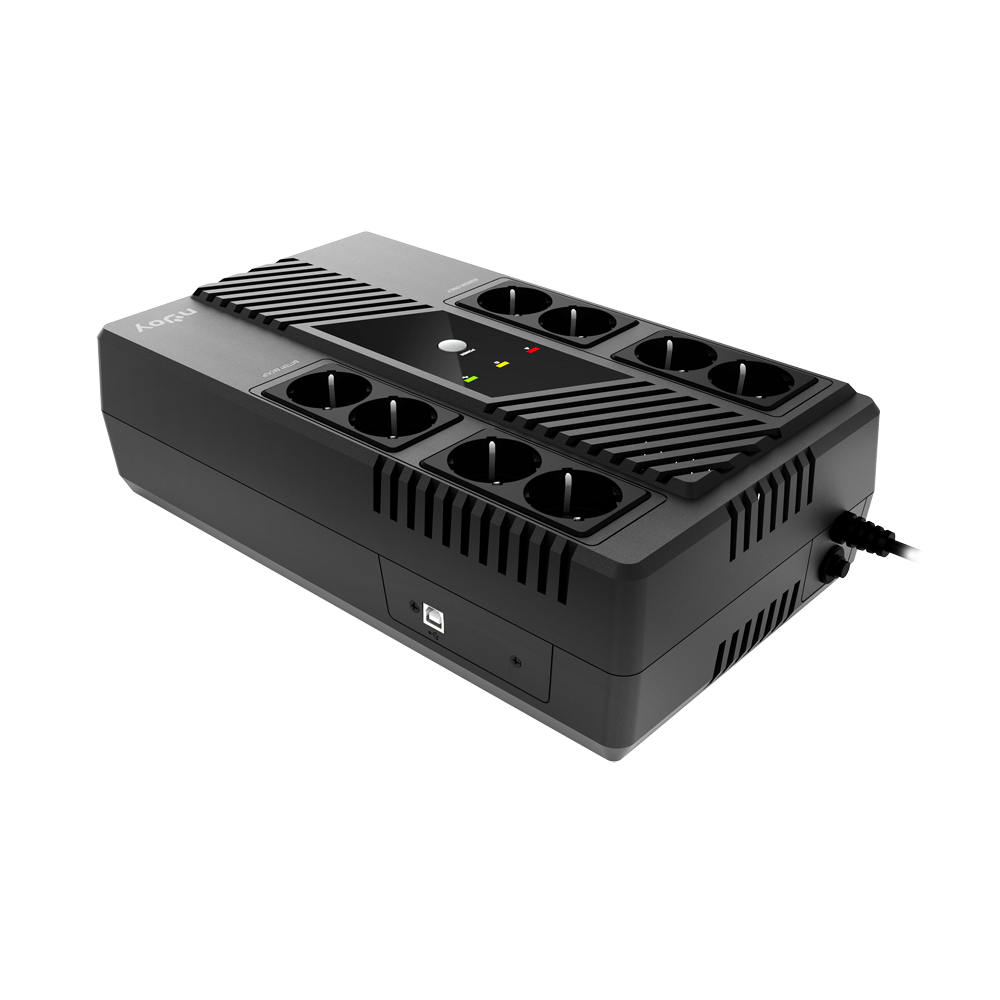

UPS NJOY Token 600 VA / 360 W

UPS nJoy Token 600 VA / 360 W Capacity 600 VA / 360 W Type Line-Interactive Input Nominal Voltage 230 VAC Accepted Voltage Range 170 – 280 VAC Frequency Range 50Hz / 60Hz (Auto Sensing) Output Nominal Voltage 230 VAC Accepted Voltage range 230 VAC, +/- 10% Frequency Range (Batt. Mode) 50 Hz / 60Hz ± 1% Power Factor 0.6 @ nominal voltage (100% load) Waveform (Batt. Mode) Simulated Sinewave Transfer Time 6ms typical Indicators type LED AC Mode:Green lighting; Battery Mode:Yellow flashing; Fault:Red lighting Alarm Battery mode, Overload mode, Low battery, Fault mode Protection Outlets type 4x Schuko Battery Backup 4x Schuko Surge Protection Full protection Overload, discharge, and overcharge protection Environement Noise level Fanless Humidity 0-90 % (non-condensing) Temperature 0-40ºC Battery Battery Type & Number 1x GP07122F (PN: BTVACGUOBTD2FCN01B) Typical Recharge Time 6~8 hours recover to 90% capacity Running time on battery (minutes) 25% Load - 15min 50% Load - 5min 30s 75% Load - 0min 40s Management Communication port HID USB Software https://www.power-softwaredownload. com/viewpower.html Physical Product dimensions 345 x 200 x 100 mm Product weight 5.05 kg Retail pack dimensions 425 x 146 x 269 mm Retail pack Weight 5.45 kg
Garantie: 36 luni


Specificatii tehnice

Typical backup time at half load: 5.5 min
Replacement battery cartridge: GP07122F
Number of batteries supported: 1
Cold start: Yes
Compliance certificates: CE, RoHS
Form factor: Compact
UPS topology: Line-Interactive
Input operation voltage (min): 170 V
Input operation voltage (max): 280 V
Number of input phases: 1
Number of output phases: 1
Output power factor: 0.6
Response time: 6 ms
Input frequency: 50 - 60 Hz
Waveform: Sine
Auto-restart: Yes
Output power capacity: 0.6 kVA
Output power: 360 W
Output operation voltage (max): 230 V
Output voltage regulation: -10 - 10%
Power protection features: Battery discharge, Overcharge, Overload
Automatic Voltage Regulation (AVR): Yes
Master (outer) case net weight: 15.2 kg
Master (outer) case width: 438 mm
Master (outer) case length: 461 mm
Master (outer) case height: 287 mm
Master (outer) case gross weight: 16.4 kg
Products per master (outer) case: 3 pc(s)
Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 0 - 90%
Package type: Box
Package width: 269 mm
Package height: 146 mm
Package weight: 5.45 kg
Package depth: 425 mm
AC outlet types: Type F
Power plug: Type F
USB port type: USB Type-B
AC outlets quantity: 8 AC outlet(s)
USB 2.0 ports quantity: 1
Width: 200 mm
Depth: 34.5 mm
Weight: 5.05 kg
Height: 100 mm
