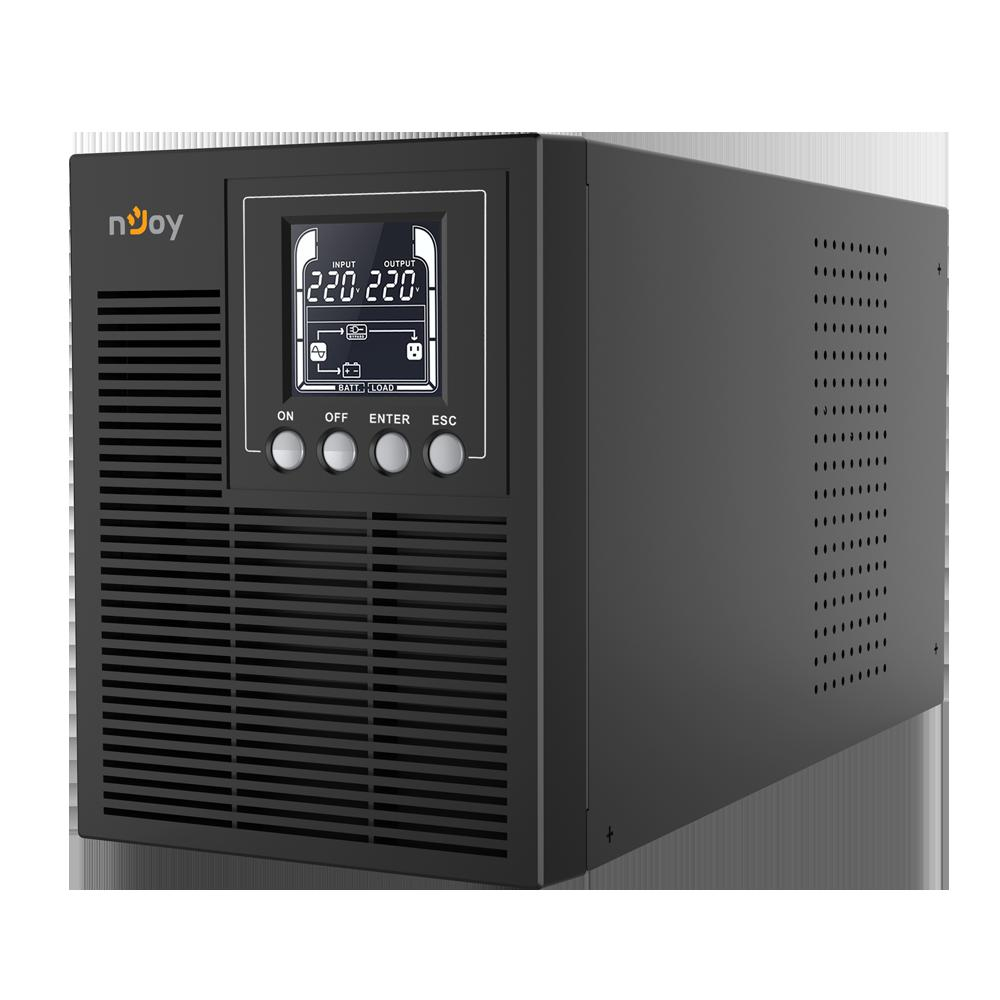

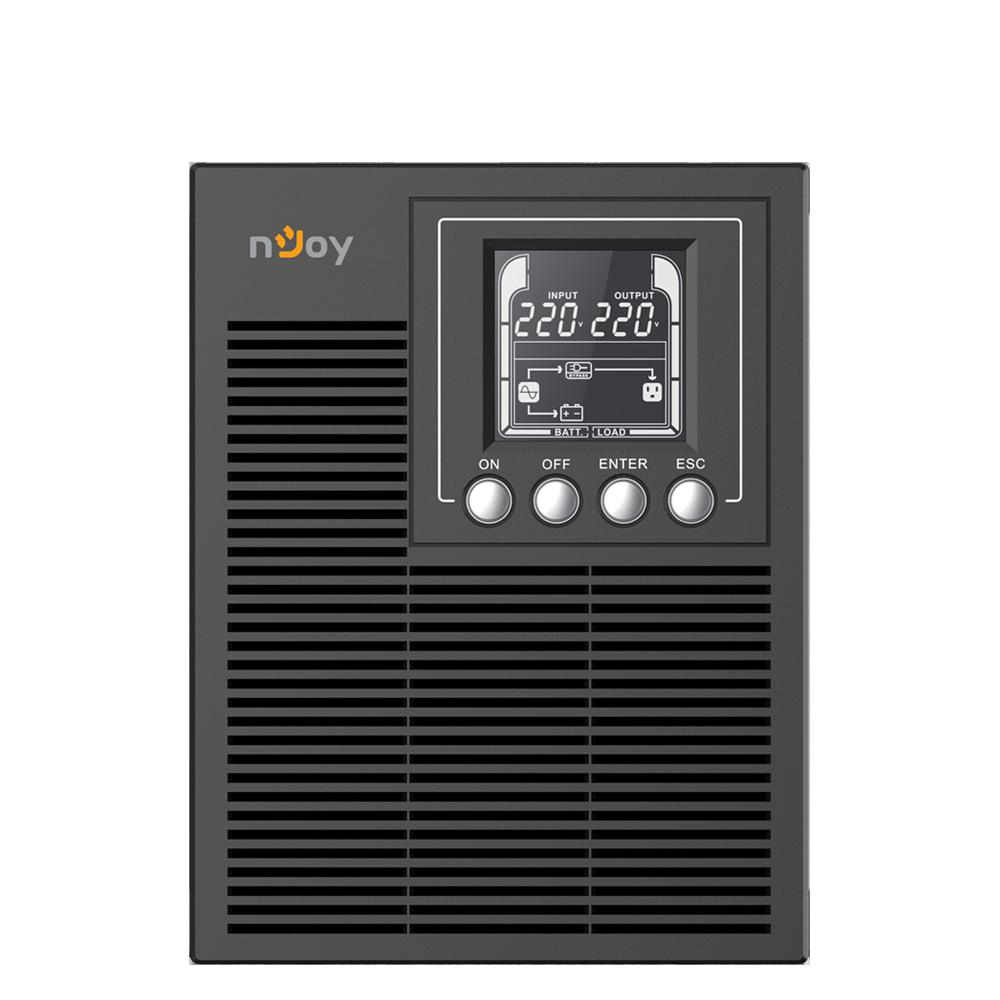

UPS NJOY ECHO PRO 1000

Typical backup time at full load: 1 min

Replacement battery cartridge: GP07122L

Typical backup time at half load: 6 min

Battery recharge time: 4 h

Number of batteries supported: 2

Compliance certificates: CE, RoHS

Schuko: 3

Control type: Buttons

Display type: LCD

LED indicators: Yes

Form factor: Tower

Built-in fan: Yes

Cooling type: Active

Response time: 4 ms

Input frequency: 50 - 60 Hz

Surge protection: Yes

Output frequency: 50/60 Hz

Number of input phases: 1

Number of output phases: 1

Auto-restart: Yes

Output power capacity: 1 kVA

UPS topology: Double-conversion (Online)

Crest factor: 3:1

Waveform: Pure sine

Input operation voltage (min): 80 V

Output operation voltage (min): 208 V

Efficiency: 85%

Efficiency (On-line mode): 88%

Efficiency (ECO mode): 96%

Total Harmonic Distortion (THD) (linear load): 3%

Total Harmonic Distortion (THD) (non-linear load): 5%

Input operation voltage (max): 300 V

Output operation voltage (max): 240 V

Output power factor: 0.8

Emergency Power Off (EPO): Yes

Output power: 800 W

Surge energy rating: 220 J

Noise level: 40 dB

Numar baterii: 2

Tip: Online

Putere: 1000 VA

Tensiune de alimentare: 220-240 VAC

Interfata: RS232

Timp de transfer: 4 ms

Baterie: Sigilata si protejata impotriva scurgerilor

Altele: Sinusoida pura

Capacitate baterie: GP07122L

Incarcare: 800 W

Timp Mediu De Functionare: 6 minute - 50% incarcare
1 minute - 100% incarcare

Dimensiuni: 327 x 190 x 140 mm

Greutate: 9.13 Kg

Products per master (outer) case: 1 pc(s)

Master (outer) case net weight: 9.13 kg

Master (outer) case width: 217 mm

Master (outer) case length: 440 mm

Master (outer) case height: 277 mm

Master (outer) case gross weight: 10.1 kg

Operating temperature (T-T): 0 - 40 °C

Operating relative humidity (H-H): 0 - 90%

Batteries included: Yes

Package type: Box

Package width: 440 mm

Package depth: 217 mm

Package height: 277 mm

Package weight: 10.1 kg

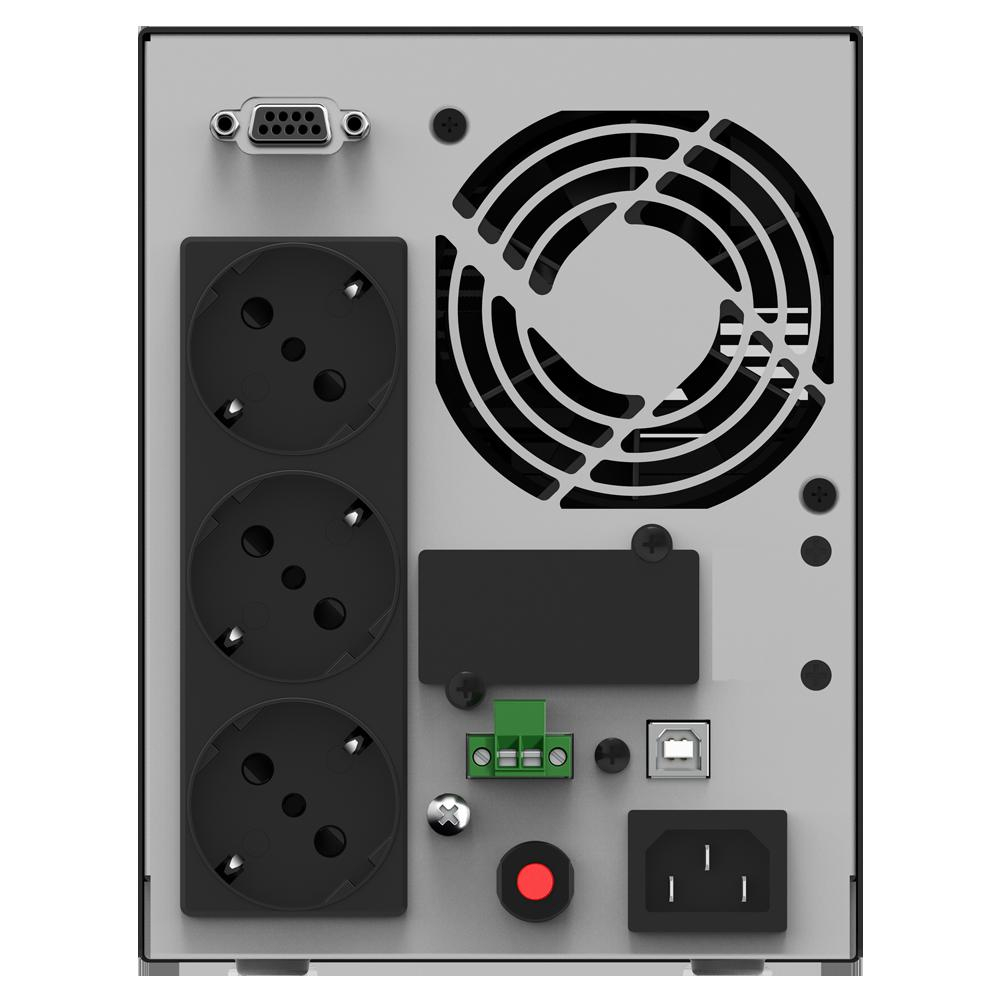

AC outlet types: Type F

Serial interface type: RS-232

AC outlets quantity: 3 AC outlet(s)

USB port type: USB Type-B

Serial interface: Yes

RS-232 ports: 1

USB 2.0 ports quantity: 1

Protectie supratensiune: Da

Protectie Scurt-Circuit: Da

Protectie supraincarcare: Da

Sustainability compliance: Yes

Width: 140 mm

Height: 190 mm

Depth: 327 mm

Weight: 9.13 kg

Garantia Produsului: 36 luni
