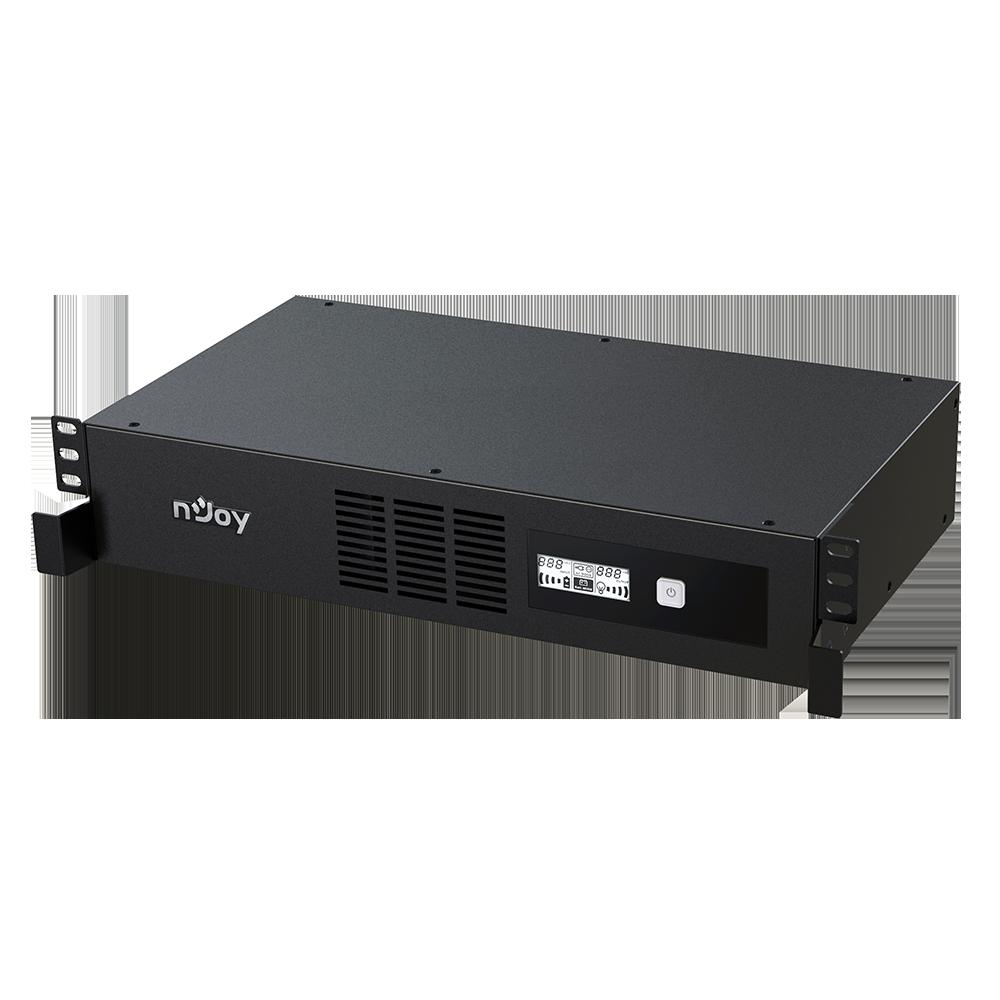

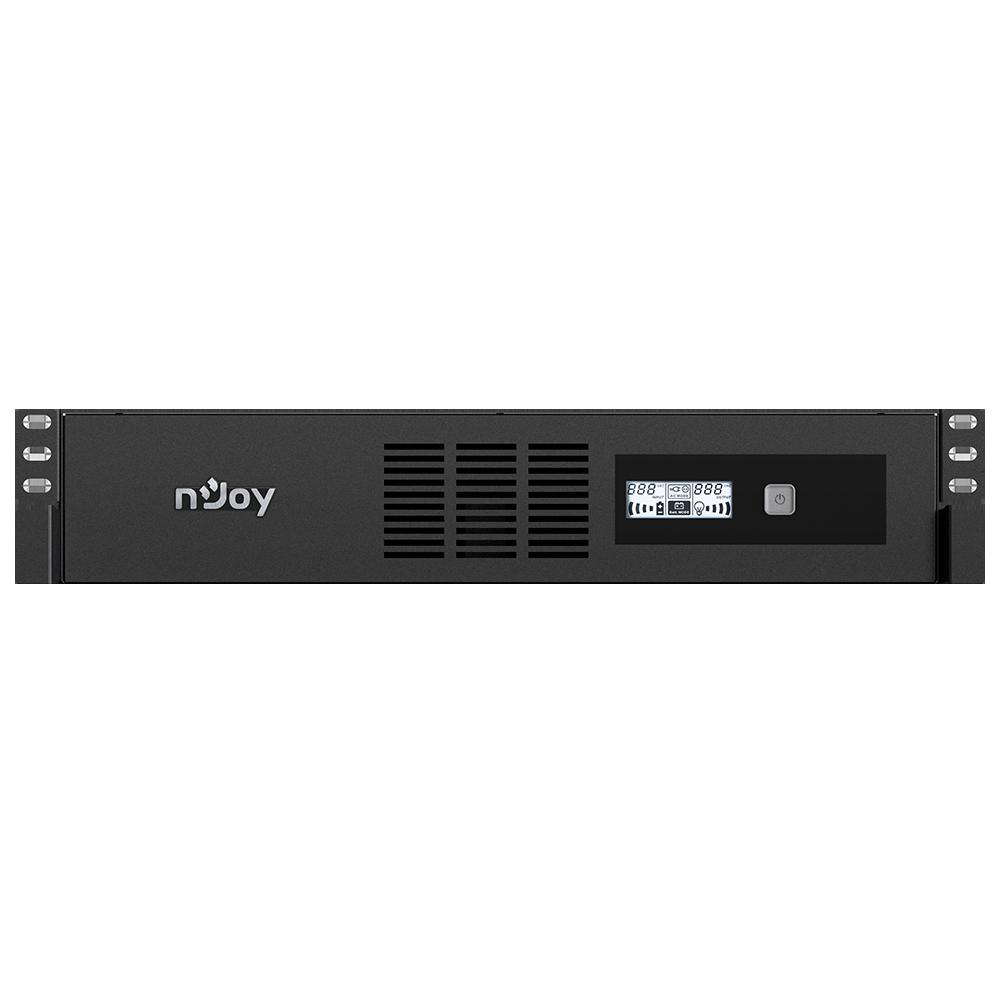

UPS NJOY Code 800

Cold start: Yes

Typical backup time at half load: 5.5 min

Replacement battery cartridge: GP09122L

Typical backup time at full load: 0.016 min

Number of batteries supported: 1

Battery recharge time: 6 h

Compliance certificates: CE, RoHS

IEC C13: 4

Display type: LCD

LED indicators: Yes

Form factor: Rackmount

Rack capacity: 2U

Auto-restart: Yes

Waveform: Sine

Response time: 10 ms

Input frequency: 50 - 60 Hz

UPS topology: Line-Interactive

Output frequency: 50/60 Hz

Number of input phases: 1

Number of output phases: 1

Output power factor: 0.6

Output operation voltage (max): 230 V

Output voltage regulation: -10 - 10%

Power protection features: Battery discharge, Overcharge, Overload

Output power capacity: 0.8 kVA

Output power: 480 W

Input operation voltage (min): 162 V

Input operation voltage (max): 290 V

Efficiency: 95%

Noise level: 40 dB

Power source type: AC

Automatic Voltage Regulation (AVR): Da

Putere: 800 VA

Timp de transfer: 4 ms

Greutate: 7.7 Kg

Baterie: GP09122L

Timp Mediu De Functionare: 15 min la 25% sarcina
5.5 min la 50% sarcina
20 sec la 75% sarcina
1 sec la 100% sarcina

Dimensiuni: 438 x 230 x 86 mm

Altele: Auto-Restart
Iesire sinusoidala simulata
Incarcare Off-mode
Functie Cold Start
Program de management inclus (ViewPower)

Incarcare: 480 W

Numar baterii: 1

Tip: Line-interactive

Tensiune de alimentare: 230 VAC

Montare in rack: Da

Display: Da

Interfata: USB

Master (outer) case width: 330 mm

Products per master (outer) case: 1 pc(s)

Master (outer) case net weight: 7.7 kg

Master (outer) case height: 211 mm

Master (outer) case gross weight: 9.2 kg

Master (outer) case length: 503 mm

Atentionari Baterie slaba: Da

Atentionari Supratensiune: Da

Atentionari Supraincarcare: Da

Operating temperature (T-T): 0 - 40 °C

Operating relative humidity (H-H): 0 - 90%

Batteries included: Yes

Package type: Box

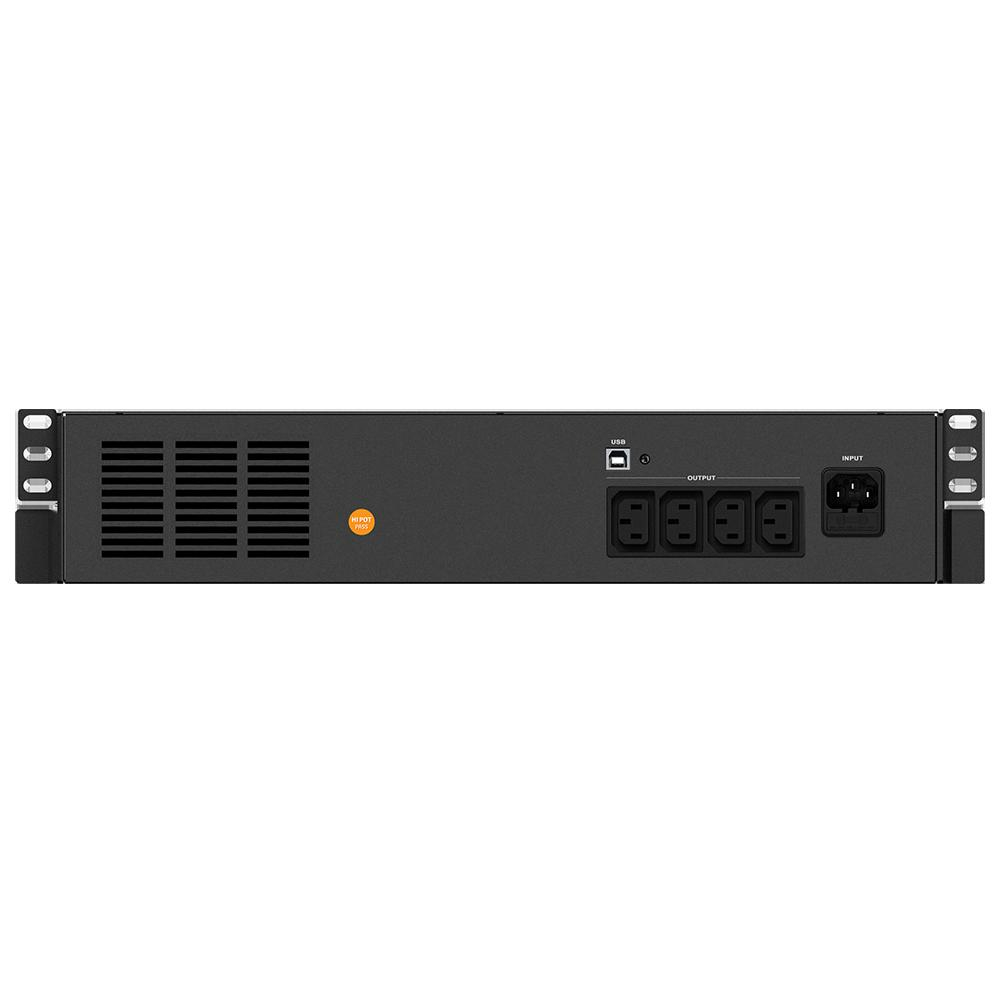

AC outlets quantity: 4 AC outlet(s)

USB 2.0 ports quantity: 1

AC outlet types: C13 coupler

Power plug: C14 coupler

USB port type: USB Type-B

Sustainability compliance: Yes

Width: 438 mm

Depth: 230 mm

Height: 86 mm

Weight: 7.7 kg

Garantia Produsului: 36 luni
