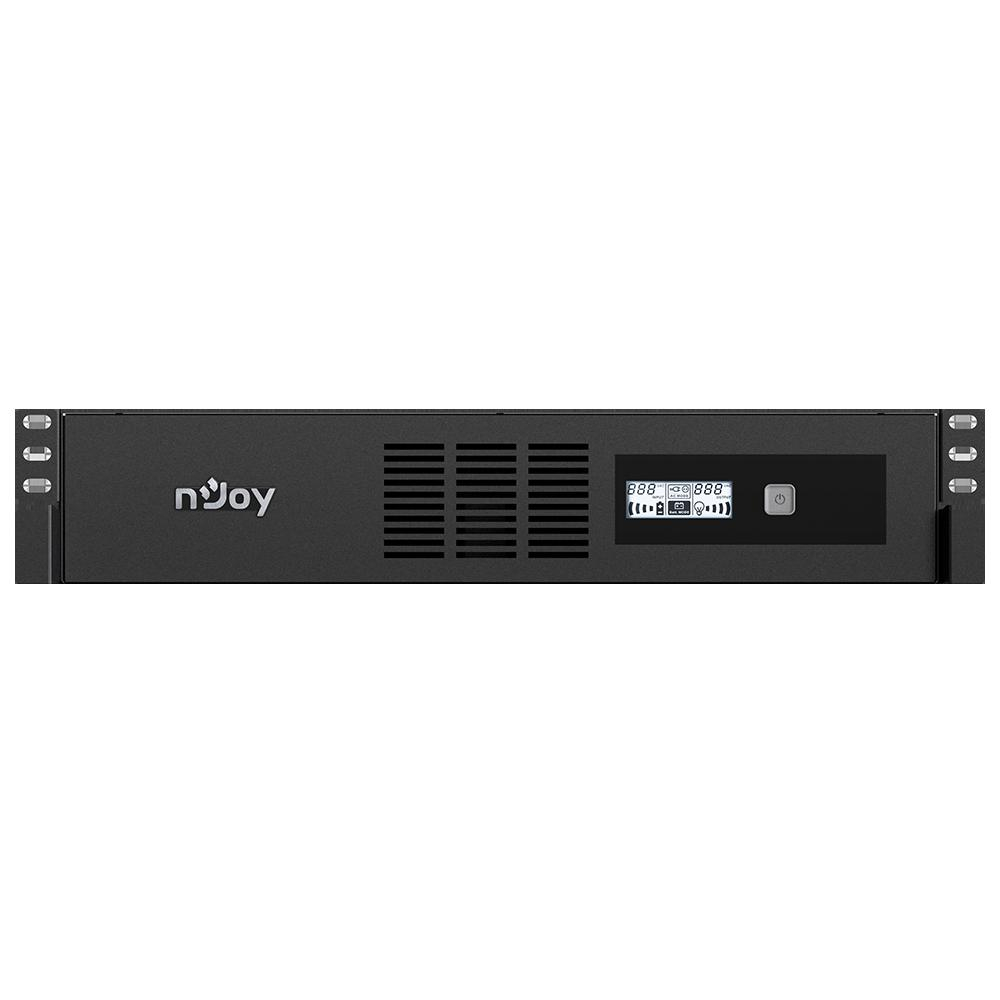

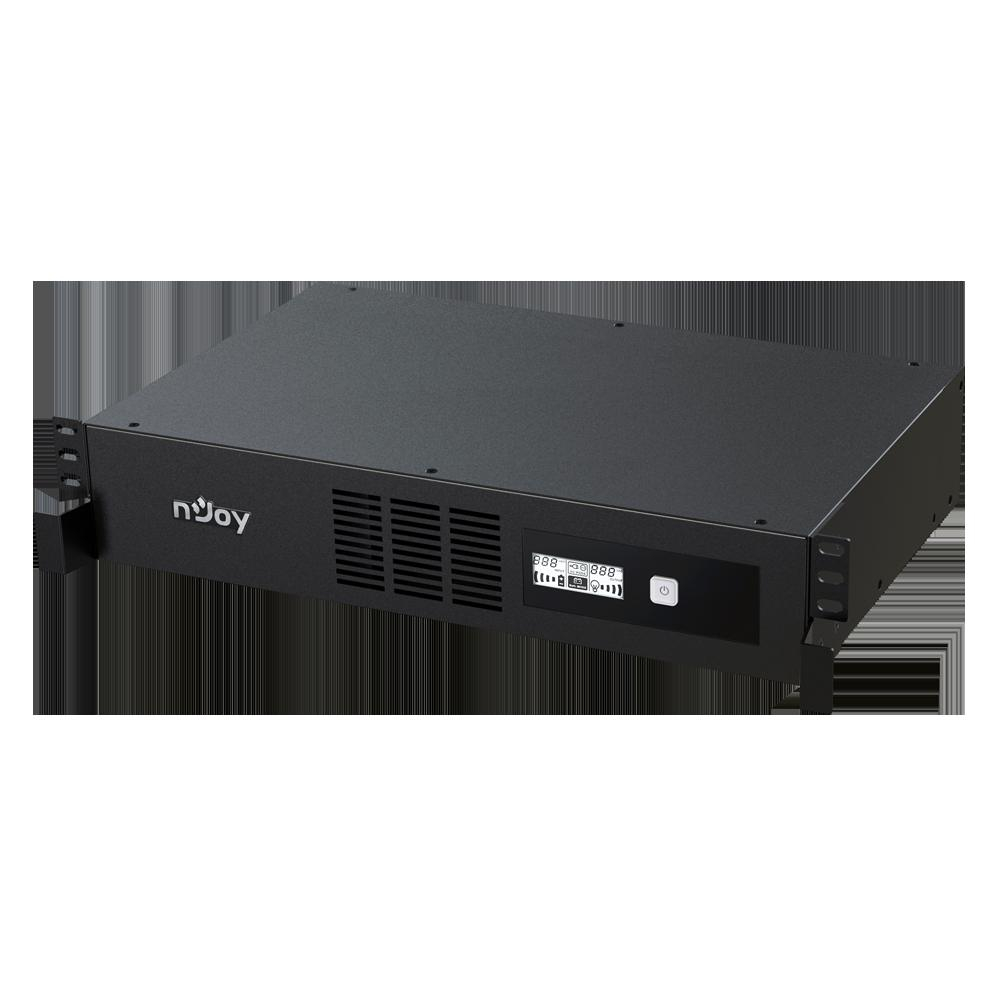

UPS NJOY CODE 1000

Cold start: Yes

Replacement battery cartridge: GP07122L

Typical backup time at full load: 0.47 min

Typical backup time at half load: 9.5 min

Number of batteries supported: 2

Battery recharge time: 6 h

Compliance certificates: CE, RoHS

IEC C13: 8

Display type: LCD

LED indicators: Yes

Form factor: Rackmount

Rack capacity: 2U

Auto-restart: Yes

Output power capacity: 1 kVA

Output power: 600 W

Output operation voltage (max): 230 V

Output voltage regulation: -10 - 10%

Power protection features: Battery discharge, Overcharge, Overload

Input operation voltage (min): 162 V

Input operation voltage (max): 290 V

Waveform: Sine

UPS topology: Line-Interactive

Number of input phases: 1

Number of output phases: 1

Output power factor: 0.6

Response time: 10 ms

Input frequency: 50 - 60 Hz

Noise level: 40 dB

Automatic Voltage Regulation (AVR): Da

Tip: Line-interactive

Tensiune de alimentare: 230 VAC

Numar baterii: 2

Incarcare: 600 W

Putere: 1000 VA

Timp de transfer: 4 ms

Baterie: GP07122L

Altele: Auto-Restart
Iesire sinusoidala simulata
Incarcare Off-mode
Functie Cold Start
Program de management inclus (ViewPower)

Dimensiuni: 438 x 300 x 86 mm

Timp Mediu De Functionare: 20 min la 25% sarcina
9.5 min la 50% sarcina
3.4 min la 75% sarcina
28 sec la 100% sarcina

Interfata: USB

Greutate: 11.3 kg

Montare in rack: Da

Display: Da

Master (outer) case net weight: 11.3 kg

Master (outer) case width: 468 mm

Master (outer) case length: 394 mm

Master (outer) case gross weight: 13 kg

Products per master (outer) case: 1 pc(s)

Master (outer) case height: 201 mm

Atentionari Baterie slaba: Da

Atentionari Supratensiune: Da

Atentionari Supraincarcare: Da

Operating relative humidity (H-H): 0 - 90%

Operating temperature (T-T): 0 - 40 °C

Batteries included: Yes

Package type: Box

USB 2.0 ports quantity: 1

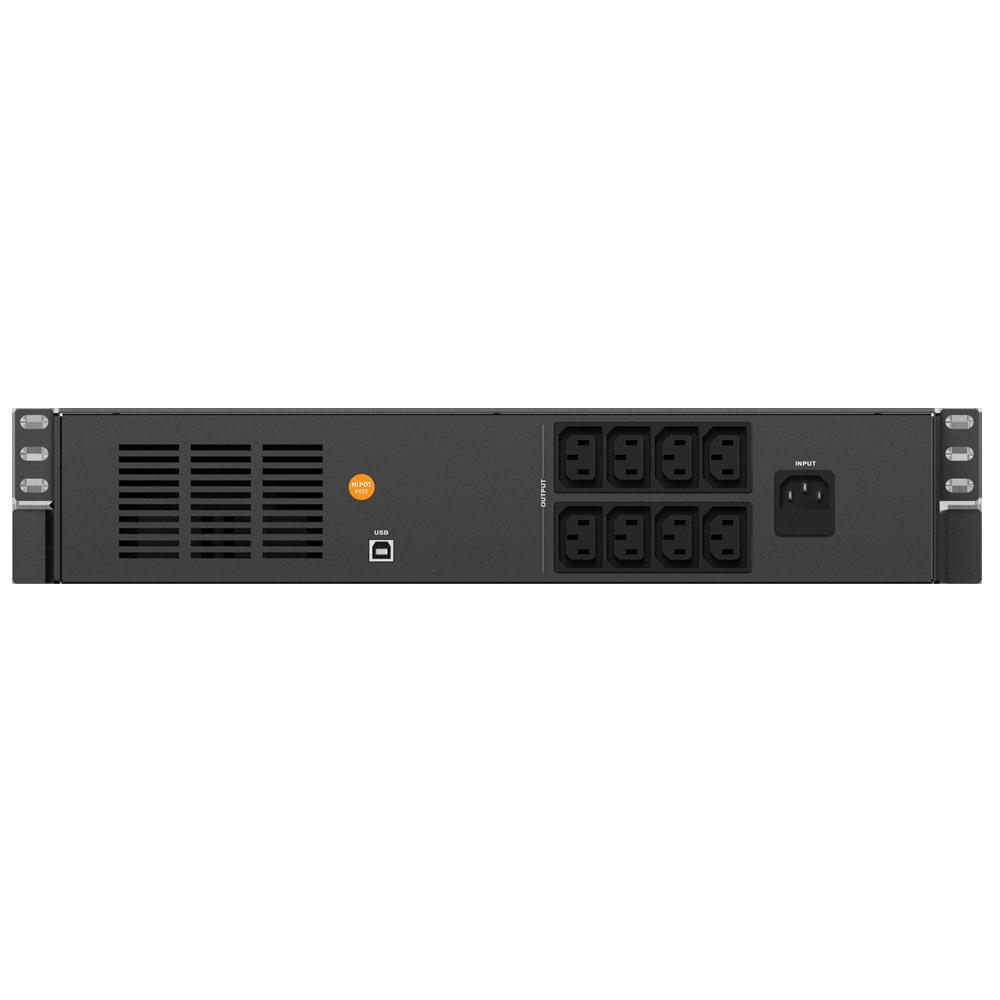

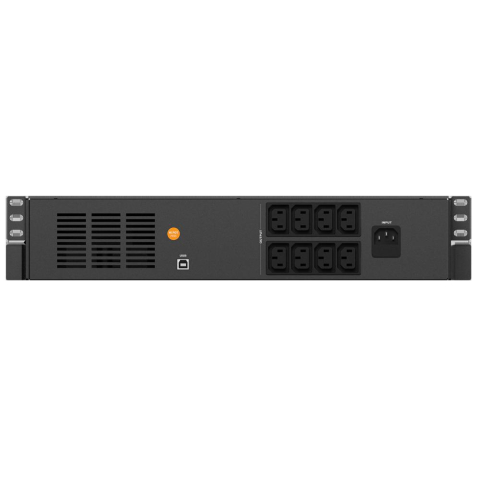

AC outlet types: C13 coupler

Power plug: C14 coupler

USB port type: USB Type-B

AC outlets quantity: 8 AC outlet(s)

Sustainability compliance: Yes

Width: 438 mm

Height: 86 mm

Depth: 300 mm

Weight: 11.3 kg

Garantia Produsului: 36 luni
