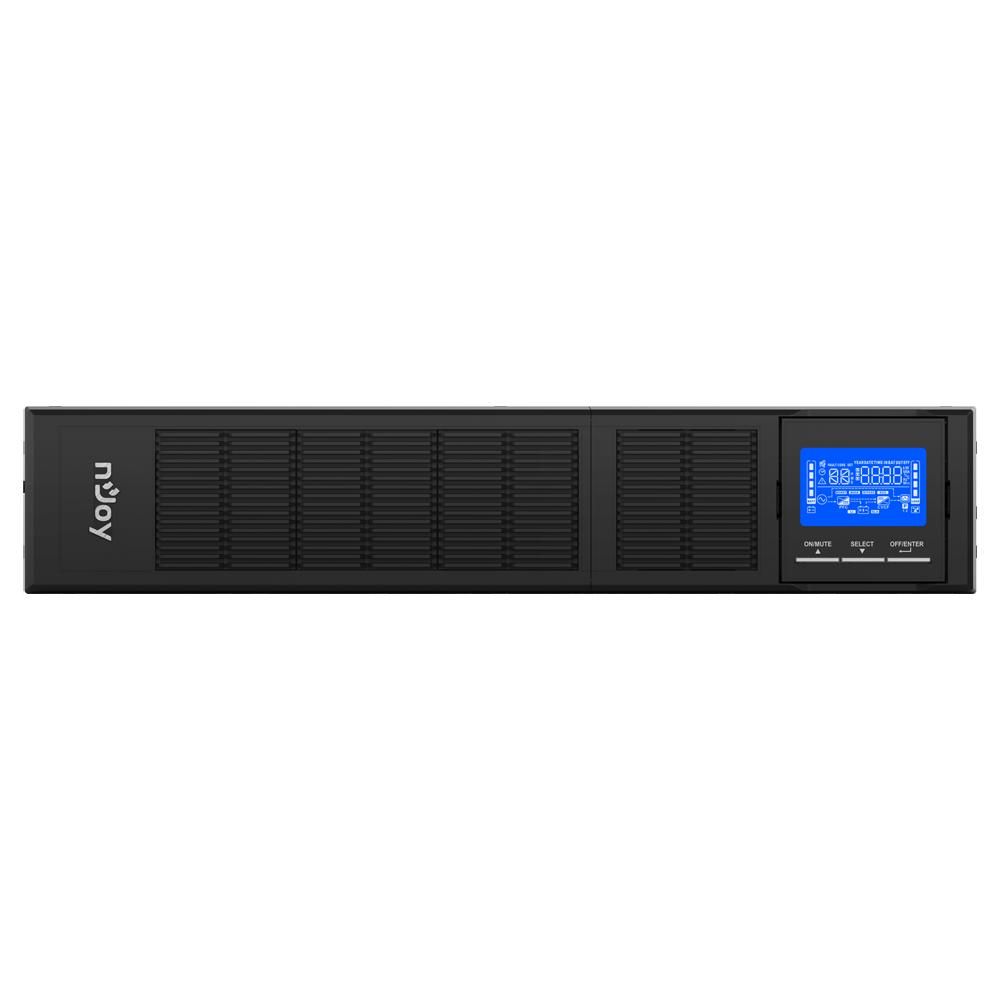

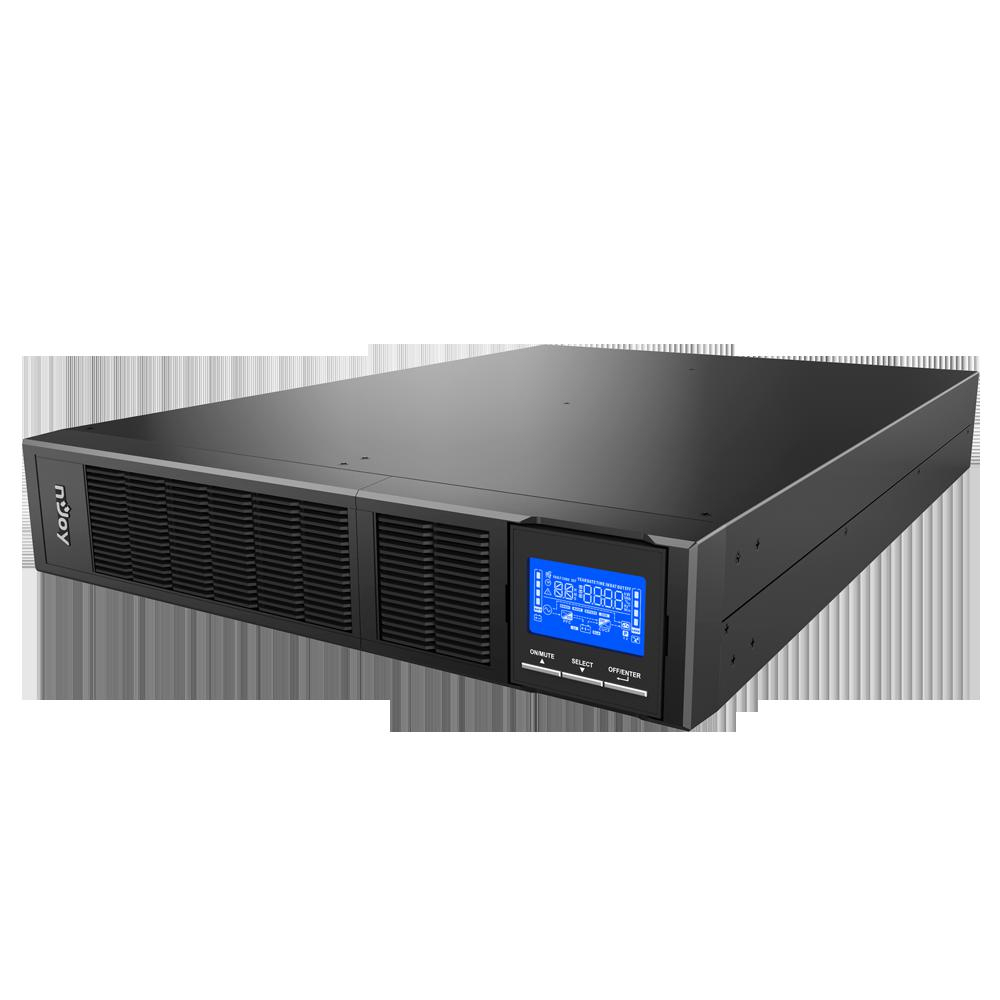

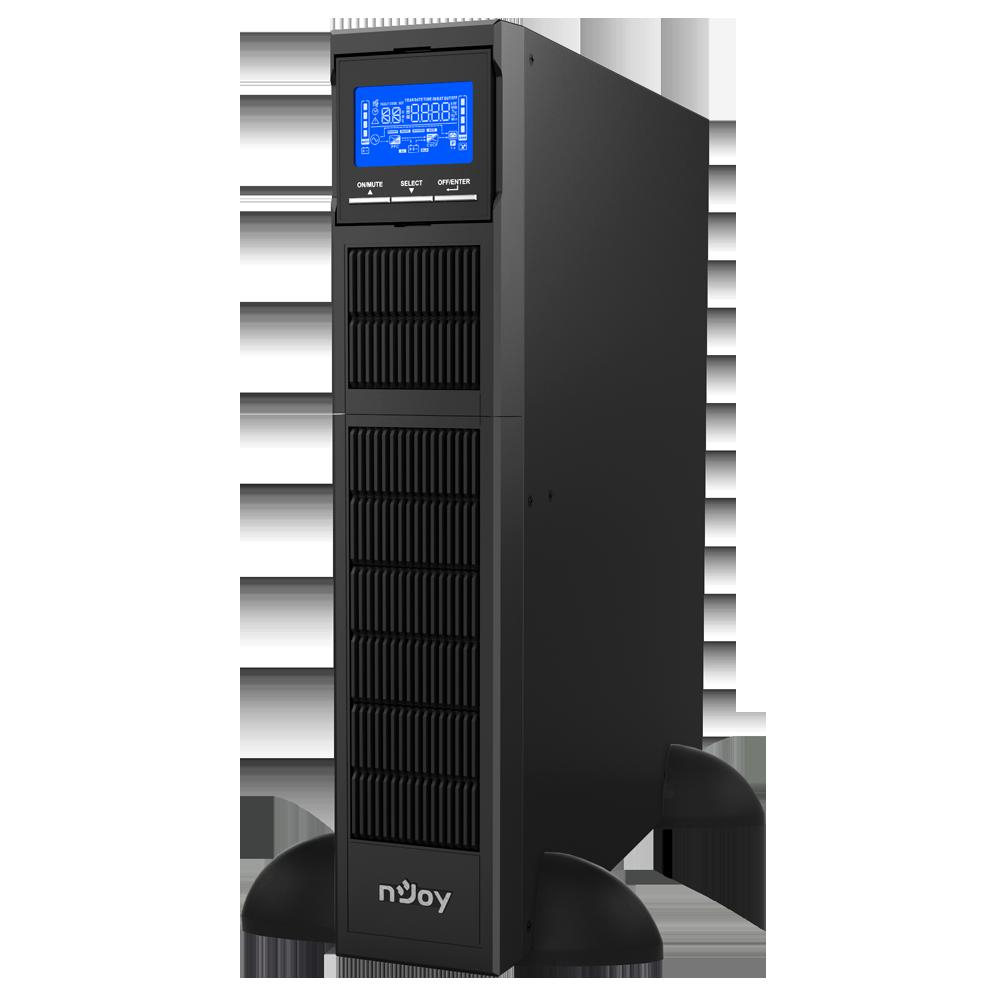

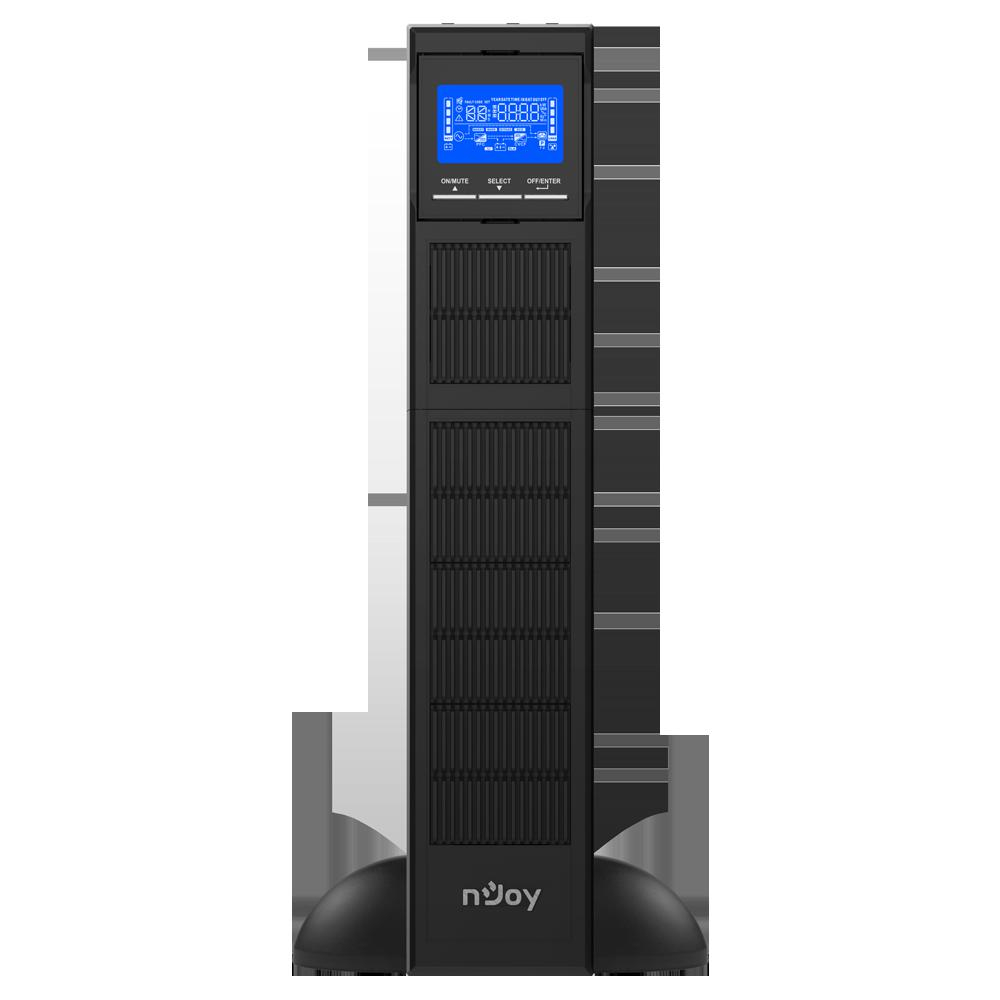

UPS NJOY BALDER 3000 ON-LINE 3000W

Hot-swap battery: Yes

Cold start: Yes

Typical backup time at full load: 3 min

Typical backup time at half load: 11 min

Battery recharge time: 3 h

Number of batteries supported: 6

Certification: CE, RoHS

IEC C19: 1

IEC C13: 8

LED indicators: Yes

Display type: LCD

Control type: Buttons

Form factor: Rackmount/Tower

Rack capacity: 2U

Output power capacity: 3 kVA

Auto-restart: Yes

Surge protection: Yes

Number of input phases: 1

Input operation voltage (max): 300 V

Output power: 3000 W

Output operation voltage (max): 240 V

Emergency Power Off (EPO): Yes

Response time: 4 ms

UPS topology: Double-conversion (Online)

Input frequency: 40 - 70 Hz

Crest factor: 3:1

Waveform: Pure sine

Output operation voltage (min): 200 V

Input operation voltage (min): 110 V

Output frequency: 47/53 Hz

Surge energy rating: 624 J

Power factor: 0.99

Output voltage Total Harmonic Distortion (THD): 4%

Input current Total Harmonic Distortion (THD): 5%

Power protection features: Overcharge, Overdischarge, Overheating, Overload

Noise level: 50 dB

Capacitate baterie: 12V/9Ah

Tip: Online

Timp incarcare: 4 ore (90%)

Putere: 3000 VA

Numar baterii: 6

Interfata: USB
RS232

Caracteristici display: Mod AC, mod baterie, nivel incarcare, nivel baterie, tensiunea de intrare, tensiunea de iesire, suprasarcina, eroare, baterie descarcata

Baterie inlocuitoare: nJoy PW9123

Altele: Dubla conversie
Plaja larga de tensiuni acceptate
Eficienta impresionanta de pana la 96%

Incarcare: 3 kW

Timp Mediu De Functionare: 25% incarcare - 26 min
50% incarcare - 11 min
100% incarcare - 3 min

Dimensiuni: 630 x 438 x 88 mm

Greutate: 27.5 Kg

Display: Da

Master (outer) case net weight: 27.5 kg

Master (outer) case gross weight: 29.5 kg

Master (outer) case width: 565 mm

Master (outer) case length: 700 mm

Master (outer) case height: 200 mm

Products per master (outer) case: 1 pc(s)

Atentionari Mod baterie: Da

Atentionari Eroare: Da

Atentionari Baterie slaba: Da

Atentionari Supraincarcare: Da

Management: Da

Storage temperature (T-T): -15 - 45 °C

Operating temperature (T-T): 0 - 40 °C

Operating relative humidity (H-H): 0 - 95%

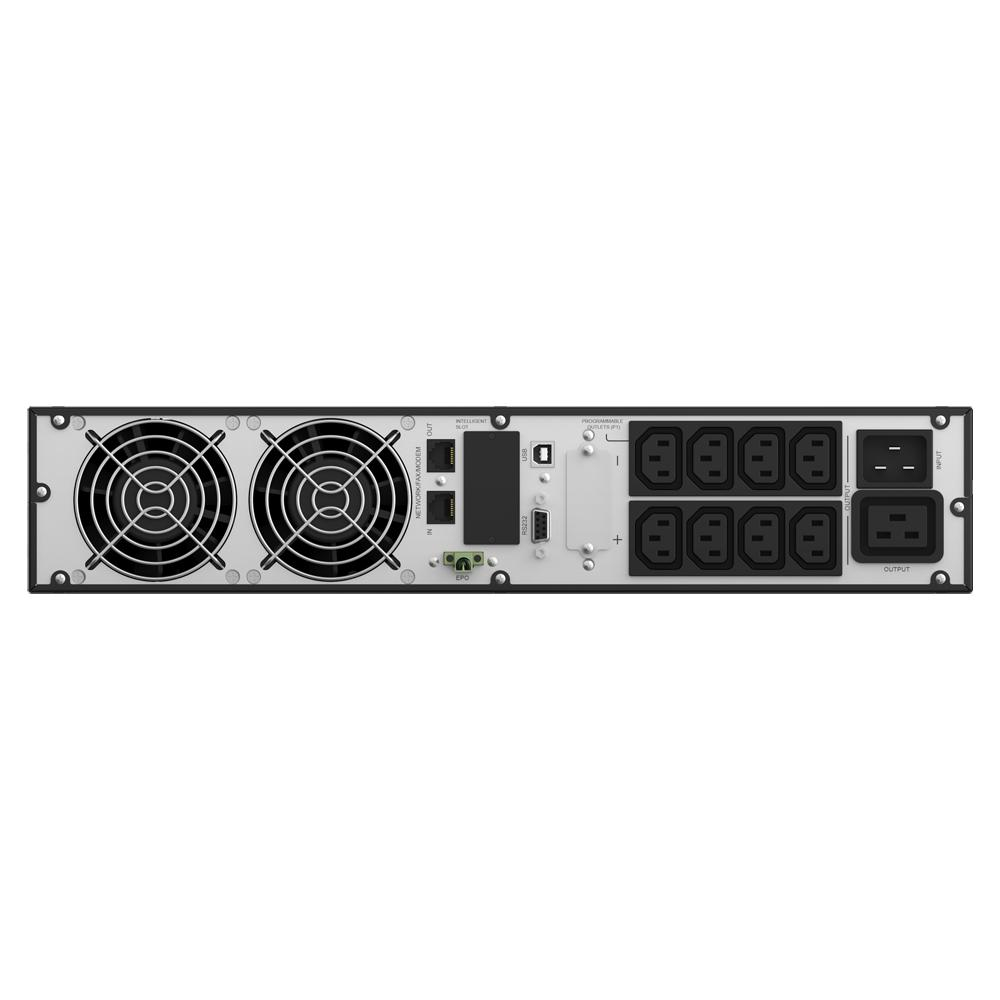

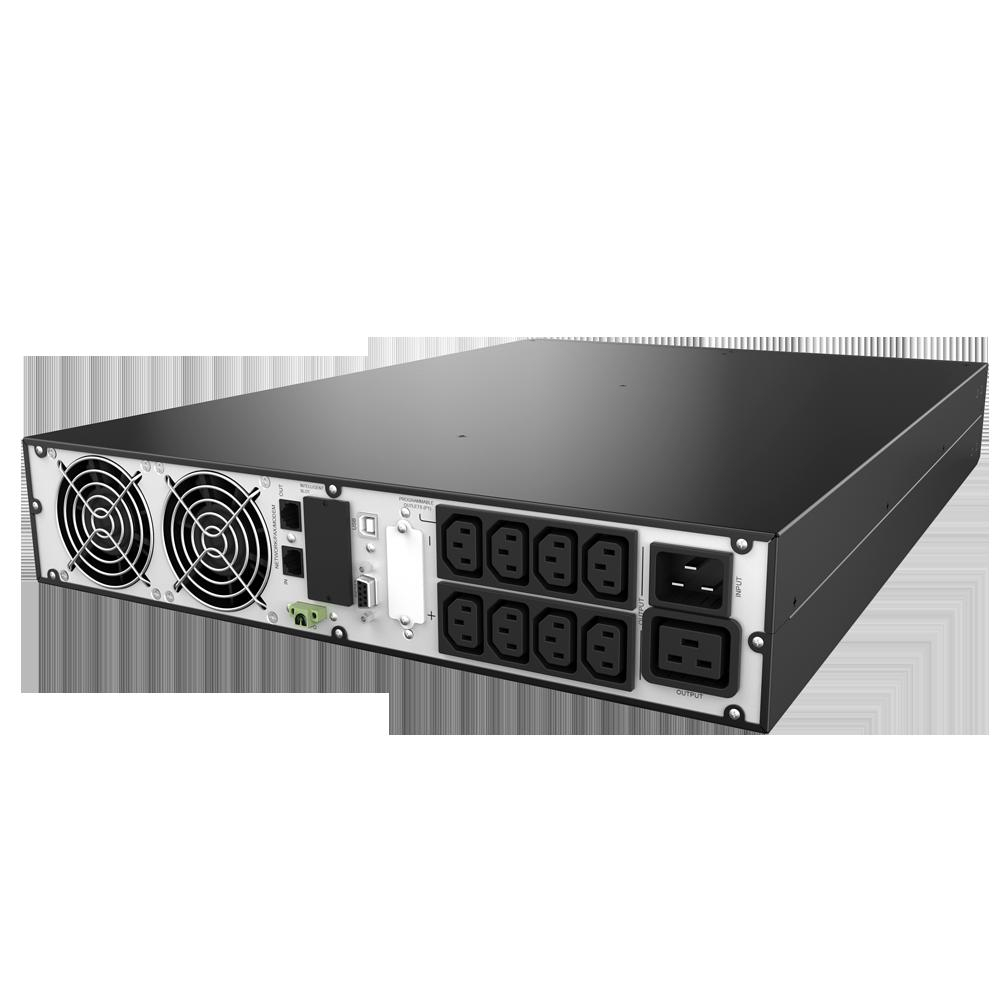

AC outlets quantity: 9 AC outlet(s)

RS-232 ports: 1

AC outlet types: C13 coupler, C19 coupler

Power plug: C20 coupler

Modem (RJ-11) ports: 2

Protectie supratensiune: Da

Protectie supraincarcare: Da

Protectie la descarcare: Da

Width: 438 mm

Depth: 630 mm

Height: 88 mm

Weight: 27.5 kg

Garantia Produsului: 36 luni
