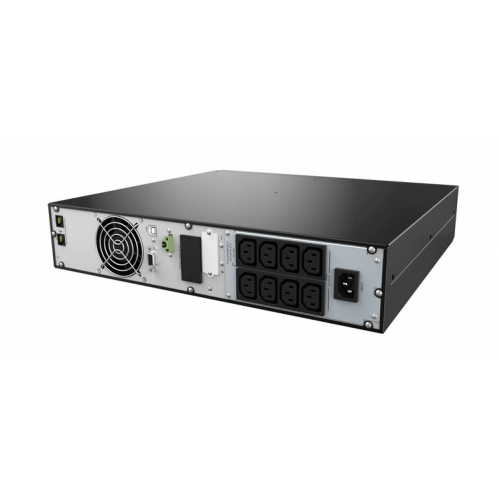

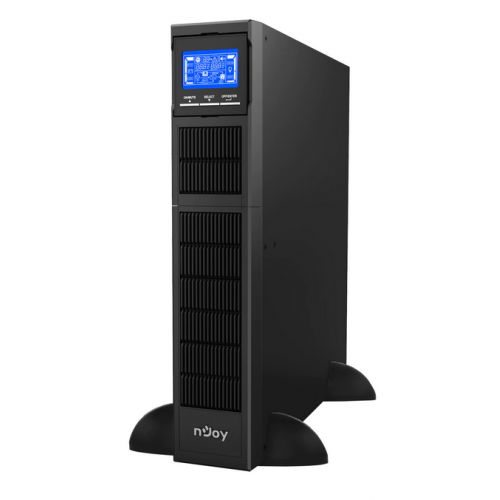

UPS NJOY Balder 2000

Hot-swap battery: Yes

Cold start: Yes

Typical backup time at full load: 4 min

Typical backup time at half load: 13 min

Battery recharge time: 3 h

Number of batteries supported: 6

Certification: CE, RoHS

IEC C13: 8 x IEC-320 C13

LED indicators: Yes

Display type: LCD

Control type: Buttons

Form factor: Rackmount/Tower

Rack capacity: 2U

Auto-restart: Yes

UPS topology: Double-conversion (Online)

Input frequency: 40 - 70 Hz

Crest factor: 3:1

Waveform: Pure sine

Output operation voltage (min): 200 V

Input operation voltage (min): 110 V

Output frequency: 47/53 Hz

Surge energy rating: 624 J

Power factor: 0.99

Output voltage Total Harmonic Distortion (THD): 4%

Input current Total Harmonic Distortion (THD): 5%

Power protection features: Overcharge, Overdischarge, Overheating, Overload

Output power capacity: 2 kVA

Output power: 2000 W

Output operation voltage (max): 240 V

Emergency Power Off (EPO): Yes

Response time: 4 ms

Input operation voltage (max): 300 V

Noise level: 50 dB

Surge protection: Yes

Number of input phases: 1

Display: Da

Dimensiuni: 630 x 438 x 88 mm

Numar baterii: 6x CSB GP 1272

Timp Mediu De Functionare: 25% incarcare - 32 min
50% incarcare - 13 min
75% incarcare - 8 min
100% incarcare - 4 min

Tensiune de alimentare: 220/230/240 VAC

Tip: Online

Montare in rack: Da, 2U

Greutate: 23.3 kg

Putere: 2000 VA

Caracteristici display: UPS status, Load level, Battery level, Input/Output voltage, Discharge timer, and Fault conditions

Interfata: RS232 / USB / Intelligent Port (not included in the package)

Baterie: Sealed and leak proof maintenance

Baterie inlocuitoare: Cabinet de baterii extern

Master (outer) case height: 200 mm

Products per master (outer) case: 1 pc(s)

Master (outer) case width: 565 mm

Master (outer) case length: 700 mm

Master (outer) case net weight: 23.3 kg

Master (outer) case gross weight: 25.5 kg

Alarme sonore: Da

Operating temperature (T-T): 0 - 40 °C

Operating relative humidity (H-H): 0 - 95%

AC outlet types: C13 coupler

RS-232 ports: 1

Power plug: C20 coupler

AC outlets quantity: 8 AC outlet(s)

Modem (RJ-11) ports: 2

Protectie supratensiune: Da

Protectie Scurt-Circuit: Da

Protectie supraincarcare: Da

Protectie la descarcare: Da

Width: 438 mm

Depth: 630 mm

Height: 88 mm

Weight: 23.3 kg

Garantia Produsului: 36 luni
