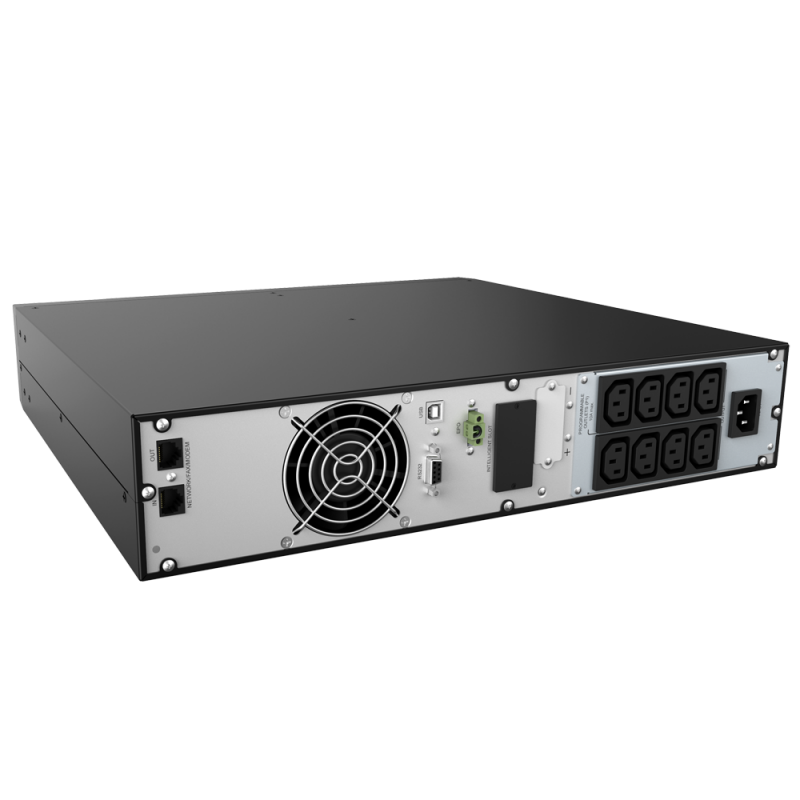

UPS NJOY Balder 1000, 1000VA

Hot-swap battery: Yes

Cold start: Yes

Typical backup time at full load: 4 min

Typical backup time at half load: 13 min

Battery recharge time: 3 h

Number of batteries supported: 3

Certification: CE, RoHS

IEC C13: 8 x IEC-320 C13

LED indicators: Yes

Form factor: Rackmount/Tower

Display type: LCD

Control type: Buttons

Rack capacity: 2U

Auto-restart: Yes

Output power capacity: 1 kVA

UPS topology: Double-conversion (Online)

Input frequency: 40 - 70 Hz

Crest factor: 3:1

Waveform: Pure sine

Output operation voltage (min): 200 V

Output power: 1000 W

Input operation voltage (min): 110 V

Output frequency: 47/53 Hz

Surge energy rating: 624 J

Power factor: 0.99

Output voltage Total Harmonic Distortion (THD): 4%

Input current Total Harmonic Distortion (THD): 5%

Power protection features: Overcharge, Overdischarge, Overheating, Overload

Output operation voltage (max): 240 V

Emergency Power Off (EPO): Yes

Response time: 4 ms

Surge protection: Yes

Number of input phases: 1

Noise level: 50 dB

Input operation voltage (max): 300 V

Display: Da

Tensiune de alimentare: 220/230/240 VAC

Tip: Online

Montare in rack: Da, 2U

Putere: 1000 VA

Greutate: 14.1 kg

Caracteristici display: UPS status, Load level, Battery level, Input/Output voltage, Discharge timer, and Fault conditions

Interfata: RS232 / USB / Intelligent Port (not included in the package)

Baterie: Sealed and leak proof maintenance

Numar baterii: 3x CSB GP 1272

Baterie inlocuitoare: Cabinet de baterii extern

Timp Mediu De Functionare: 25% incarcare - 31 min
50% incarcare - 13 min
75% incarcare - 8 min
100% incarcare - 4 min

Dimensiuni: 410 x 438 x 88 mm

Master (outer) case width: 500 mm

Master (outer) case height: 180 mm

Products per master (outer) case: 1 pc(s)

Master (outer) case net weight: 14.1 kg

Master (outer) case length: 560 mm

Master (outer) case gross weight: 16.1 kg

Alarme sonore: Da

Operating temperature (T-T): 0 - 40 °C

Operating relative humidity (H-H): 0 - 95%

Storage temperature (T-T): -15 - 45 °C

AC outlets quantity: 8 AC outlet(s)

RS-232 ports: 1

AC outlet types: C13 coupler

Power plug: C14 coupler

Modem (RJ-11) ports: 2

Protectie supratensiune: Da

Protectie Scurt-Circuit: Da

Protectie supraincarcare: Da

Protectie la descarcare: Da

Width: 438 mm

Weight: 14.1 kg

Height: 88 mm

Depth: 410 mm

Garantia Produsului: 36 luni
