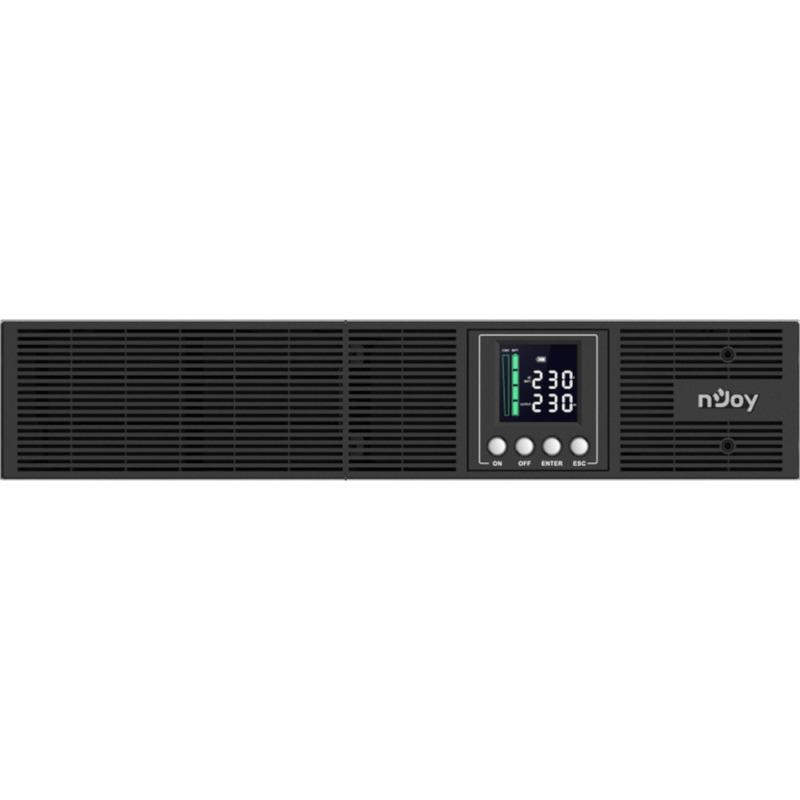

UPS NJOY Aster 3K

Cold start: Yes

Typical backup time at full load: 3.33 min

Typical backup time at half load: 11.01 min

Compliance certificates: CE, RoHS

IEC C13: 8 x IEC-320 C13

IEC C19: 1 x IEC-320 C19

LED indicators: Yes

Display type: LCD

Form factor: Rackmount/Tower

Rack capacity: 2U

Built-in fan: Yes

Cooling type: Active

Output frequency: 50/60 Hz

Number of input phases: 1

Number of output phases: 1

Input operation voltage (max): 300 V

ECO mode: Yes

Output power: 2700 W

Output operation voltage (max): 240 V

Emergency Power Off (EPO): Yes

Output power capacity: 3 kVA

Auto-restart: Yes

UPS topology: Double-conversion (Online)

Input frequency: 40 - 70 Hz

Crest factor: 3:1

Waveform: Pure sine

Input operation voltage (min): 80 V

Output operation voltage (min): 208 V

Output power factor: 0.9

Output voltage regulation: ±1%

Efficiency (ECO mode): 97%

Output voltage Total Harmonic Distortion (THD): 5%

Power protection features: Battery discharge, Overload

Noise level: 45 dB

Power source type: AC

Montare in rack: Da

Putere: 3000 VA

Caracteristici display: UPS status, Load level, Battery level, Input/Output voltage, Discharge timer, and Fault conditions

Baterie: Sealed and leak proof maintenance

Baterie inlocuitoare: Cabinet de baterii extern

Tip: Online

Tensiune de alimentare: 208/220/230/240 VAC

Interfata: HID USB / RS232 / EPO / SNMP

Numar baterii: 6 X GP09122L

Timp Mediu De Functionare: 25% incarcare - 25 min
50% incarcare - 11 min
75% incarcare - 5 min
100% incarcare - 3 min

Dimensiuni: 438 x 610 x 88 mm

Altele: ECO mode

Display: LCD

Greutate: 26 kg

Products per master (outer) case: 1 pc(s)

Master (outer) case height: 231 mm

Master (outer) case width: 550 mm

Master (outer) case length: 746 mm

Master (outer) case gross weight: 27.3 kg

Alarme sonore: Da

Operating temperature (T-T): 0 - 40 °C

Operating relative humidity (H-H): 0 - 90%

Storage temperature (T-T): -15 - 45 °C

Cables included: Input power cable, USB cable

Batteries included: Yes

Rack mount kit: Yes

AC outlet types: C13 coupler, C19 coupler

Power plug: C20 coupler

Serial interface type: RS-232

Serial ports quantity: 1

Serial interface: Yes

AC outlets quantity: 9 AC outlet(s)

Protectie supratensiune: Da

Protectie Scurt-Circuit: Da

Protectie supraincarcare: Da

Protectie la descarcare: Da

Weight: 2.6 kg

Depth: 438 mm

Width: 610 mm

Height: 88 mm

Garantia Produsului: 60 luni
