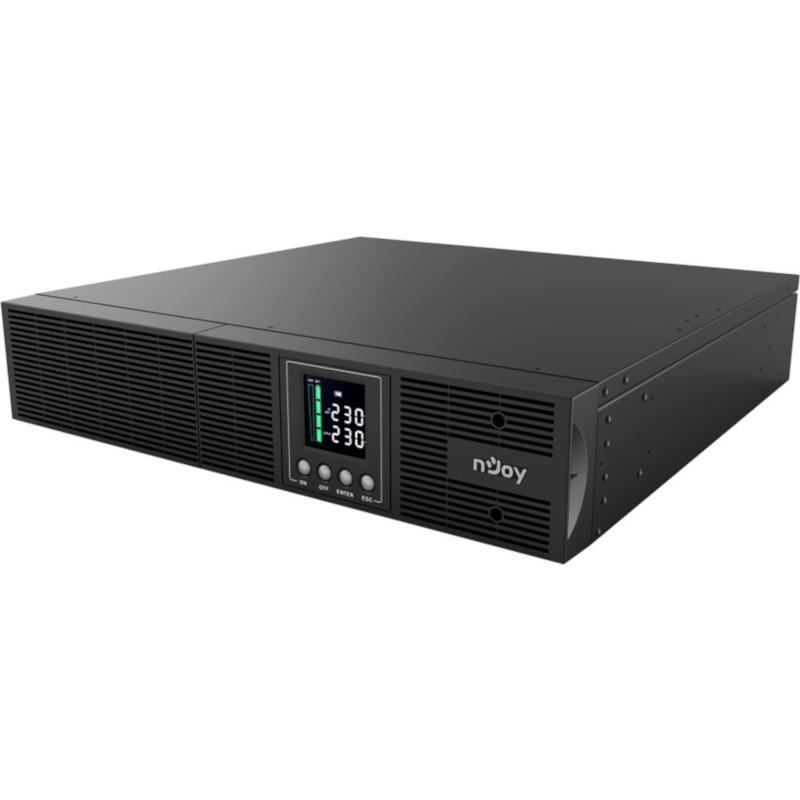

UPS NJOY Aster 2K

Cold start: Yes

Typical backup time at full load: 4.5 min

Typical backup time at half load: 12.06 min

Compliance certificates: CE, RoHS

IEC C13: 8

IEC C14: 1

LED indicators: Yes

Display type: LCD

Built-in fan: Yes

Form factor: Rackmount/Tower

Cooling type: Active

Rack capacity: 2U

Auto-restart: Yes

UPS topology: Double-conversion (Online)

Input frequency: 40 - 70 Hz

Crest factor: 3:1

Waveform: Pure sine

Input operation voltage (min): 80 V

Output operation voltage (min): 208 V

Output power: 1800 W

Output power factor: 0.9

Output power capacity: 2 kVA

Output voltage regulation: ±1%

Efficiency (ECO mode): 97%

Output voltage Total Harmonic Distortion (THD): 5%

Power protection features: Battery discharge, Overload

ECO mode: Yes

Number of input phases: 1

Number of output phases: 1

Input operation voltage (max): 300 V

Output operation voltage (max): 240 V

Emergency Power Off (EPO): Yes

Power source type: AC

Noise level: 50 dB

Tensiune de alimentare: 230 VAC

Putere: 2000 VA

Incarcare: 1,8 kW

Timp Mediu De Functionare: 12 minute 4 secunde - 50% incarcare
4 minute 30 secunde - 100% incarcare

Dimensiuni: 438 x 430 x 88 mm

Tip: Online

Master (outer) case gross weight: 24.5 kg

Master (outer) case height: 231 mm

Products per master (outer) case: 1 pc(s)

Master (outer) case width: 550 mm

Master (outer) case length: 746 mm

Atentionari Baterie slaba: Da

Atentionari Supratensiune: Da

Atentionari Supraincarcare: Da

Atentionari Mod baterie: Da

Storage temperature (T-T): -15 - 45 °C

Operating temperature (T-T): 0 - 40 °C

Operating relative humidity (H-H): 0 - 90%

Batteries included: Yes

Cables included: Input power cable, USB cable

Rack mount kit: Yes

Serial ports quantity: 1

AC outlet types: C13 coupler

Power plug: C14 coupler

Serial interface: Yes

AC outlets quantity: 8 AC outlet(s)

Serial interface type: RS-232

Depth: 438 mm

Width: 610 mm

Height: 88 mm

Weight: 23.1 kg

Garantia Produsului: 36 luni
